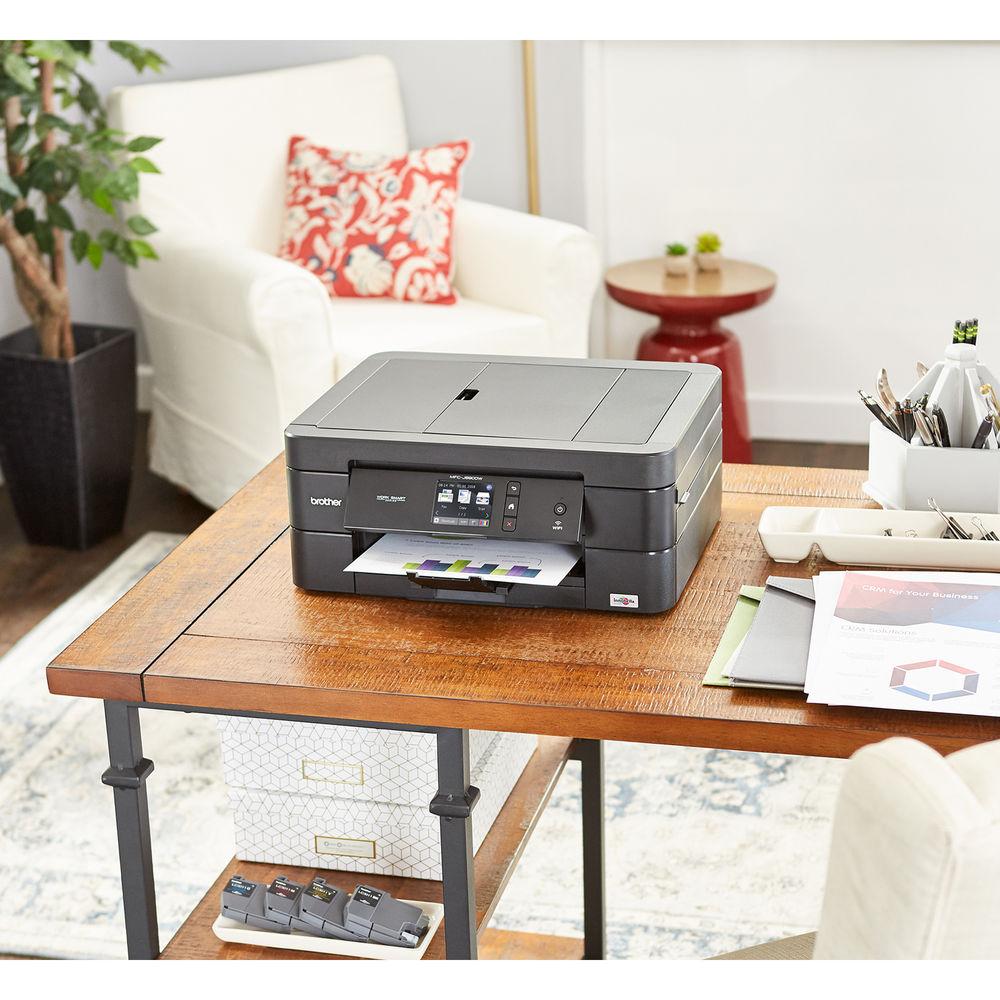

User Manual for Brother Work Smart Series MFC-J690DW All-In-One Inkjet Printer Click to enlarge the picture
Contents of the user manual for the Brother Work Smart Series MFC-J690DW All-In-One
- Product category: Inkjet Printers Brother
- Brand: Brother
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Brother Inkjet Printers
 |
User manual for the Brother Work Smart Series MFC-J690DW All-In-One contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Brother product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Brother user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Brother product will considerably shorten its lifespan!
|

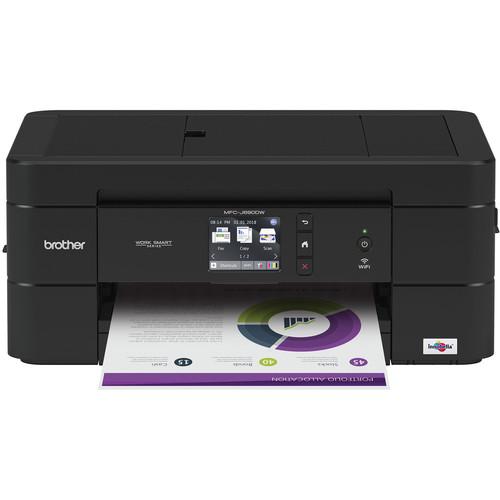

Product description Simple to connect and offering print, scan, copy, and fax capabilities in a single unit, the MFC-J690DW-series Work Smart All-in-One Inkjet Printer from Brother will fill a variety of critical roles in any home or home office. It offers good speed with 12 ppm printing in black and 10 ppm in color. It also will create detailed photographs and sharp text with a print resolution of 6000 x 1200 dpi. Along with this, automatic duplex and borderless printing are available at print sizes up to 8.5 x 11", though the unit can handle documents as large as 8.5 x 14".
Scanning and faxing are possible due to the integration of a flatbed and 20-sheet ADF that handles your documents and photos. The max optical resolution is 2400 x 1200 dpi for creating vivid, finely detailed images. Also, it has a 2.7" color touchscreen LCD for checking status and adjusting settings. Standard paper handling is possible via the 100-sheet input tray and a bypass feed is available for certain media.
Setting up the MFC-J690DW is simple with options for USB 2.0, Wi-Fi connectivity. Users will also be able to connect directly with their mobile devices using Wi-Fi Direct. In addition to this, a USB host port is available for plugging in portable flash drives and there is a vast array of mobile printing support. UPC: 012502649465 In the Box Brother Work Smart Series MFC-J690DW All-In-One Inkjet Printer LC3011BK Standard Black Ink Cartridge (~200 Pages) LC3011C Standard Cyan Ink Cartridge (~200 Pages) LC3011M Standard Magenta Ink Cartridge (~200 Pages) LC3011Y Standard Yellow Ink Cartridge (~200 Pages) Telephone Line Cord Setup CD-ROM Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Brother Work Smart Series MFC-J690DW All-In-One Inkjet Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrother MFC-J690DW Specs | Functions | Print, Scan, Copy, Fax | | | | Printing Technology | Inkjet | | Print Resolution | 1200 x 6000 dpi | | Print Speed | 12 ppm (Black)
10 ppm (Color) | | First Print Out Time | 8 Seconds (Black)
8.5 Seconds (Color) | | Duplex Printing | Yes | | Borderless Printing | 8.5 x 11" / 21.59 x 27.94 cm | | Color Type | Color | | Configuration | 4 x Cartridges | | Monthly Duty Cycle | 1000 Pages (Recommended) | | | | Type | Flatbed | | Image Sensor | 1 x Contact Image Sensor (CIS) | | Optical Resolution | Flatbed: 2400 dpi | | Maximum Interpolated Resolution | 19200 dpi | | Color Depth | 30-Bit (Internal)
24-Bit (External) | | Grayscale | 3 Levels | | Duplex Scanning | No | | Maximum Scan Area | Flatbed: 8.5 x 11.7" / 21.59 x 29.72 cm | | File Formats | JPEG, PDF, TIFF | | | | Copy Resolution | 1200 x 1200 dpi | | Copy Speed | 6 cpm (Black)
6 cpm (Color) | | Reduction/Enlargement | 25 to 400% | | Duplex Copying | No | | | | Modem Transmission Speed | 14.4 kb/s | | Fax Resolution | 230 x 196 dpi (Color)
230 x 196 dpi (Black) | | Fax Memory | 200 Pages | | Speed Dial Capacity | 100 Numbers | | | | Paper Handling | Input Tray 1, Input Tray 2, Automatic Document Feeder, Output Tray | | Media Sizes | Input Tray 1: 4 x 6 to 8.5 x 14" / 10.16 x 15.24 to 21.59 x 35.56 cm
ADF: 5.8 x 5.8 to 8.5 x 14" / 14.73 x 14.73 to 21.59 x 35.56 cm | | Media Weight | ADF: 25 to 36 gsm / 17 to 24 lb | | Paper Capacity | Input Tray 1: 100 Sheets
ADF: 20 Sheets
Output Tray: 50 Sheets | | Special Media Support | Envelopes | | | | Interface | USB Type-B, Wi-Fi | | Direct Printing | Apple AirPrint, Google Cloud Print, USB Port, Wi-Fi Direct | | Compatible Memory Cards | SD/HC/XC | | Operating System Support | Windows, macOS/OS X | | | | Control Panel | 2.7" / 6.9 cm Touchscreen | | Power Consumption | 18 W (Maximum)
3.5 W (Ready)
1.2 W (Sleep)
0.2 W (Off) | | Acoustics | 50 dBA (Pressure) | | Operating Temperature | 50 to 95°F / 10 to 35°C (Recommended) | | Operating Humidity | 20 to 80% (Recommended) | | Dimensions (W x H x D) | 16.2 x 8.9 x 23.0" / 41.1 x 22.6 x 58.4 cm (Maximum) | | Weight | 18.1 lb / 8.2 kg | | | | Package Weight | 19.5 lb | | Box Dimensions (LxWxH) | 18.5 x 17.5 x 10.0" |
