User Manual for Browning HD Security Trail Camera Click to enlarge the picture
Contents of the user manual for the Browning HD Security Trail Camera
- Product category: Trail/Wildlife Cameras Browning
- Brand: Browning
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Browning Trail/Wildlife Cameras
 |
User manual for the Browning HD Security Trail Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Browning product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Browning user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Browning product will considerably shorten its lifespan!
|

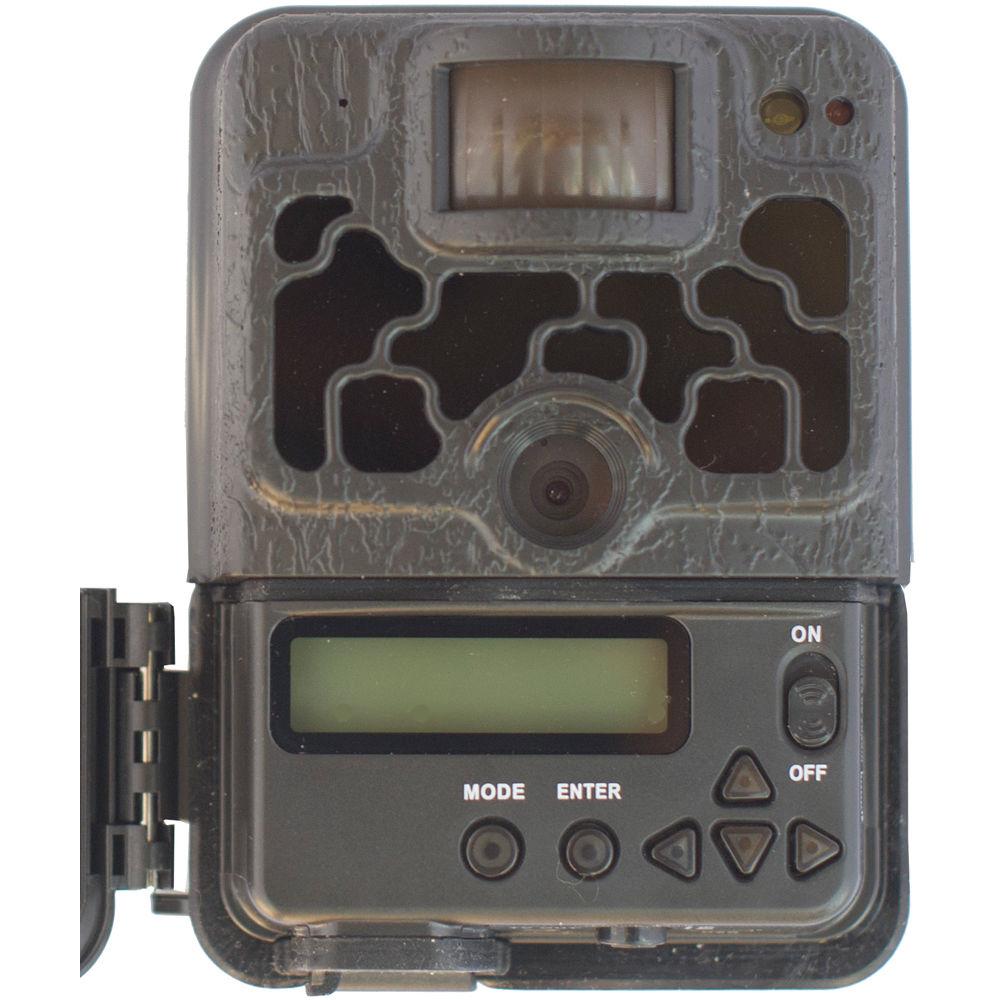

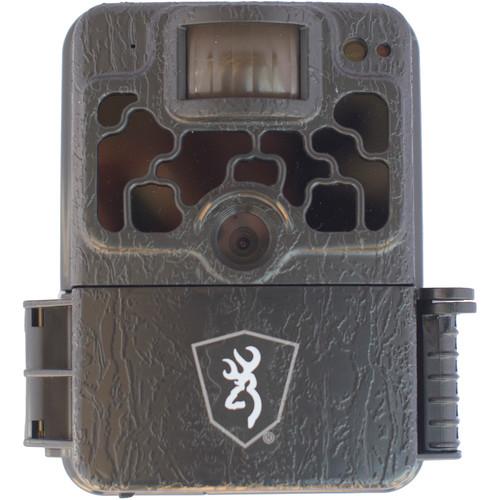

Product description Featuring a sleek, compact black casing, the HD Security Trail Camera from Browning is a dedicated camera designed to capture photos and videos of moving subjects in a discreet manner. It features a 10MP CMOS sensor that is capable of recording both still imagery and HD 1280 x 720 video. The integrated PIR motion sensor automatically triggers shooting with 0.67 seconds when a moving subject is detected within a 55' foot range, and when used at nighttime, the built-in "Night Vision" infrared LED flash will clearly record subjects within a 70' range without notice. Timelapse and Timelapse Plus modes can be used to set predefined shooting intervals throughout the day while Multi-Shot and Rapid Fire modes automatically record up to eight individual frames in quick succession to better ensure clear framing of moving subjects.
The HD Security camera can record both video and photos onto an SD/SDHC memory card up to 32GB, and also features TV out and USB ports to help streamline offloading and playing back footage. It runs on either six AA batteries or via an external power source that can be connected using the 12V power jack. A 1/4"-20 mounting socket permits attaching to a tripod or other stand or, alternatively, a 6'-long nylon strap can also be used to attach the camera to a tree or other post. - Imaging
-
- 10MP CMOS sensor records stills and HD 1280 x 720 videos
- Video recording times can range from 5 seconds to 2 minutes
- Built-in microphone records sound with movies
- The built-in fixed-focus lens renders subjects in focus from 3' to infinity and has a 55° field of view
- The infrared flash illuminates subjects at nighttime within a 70' range
- Motion-activated PIR (passive infrared) sensor detects subjects within a 55' range
- A 0.67-second triggering speed helps to ensure even fast-moving subjects are recorded
- 2.1-second picture recovery time
- Timelapse mode captures images at preset intervals of 5, 10, 15, or 30 seconds, as well as 1, 2, or 5 minutes
- Timelapse Plus mode uses the same interval settings with the addition of activating the motion sensor simultaneously to ensure not missing any subject movement
- Interval settings can be applied within a specified duration of 2, 3, or 4 hours, which can be set to start recording just after sunset, prior to sunrise, or during the daytime
- Multi-Shot mode will capture 1-8 frames in sequence when the camera is triggered, with 3 second intervals between frames
- Rapid Fire mode capture up to 8 sequential frames with 0.3 second intervals
- Programmable picture delay setting between 5 seconds and 60 minutes
- A motion test aids in aiming the camera, and when motion is detected a red LED indicator will confirm motion is being detected within the frame
- An information bar can be embedded onto the bottom of each frame, and will display the time, date, temperature in °F or °C, and camera ID
- Physical Design
-
- Part of the Sub Micro Series, the camera is housed within a compact 4.5 x 3.25 x 2.5" case
- Controls are backlit for easier programming in low-light conditions
- Black finish is easily disguised for inconspicuous nighttime use
- One SD or SDHC memory card, up to 32GB capacity, can be used to record imagery
- Six AA batteries can be used as the internal power source or an external battery can be connected via the 12V power jack
- Small text display can be used to configure and confirm camera settings
- TV out and USB ports are incorporated into the design for easy playback

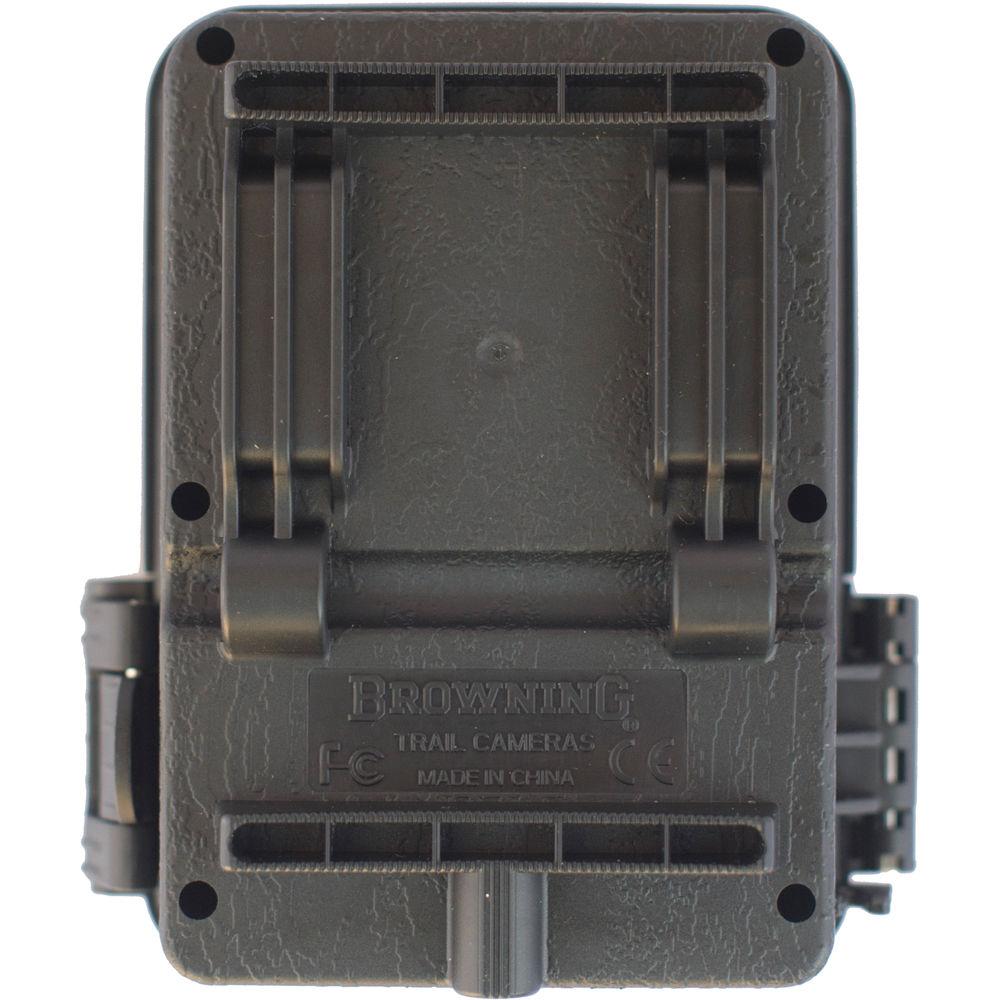

- A 1/4"-20 mount is built into the bottom of the case for attaching to tripods or other threaded mounts
- A 6'-long nylon strap is included for attaching to other surfaces, such as around a tree or fence post
- Dedicated padlock hole and security cable loops for using optional locking means to secure the trail cam
- Software
- The included Buck Watch Timelapse Viewer Plus software helps to manage the large amount of imagery that can be recorded by the trail cam by allowing for streamlined playback of a day's worth of content in only a few minutes. Single images can easily be located and saved and complete video files can be saved and exported for sharing. Single images can also be shown in a slideshow format. The software is compatible with Windows 7, Vista, or XP operating systems.
UPC: 853149004350 In the Box Browning HD Security Trail Camera BuckWatch Timelapse Viewer Software CD-ROM Nylon Strap (6' / 1.8 m) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Browning HD Security Trail Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrowning BTC 6HDS Specs | Camera Type | Time Lapse/Trail/Wildlife | | | | Image Resolution | 10 MP | | Angle of View | 55
