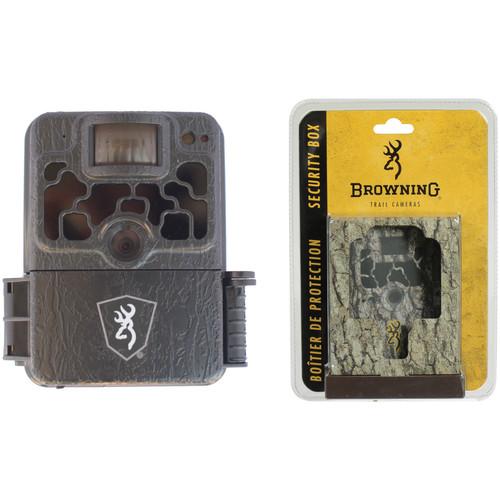

User Manual for Browning HD Security Trail Camera and Security Box Kit

• Product category: Trail/Wildlife Cameras Browning
• Brand: Browning
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Browning Trail/Wildlife Cameras

Product description

• Browning HD Security Trail Camera Featuring a sleek, compact black casing, the HD Security Trail Camera from Browning is a dedicated camera designed to capture photos and videos of moving subjects in a discreet manner. It features a 10MP CMOS sensor that is capable of recording both still imagery and HD 1280 x 720 video. The integrated PIR motion sensor automatically triggers shooting with 0.67 seconds when a moving subject is detected within a 55' foot range, and when used at nighttime, the built-in "Night Vision" infrared LED flash will clearly record subjects within a 70' range without notice. Timelapse and Timelapse Plus modes can be used to set predefined shooting intervals throughout the day while Multi-Shot and Rapid Fire modes automatically record up to eight individual frames in quick succession to better ensure clear framing of moving subjects.

  The HD Security camera can record both video and photos onto an SD/SDHC memory card up to 32GB, and also features TV out and USB ports to help streamline offloading and playing back footage. It runs on either six AA batteries or via an external power source that can be connected using the 12V power jack. A 1/4"-20 mounting socket permits attaching to a tripod or other stand or, alternatively, a 6'-long nylon strap can also be used to attach the camera to a tree or other post.
  Imaging
  • • 10MP CMOS sensor records stills and HD 1280 x 720 videos
    • Video recording times can range from 5 seconds to 2 minutes
    • Built-in microphone records sound with movies
    • The built-in fixed-focus lens renders subjects in focus from 3' to infinity and has a 55° field of view
    • The infrared flash illuminates subjects at nighttime within a 70' range
    • Motion-activated PIR (passive infrared) sensor detects subjects within a 55' range
    • A 0.67-second triggering speed helps to ensure even fast-moving subjects are recorded
    • 2.1-second picture recovery time
    • Timelapse mode captures images at preset intervals of 5, 10, 15, or 30 seconds, as well as 1, 2, or 5 minutes
    • Timelapse Plus mode uses the same interval settings with the addition of activating the motion sensor simultaneously to ensure not missing any subject movement
    • Interval settings can be applied within a specified duration of 2, 3, or 4 hours, which can be set to start recording just after sunset, prior to sunrise, or during the daytime
    • Multi-Shot mode will capture 1-8 frames in sequence when the camera is triggered, with 3 second intervals between frames
    • Rapid Fire mode capture up to 8 sequential frames with 0.3 second intervals
    • Programmable picture delay setting between 5 seconds and 60 minutes
    • A motion test aids in aiming the camera, and when motion is detected a red LED indicator will confirm motion is being detected within the frame
    • An information bar can be embedded onto the bottom of each frame, and will display the time, date, temperature in °F or °C, and camera ID
  Physical Design
  • • Part of the Sub Micro Series, the camera is housed within a compact 4.5 x 3.25 x 2.5" case
    • Controls are backlit for easier programming in low-light conditions
    • Black finish is easily disguised for inconspicuous nighttime use
    • One SD or SDHC memory card, up to 32GB capacity, can be used to record imagery
    • Six AA batteries can be used as the internal power source or an external battery can be connected via the 12V power jack
    • Small text display can be used to configure and confirm camera settings
    • TV out and USB ports are incorporated into the design for easy playback
    • A 1/4"-20 mount is built into the bottom of the case for attaching to tripods or other threaded mounts
    • A 6'-long nylon strap is included for attaching to other surfaces, such as around a tree or fence post
    • Dedicated padlock hole and security cable loops for using optional locking means to secure the trail cam
  Software
  • The included Buck Watch Timelapse Viewer Plus software helps to manage the large amount of imagery that can be recorded by the trail cam by allowing for streamlined playback of a day's worth of content in only a few minutes. Single images can easily be located and saved and complete video files can be saved and exported for sharing. Single images can also be shown in a slideshow format. The software is compatible with Windows 7, Vista, or XP operating systems.
  UPC: 853149004350
• Browning Trail Camera Security Box for Spec Ops/Recon Force/Command Ops Cameras Protect your Spec Ops, Recon Force, or Command Ops camera while it's left unattended in the field for days, weeks, or months with the Browning Trail Camera Security Box. Made of durable and strong steel, it attaches to a tree and virtually disappears thanks to its woodland camouflage exterior so it won't attract undue attention from game or passersby. With your camera installed in the box, you can lock it using a standard padlock of your choice. To make sure it doesn't get stolen, the box has mounting holes on the back plate so it can be screwed or bolted in place or use the holes on the side to temporarily secure it to a tree trunk using a cable-type lock like a Master Lock Python. This model is specifically designed for all Spec Ops, Recon Force, and Command Ops cameras—it is not compatible with Defender camera models. UPC: 853149004039

• HD Security Trail Camera suuetrbeufdusxcefaydxuqavrwztrd
• BuckWatch Timelapse Viewer Software CD-ROM
• Nylon Strap (6' / 1.8 m)
• Limited 1-Year Warranty

• Trail Camera Security Box for Spec Ops/Recon Force/Command Ops Cameras suuetrbeufdusxcefaydxuqavrwztrd

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Browning HD Security Trail Camera

  Camera Type

  Time Lapse/Trail/Wildlife

  Image Resolution	10 MP
  Angle of View	55 Rating 100% users recommend this product to others. And what about you? This product has already been rated by 54 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
