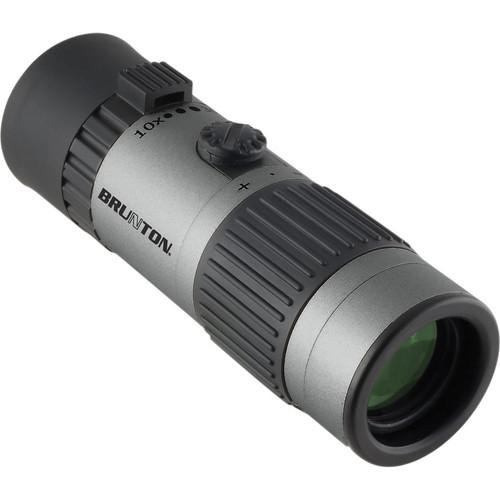

User Manual for Brunton 10-30x21 Echo Zoom Monocular Click to enlarge the picture
Contents of the user manual for the Brunton 10-30x21 Echo Zoom Monocular
- Product category: Monoculars Brunton
- Brand: Brunton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Brunton Monoculars
|
User manual for the Brunton 10-30x21 Echo Zoom Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Brunton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Brunton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Brunton product will considerably shorten its lifespan!
|
Product description It's so small you'll barely notice it in your pocket or bag, but the 10-30x21 Echo Zoom Monocular is equipped with optical elements that deliver big performance. Its BAK4 prism glass and fully multi-coated lenses minimize reflection and maximize light transmission for a bright, sharp image. At 10x, the Echo Zoom yields a respectable field of view; zoom in to 30x to see distant details clearly. You can mount this monocular on a tripod to eliminate image shake at higher magnification, and for comfort during long-duration observations. Along with its long-distance capabilities, the Echo Zoom features a 10' close-focus distance with applications in nature observation, art galleries, and museums. At just 4.2 x 1.4" and 3.2 ounces, this monocular is easily carried and takes up little space in a glove box or pack. Its rubber eyecup folds down to accommodate eyeglass wearers. A lanyard and carrying case are included. - Optical Performance
-
- 10-30x magnification
- 21mm objective lens
- Anti-reflective fully multi-coated lenses
- BAK4 prism glass
- Use and Handling
-
- Can be mounted on tripod for shake-free long-term observation
- Close focus distance: 10'
- Eyecup folds down to accommodate eyewear
- Ribbed focus ring
- Prominent zoom ring knob
- 12mm eye relief
- Construction and Handling
-
- Lightweight aluminum housing
- Measures 4.2 x 1.4", weighs just 3.2 oz
- Lanyard & carrying case included
UPC: 080078912115 In the Box Brunton 10-30x21 Echo Zoom Monocular Lanyard Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Brunton 10-30x21 Echo Zoom Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrunton F-ECHOZOOM Specs | Magnification | 10-30x | | Objective Lens Diameter | 21mm | | Minimum Focus Distance | 10' (3 m) | | Exit Pupil | 2.4 - 1.8 mm | | Eye Relief | 12 mm | | Field of View | 178 - 10' at 1000 yd (59 - 3 m at 1000 m) | | Angle of View | 3.4 - 0.1° | | Dimensions | 4.2 x 1.4" (10.7 x 3.6 cm) | | Weight | 3.2 oz (91 g) | | | | Package Weight | 0.305 lb | | Box Dimensions (LxWxH) | 7.15 x 5.65 x 2.85" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
