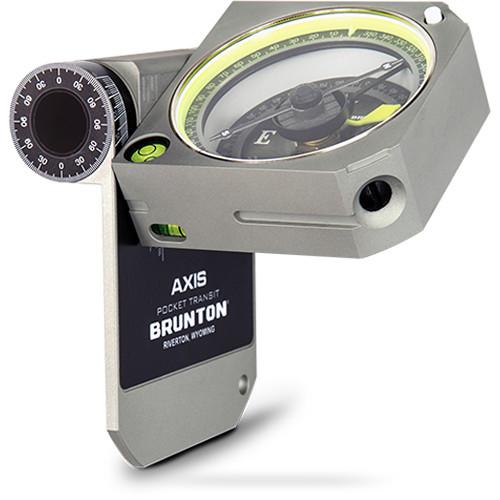

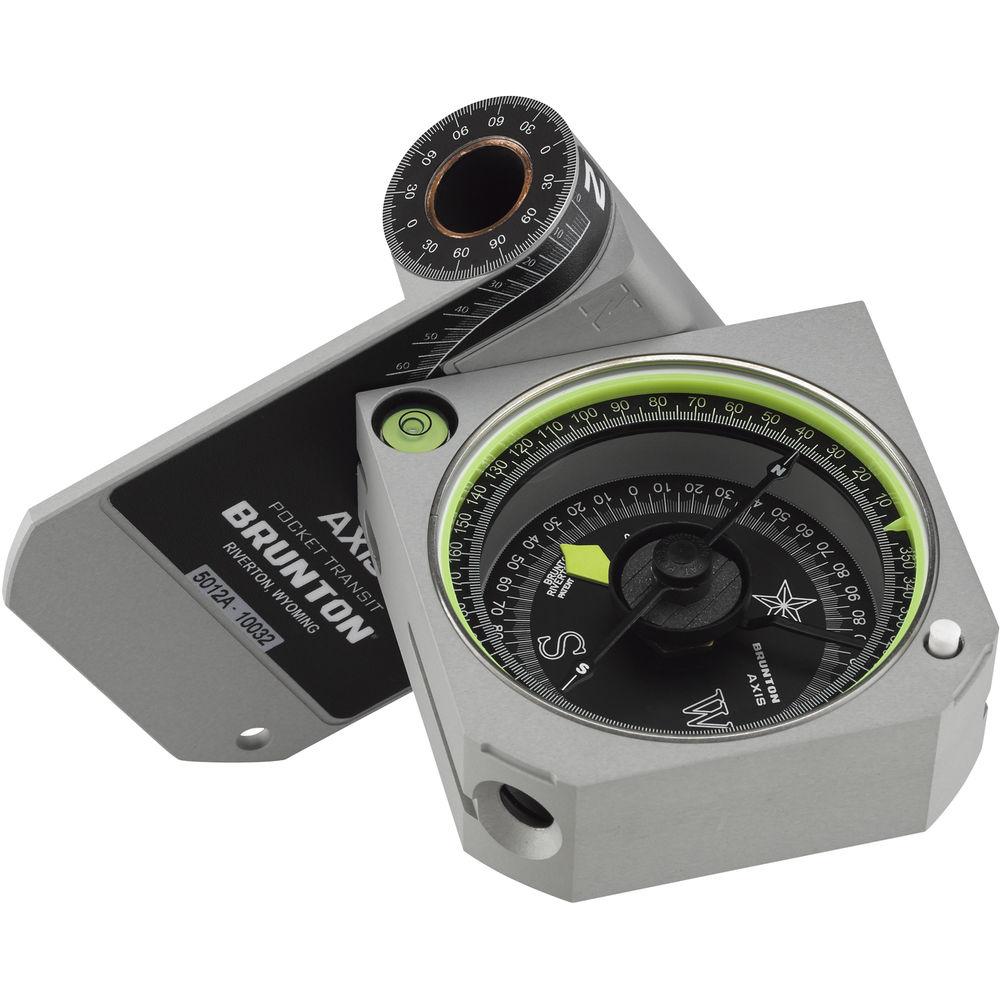

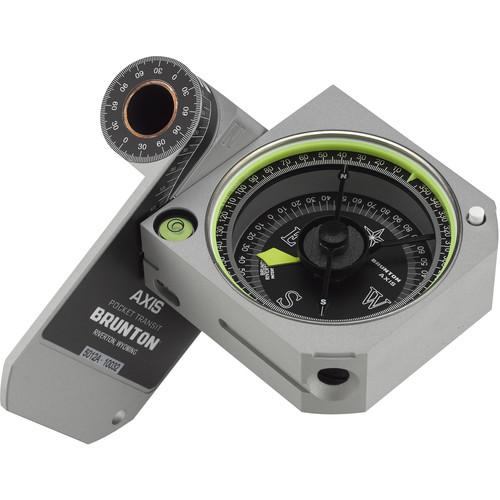

User Manual for Brunton Axis 0-360 Pocket Transit Click to enlarge the picture
Contents of the user manual for the Brunton Axis 0-360 Pocket Transit
- Product category: Compasses Brunton
- Brand: Brunton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Brunton Compasses
 |
User manual for the Brunton Axis 0-360 Pocket Transit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Brunton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Brunton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Brunton product will considerably shorten its lifespan!
|
Product description The Axis 0-360 Pocket Transit from Brunton is designed especially for easier geological measurements. Its innovative dual-axis, hollow hinge allows for intuitive, efficient, accurate measurements of planes, lines, bearings, and vertical angles. Only one measurement configuration is needed for strike & dip, trend & plunge, and bearing and vertical angle, making your measurements more accurate and efficient. The innovative lid protractor and rotation around the minor axis enables accurate, simultaneous measurement of trend & plunge on any surface, including overhangs. The axis employs a rare earth magnet on a sapphire jewel suspension and features an adjustable needle locking mechanism, high-visibility north and south markings, and induction damping for quick stabilization. The housing is hard anodized billet aluminum and is O-ring sealed to provide a waterproof performance. - Function and Handling
-
- Sapphire jewel bearing
- 0-360° scale
- Dual-axis hinge for quick, easy measurements of planes, lines, bearings, and vertical angles
- Adjustable needle locking mechanism
- Induction dampened, low center of gravity needle
- Hard anodized aluminum billet body
- Adjustable magnetic declination
- Horizontal and vertical axis bubble levels
UPC: 080078916878 In the Box Brunton Axis 0-360 Pocket Transit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Brunton Axis 0-360 Pocket Transit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrunton F-5012 Specs | Accuracy | Compass bearing: 0.5° with 1° graduations
Inclinometer: 0.5° with 1° graduations
Dip angle: 1° with 2° graduations
Plunge angle: 0.5° with 1° graduations | | Dimensions | 3.9 x 2.8 x 1.2" / 9.9 x x 7.1 x 3.0 cm | | Weight | 12.5 oz / 354 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 5.8 x 5.7 x 3.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
