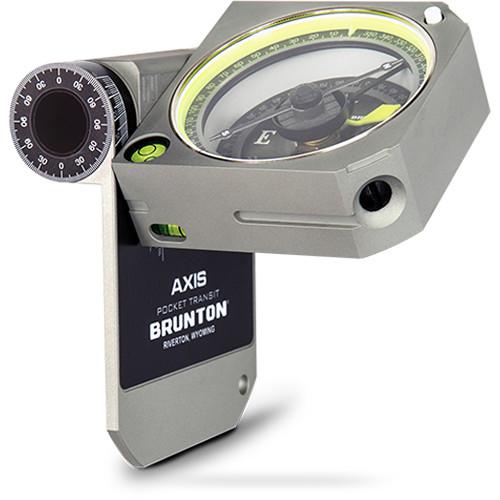

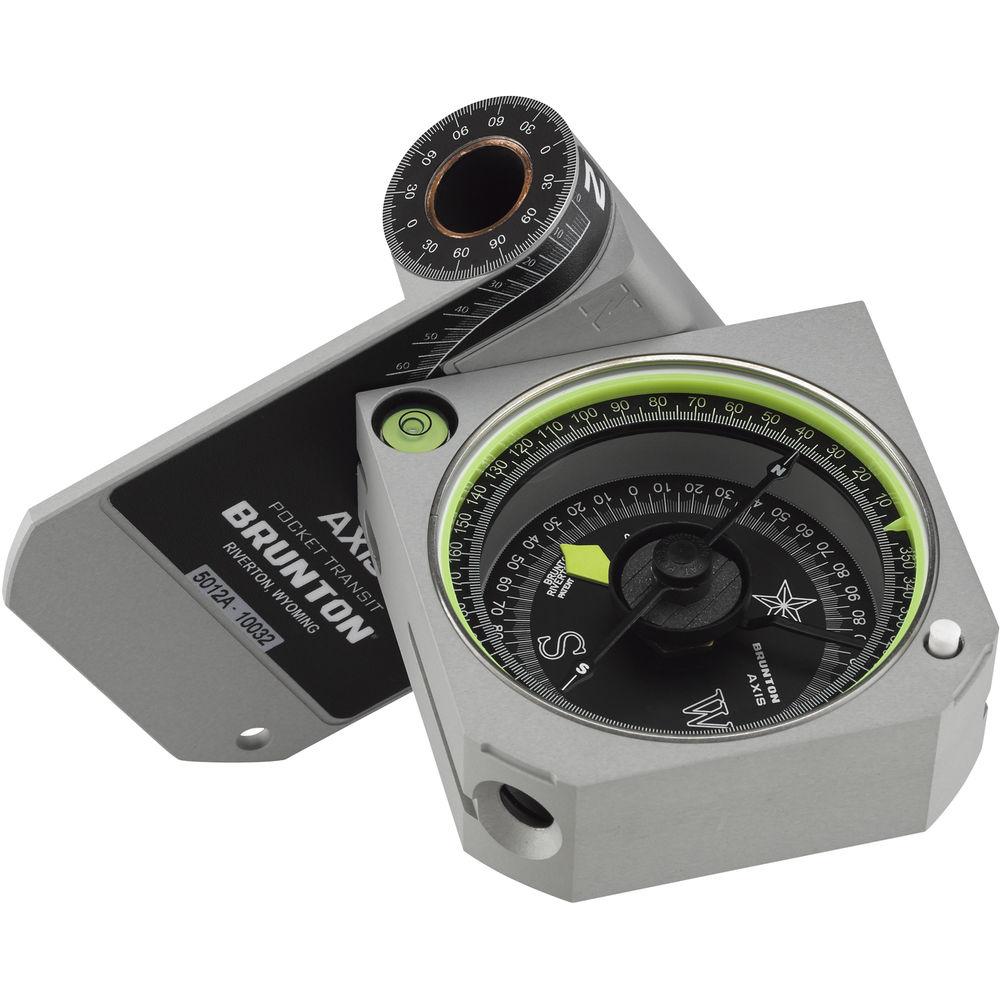

Product description The Axis Quad Pocket Transit from Brunton is designed especially for easier geological measurements. Its innovative dual-axis, hollow hinge allows for intuitive, efficient, accurate measurements of planes, lines, bearings, and vertical angles. Only one measurement configuration is needed for strike & dip, trend & plunge, and bearing and vertical angle, making your measurements more accurate and efficient. The innovative lid protractor and rotation around the minor axis enables accurate, simultaneous measurement of trend & plunge on any surface, including overhangs. The axis employs a rare earth magnet on a sapphire jewel suspension and features an adjustable needle locking mechanism, high-visibility north and south markings, and induction damping for quick stabilization. The housing is hard anodized billet aluminum and is O-ring sealed to provide a waterproof performance. - Function and Handling
-
- Sapphire jewel bearing
- 0-90° quadrants
- Dual-axis hinge for quick, easy measurements of planes, lines, bearings, and vertical angles
- Adjustable needle locking mechanism
- Induction dampened, low center of gravity needle
- Hard anodized aluminum billet body
- Adjustable magnetic declination
- Horizontal and vertical axis bubble levels
UPC: 080078916885 In the Box Brunton Axis Quad Pocket Transit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Brunton Axis Quad Pocket Transit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrunton F-5011 Specs | Accuracy | Compass bearing: 0.5° with 1° graduations
Inclinometer: 0.5° with 1° graduations
Dip angle: 1° with 2° graduations
Plunge angle: 0.5° with 1° graduations | | Dimensions | 3.9 x 2.8 x 1.2" / 9.9 x x 7.1 x 3.0 cm | | Weight | 12.5 oz / 354 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 5.7 x 5.4 x 3.1" |
