User Manual for Brunton OMNI-SLOPE 10x Inclinometer Click to enlarge the picture
Contents of the user manual for the Brunton OMNI-SLOPE 10x Inclinometer
- Product category: Compasses Brunton
- Brand: Brunton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Brunton Compasses
 |
User manual for the Brunton OMNI-SLOPE 10x Inclinometer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Brunton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Brunton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Brunton product will considerably shorten its lifespan!
|

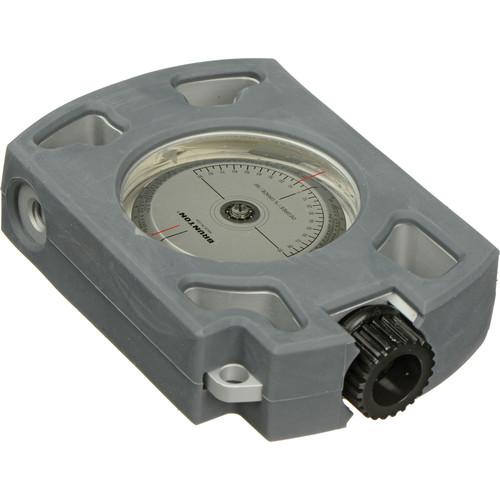

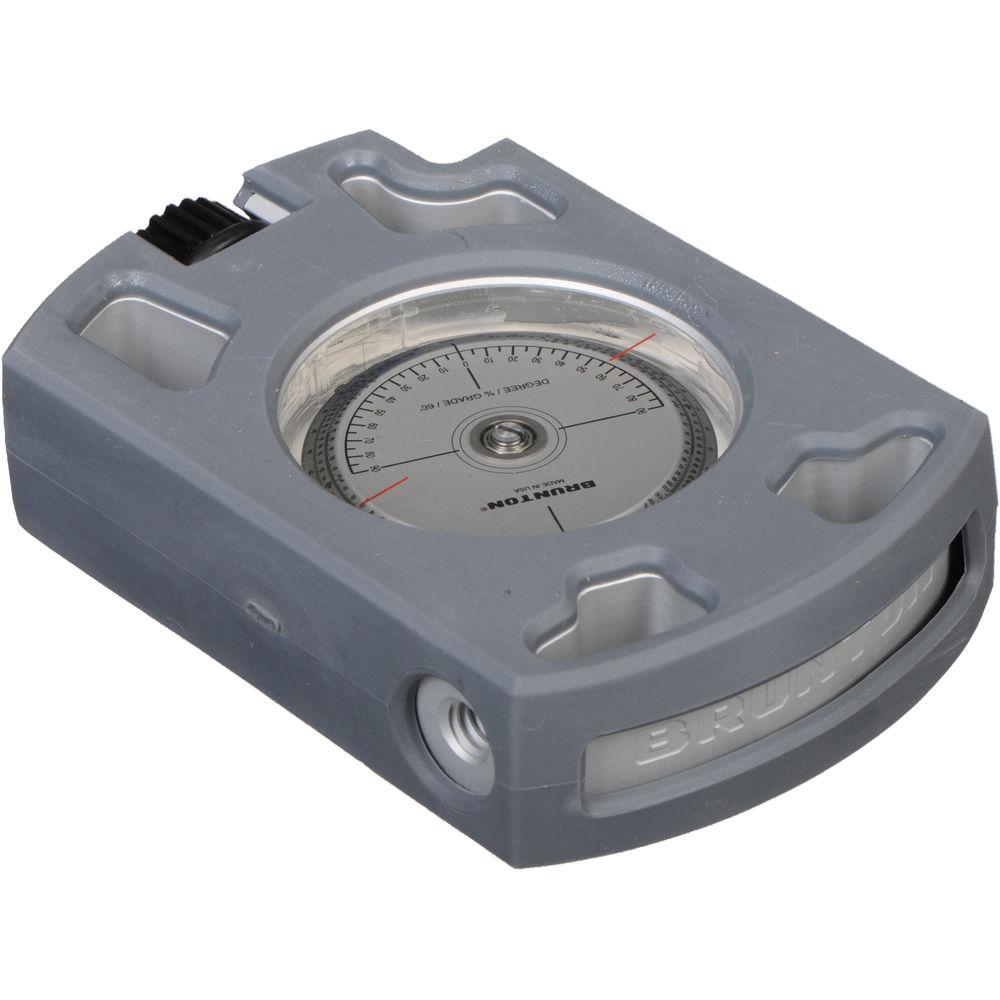

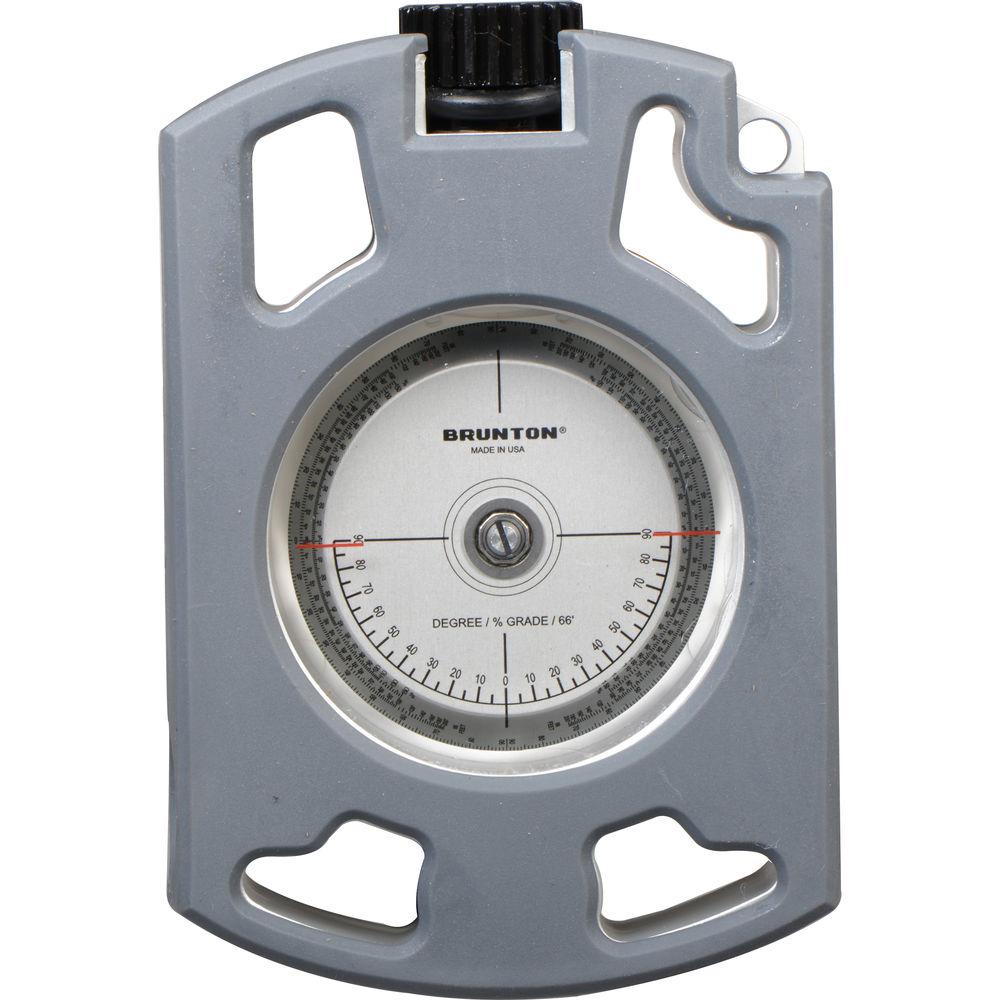

Product description The OMNI-SLOPE 10x Inclinometer from Brunton measures angles in degrees, percent grade, and 66' forestry chains for land surveying purposes. The degrees scale is broken up into 1° increments, and the inclinometer is accurate to within a 1/2°. The OMNI-SLOPE features an optical lens with 10x magnification for enlarging the scales to enable easier reading. Additionally, the illuminated dial ensures that the scales can clearly be seen even in low-light conditions. The inclinometer's lightweight, anodized aluminum housing is durable to allow for years of field use. The indicator card with the scales is also constructed from aluminum.
A precision pendulum with a 180° range gives fast, smooth, and accurate readings of height and pitch. Height can be calculated using the percentage scale and the distance between yourself and the object to be measured. As an alternative, you can simply use the 66' forestry chain scale and read out the correct height without calculating anything.
Look through the lens and aim at your target object. With both eyes open, the hairline will appear to be "standing up" from the inclinometer's housing, making it easy to accurately read the correct angle towards the object due to optical illusion. You can focus the lens on your desired scale by turning the eyepiece. If necessary due to a lack of space for sighting measurements, you can place the instrument's long side along the inclined plane to be measured and read the slope angle directly from the lubber line. The OMNI-SLOPE is supplied with a leather case. It is made in the USA. UPC: 080078915666 In the Box Brunton OMNI-SLOPE 10x Inclinometer Leather Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Brunton OMNI-SLOPE 10x Inclinometer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBrunton F-OMNISLOPE Specs | Magnification | 10x lens (focusable) | | Accuracy | 1/2° | | Scales | 180 degrees (in 1° increments), 66' forestry chain, and % grade | | Material of Construction | Anodized aluminum housing
Rubber bump cover
Leather case | | Dimensions | 2.5 x 3.5 x 0.5" / 6.4 x 8.9 x 1.3 cm | | Weight | 11.8 oz / 334.5 g | | | | Package Weight | 0.785 lb | | Box Dimensions (LxWxH) | 5.85 x 5.6 x 2.85" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
