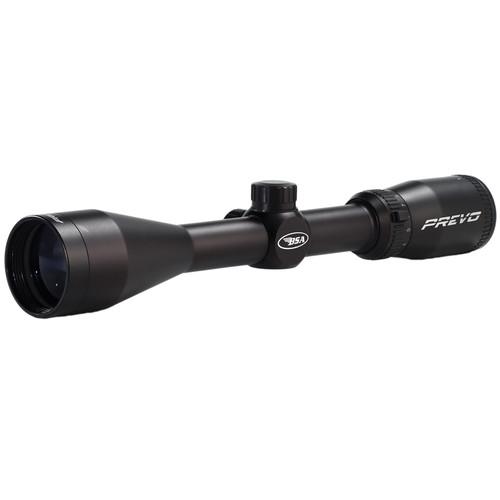

User Manual for BSA Optics 3.5-10x50 Prevo Riflescope Click to enlarge the picture
Contents of the user manual for the BSA Optics 3.5-10x50 Prevo Riflescope
- Product category: Riflescopes BSA Optics
- Brand: BSA Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BSA Optics Riflescopes
|
User manual for the BSA Optics 3.5-10x50 Prevo Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BSA Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BSA Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BSA Optics product will considerably shorten its lifespan!
|
Product description Intended for mid-range shooting, the matte black 3.5-10x50 Prevo Riflescope from BSA Optics features fully coated optics and a wire reticle. With a wide 50mm objective lens and fully anti-glare coated optics, your scope will collect more light in low-light situations than smaller objectives and enable you to have more visibility and brighter images. To help you compensate for wind drift and ballistic bullet drop, the scope offers 40 MOA for windage and elevation adjustment ranges with a 1/4 MOA per click impact point correction. To add convenience to your shooting experience, the riflescope also offers a 3.5" eye relief and ±2 dioptric correction.
The matte black aluminum housing is lightweight, durable, waterproof, and fogproof. It has a 1" main tube, knurled knobs, and a low profile lever on an eyepiece zoom ring. Also included with the riflescope are an Allen wrench and dust covers. Optical Performance -
- Ten optical elements
- Fully coated lenses
- Coating type: blue
- Magnification: 3.5-10x
- Objective lens: 50mm
- Linear field of view: 34 - 12' @ 100 yd
- Eye relief: 3.5"
- Wire reticle
Use and Handling -
- 40 MOA windage and elevation ranges
- 1/4 MOA per click impact point correction
- Parallax-free at 100 yd
Construction Details -
- Aluminum housing with matte black finish
- 1" diameter main tube
- •Knurled windage and elevation knobs
- Low profile zoom lever
- Fast-focus eyepiece
- Waterproof and fogproof
UPC: 793676067940 In the Box BSA Optics 3.5-10x50 Prevo Riflescope (Wire Recticle) - Allen Wrench
- 2 x Dust Cover
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the BSA Optics 3.5-10x50 Prevo Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBSA Optics PV3.5-10X50CP Specs | | | Magnification | 3.5 to 10x | | Objective Lens Diameter | 50 mm | | Field of View | 3.5x: 34' @ 100 yd / 11.3 m @ 100 m
10x: 12' @ 100 yd / 4 m @ 100 m | | Exit Pupil Diameter | 3.5x: 14.2 mm
10x: 5 mm | | Eye Relief | 3.5" / 89 mm | | Diopter Correction | -2.0 to +2.0 | | | | Reticle Type | Wire Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 15.2" / 38.6 cm | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 15.3 x 6.4 x 1.5" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
