User Manual for BSA Optics 3-9x Sweet .243 AO Riflescope Click to enlarge the picture
Contents of the user manual for the BSA Optics 3-9x Sweet .243 AO
- Product category: Riflescopes BSA Optics
- Brand: BSA Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BSA Optics Riflescopes
|
User manual for the BSA Optics 3-9x Sweet .243 AO contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BSA Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BSA Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BSA Optics product will considerably shorten its lifespan!
|

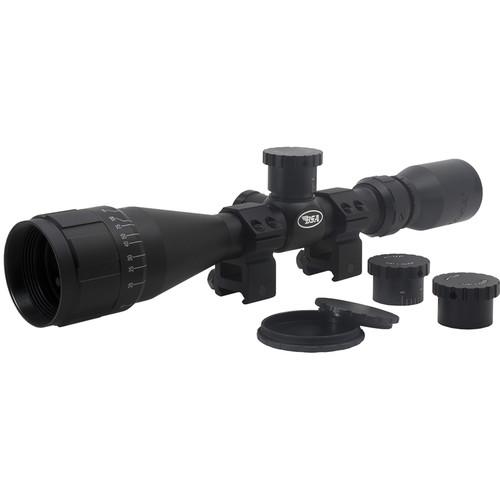

Product description Designed for .243 caliber rifles, the BSA 3-9x Sweet .243 AO Riflescope offers users many handy features like a 3-9x zooming range, durable construction, fully coated lenses, adjustable objective parallax correction, and a second focal plane 30/30 reticle. This scope ships ready to be mounted using the included 1" Dovetail rings and offers 55-, 80-, and 100-grain turrets for different ammunition. Also noteworthy is its Climate Xtreme Protection that ensures a waterproof, fogproof, and impact-resistant performance. To help you adjust the trajectories, it also offers windage and elevation with 1/4 MOA clicks. - Optical Performance
-
- 3-9x magnification
- Green full anti-reflection coatings
- 13.3-4.4mm exit pupil
- 4" eye relief
- Use and Handling
-
- Windage and elevation with 1/4 MOA clicks
- Parallax correction from 7.5 yards to infinity
- Optimized for .243 chambered rifles
- Construction Details
-
- Aluminum housing
- 1" diameter maintube
- 55-, 80-, and 100-grain turrets
- Adjustable objective parallax
- Climate Xtreme Protection: fogproof, waterproof, and shock resistant
- Two 1" Dovetail mounting rings included
- 30/30 Reticle
-
- Second focal plane
- Four posts and a crosshair
UPC: 631618114522 In the Box BSA Optics 3-9x Sweet .243 AO Riflescope (30/30 Reticle, Matte Black) - 2 x Dovetail Rings
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the BSA Optics 3-9x Sweet .243 AO Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBSA Optics 243-39X40AOWRTB Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 34.2' @ 100 yd / 11.4 m @ 100 m
9x: 11.5' @ 100 yd / 3.8 m @ 100 m | | Exit Pupil Diameter | 3x: 13.3 mm
9x: 4.4 mm | | Eye Relief | 4" / 101.6 mm | | | | Reticle Type | 30/30 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Parallax Correction | Yes, 7.5 yd / 6.9 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12.2" / 31 cm | | Weight | 22.3 oz / 632.2 g |
