BSA Optics 3-9x40 Sweet .22 AO

Search your instruction manual in PDF to download

User Manual for BSA Optics 3-9x40 Sweet .22 AO Riflescope

Click to enlarge the picture

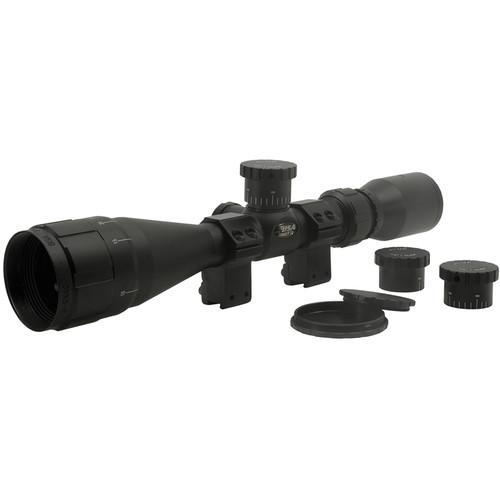

BSA Optics 3-9x40 Sweet .22 AO Riflescope Contents of the user manual for the BSA Optics 3-9x40 Sweet .22 AO
  • Product category: Riflescopes BSA Optics
  • Brand: BSA Optics
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for BSA Optics Riflescopes

User manual for the BSA Optics 3-9x40 Sweet .22 AO contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any BSA Optics product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official BSA Optics user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a BSA Optics product will considerably shorten its lifespan!

Product description

Optimized for .22 LR rifles, the BSA 3-9x40 Sweet .22 AO Riflescope offers users many handy features like a 3-9x zoom for longer ranges, fully coated lenses, adjustable objective parallax correction, tall graduated windage and elevation turrets, and a second focal plane 30/30 reticle. With the 40mm objective lens, you can confidently extend your activities to low light, like dawn or dusk, without compromising much visibility and image brightness. This scope ships ready to be mounted using the included 1" rings and offers three turrets for 36-, 38-, and 40-grain ammunition. Also noteworthy is its Climate Xtreme Protection that ensures a waterproof, fogproof, and impact-resistant performance.
    Optical Performance
    • 3-9x magnification
    • 40mm objective collects enough light for most lighting conditions
    • Green full anti-reflection coatings
    • 13.3-4.4mm exit pupil
    • 4" eye relief
      Use and Handling
      • Windage and elevation with 1/4 MOA clicks
      • Parallax correction from 7.5 yards to infinity
      • Optimized for .22 LR rifles
        Construction Details
        • Aluminum housing
        • 1" diameter maintube
        • Three turrets for 36-, 38-, and 40-grain bullets
        • Adjustable objective parallax
        • Climate Xtreme Protection: fogproof, waterproof, and shock resistant
        • Two 1" Dovetail mounting rings included
          30/30 Reticle
          • Second focal plane
          • Four posts and a crosshair
          UPC: 631618114515 In the Box BSA Optics 3-9x40 Sweet .22 AO Riflescope (30/30 Reticle, Matte Black)
        • 2 x Dovetail Rings
        • Limited Lifetime Warranty
        Table of Contents

Upload User Manual

Have you got an user manual for the BSA Optics 3-9x40 Sweet .22 AO Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:


Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)


Technical parameters

BSA Optics 22-39X40AOWRTB Specs

Magnification 3 to 9x
Objective Lens Diameter 40 mm
Field of View 3x: 34.2' @ 100 yd / 11.4 m @ 100 m
9x: 11.5' @ 100 yd / 3.8 m @ 100 m
Exit Pupil Diameter 3x: 13.3 mm
9x: 4.4 mm
Eye Relief 4" / 101.6 mm
Reticle Type 30/30 Reticle (Second Focal Plane)
Impact Point Correction 1/4 MOA per Click
Parallax Correction Yes, 7.5 yd / 6.9 m to Infinity
Water Resistance Waterproof
Fogproof Yes
Maintube Diameter 1"
Battery None
Dimensions Length: 12.2" / 31 cm
Weight 22.3 oz / 632.2 g


90% users recommend this product to others. And what about you?
Rating: 4.5 of 5

This product has already been rated by 43 owners. Add your rating and experience with the product.


Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

Post new comment to BSA Optics 3-9x40 Sweet .22 AO Riflescope

Subject: Changing yurrets
Date: 28.03.2023 00:00:03Name: Swayne Dudley
How do you change the 36 grain turret to a 40 grain?
