User Manual for BSA Optics 6-24x44 Pervo Riflescope Click to enlarge the picture
Contents of the user manual for the BSA Optics 6-24x44 Pervo Riflescope
- Product category: Riflescopes BSA Optics
- Brand: BSA Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BSA Optics Riflescopes
|
User manual for the BSA Optics 6-24x44 Pervo Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BSA Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BSA Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BSA Optics product will considerably shorten its lifespan!
|

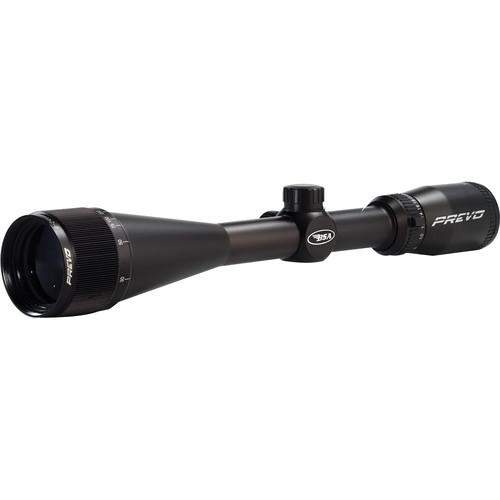

Product description Made for distance shooting, the matte black 66-24x44 Pervo Riflescope from BSA Optics offers high magnification and a fast zoom eyepiece to provide you with fast and accurate target acquisition. It also features a wire reticle for easier aiming and an adjustable objective for correcting parallax from 10 yd to infinity. With a 44mm objective lens and fully coated optics, your scope will collect enough light in most lighting conditions so that you can have adequate visibility and bright images. To help you account for wind drift and ballistic bullet drop, it offers 35 MOA windage and elevation adjustment ranges with a 1/4 MOA impact point correction. For your convenience, the scope also provides a 3.5" eye relief and ±2 diopter adjustment.
The matte black aluminum housing is lightweight, durable, waterproof, and fogproof. It has a 1" main tube, knurled knobs, and a low profile lever on an eyepiece zoom ring. Also included with the riflescope are an Allen wrench and dust covers. - Optical Performance
-
- Ten optical elements
- Fully coated lenses
- Coating type: blue
- Magnification: 6 - 24x
- Objective lens: 44mm
- Linear field of view: 20 - 5' @ 100 yd
- Eye relief: 3.5"
- Wire reticle
- Use and Handling
-
- 35 MOA windage and elevation adjustments
- 1/4 MOA impact point correction
- Construction Details
-
- Aluminum housing with matte black finish
- Knurled knobs, objective and eyepiece adjustment rings
- 1" diameter main tube
- Fast-focus eyepiece
- Waterproof and fogproof
In the Box BSA Optics 6-24x44 Pervo Riflescope (Wire Reticle) - Allen Wrench
- 2 x Dust Cover
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the BSA Optics 6-24x44 Pervo Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBSA Optics PV624X44AOCP Specs | | | Magnification | 6 to 24x | | Objective Lens Diameter | 44 mm | | Field of View | 6x: 20' @ 100 yd / 6.7 m @ 100 m
24x: 5' @ 100 yd / 1.7 m @ 100 m | | Exit Pupil Diameter | 6x: 7.3 mm
24x: 1.8 mm | | Eye Relief | 3.5" / 89 mm | | Diopter Correction | -2.0 to +2.0 | | | | Reticle Type | Wire Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 35 MOA | | Elevation Adjustment | 35 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 16" / 40.6 cm
Objective Diameter: 2.1" / 53 mm | | | | Box Dimensions (LxWxH) | 16.0 x 7.0 x 3.0" |
