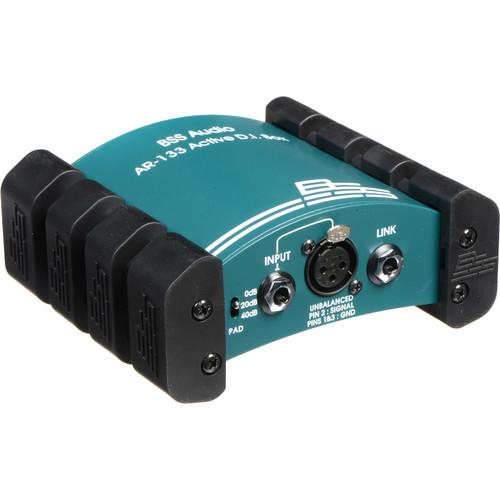

User Manual for BSS Audio AR-133 - Active Direct Box Line Balancer Click to enlarge the picture
Contents of the user manual for the BSS Audio AR-133 - Active Direct
- Product category: Direct Boxes BSS Audio
- Brand: BSS Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BSS Audio Direct Boxes
|
User manual for the BSS Audio AR-133 - Active Direct contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BSS Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BSS Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BSS Audio product will considerably shorten its lifespan!
|
Product description The AR-133 from BSS is an active direct box that can also function as an active balancing device. The DI is housed in a rugged aluminum extrusion case with robust polyurethane end-cheeks. The arched case allows cables to run back underneath the unit from the end for neat cable management. The unit can be powered from console phantom power or via a 9V battery, which is not included. Should the phantom power from the console fail or be accidentally switched off, the AR-133 automatically switches over to the internal 9V battery providing uninterrupted use. Applications for the product include use with keyboards, DJ consoles, amplifier outputs, other electronic sources, as well as the traditional guitar use. - Active direct box and line balancing device
- Suitable for musicians, studios and PA companies
- Phantom or 9V battery powered. With a battery installed, if phantom power should be interrupted, the unit will automatically switch to battery power
- Input attenuation is 0, -20 or -40dB, making the box suitable for instrument, line or amplifier levels on inputs
- Ground lift switch eliminates typical ground loop problems
UPC: 691991600005 In the Box BSS Audio AR-133 - Active Direct Box/Line Balancer One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BSS Audio AR-133 - Active Direct Box Line Balancer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBSS Audio AR-133 Specs | Input Connections | 1 x XLR
2 x 1/4" TS phone | | Output Connectors | 1 x XLR | | Input Level | +9dBu (pad at 0dB) | | Output Level | +8dBu into 600Ω or greater | | Controls | On/Off switch
Pad switch
Ground lift switch | | Frequency Response | 30Hz to 20kHz, +0dB/-1dB | | Noise | <-105db unweighted, 22Hz to 22kHz, RMS | | Power | +20VDC to +48VDC phantom power or 9V battery (not included) | | Dimensions (WxDxH) | 4 15/16" x 5 3/4" x 2 5/16" | | Weight | 1.4 lbs | | Specialties | Arched case allows cables to run back underneath the unit from the end for neat cable management | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 8.0 x 8.0 x 2.5" |
