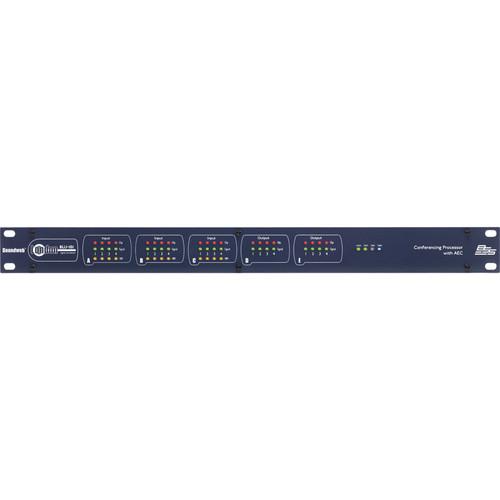

Product description The Soundweb London BLU-101 Conferencing Processor with AEC from BSS Audio is a 1RU configurable signal processing interface, featuring AEC (Audio Echo Cancellation) algorithm. This interface features 12 analog inputs and 8 analog outputs. It has a high bandwidth and fault tolerant digital audio bus. This unit is controlled via the Soundweb BLU link Ethernet CAT5 connection.
The BLU-101 has an open architecture which is fully configurable through the HiQnet London Architect configuration and control software. The simple design software environment includes processing and logic objects, and a "drag and drop" configuration method.
The Conferencing Processor features dedicated AEC processing for up to 12 independent AEC algorithms. The AEC algorithm can be applied to signals coming from the local analog inputs or from the digital audio bus. 12 individual AEC references (one per algorithm) allow the user to provide a solution for multiple conferencing spaces using a single device. The BLU-101 also features Automatic Gain Control (AGC) and Noise Cancellation (NC) which are provided per AEC algorithm. AGC is designed to ensure that the microphone levels remain at an optimum level, and NC removes steady state noise (such as from a projector fan or air conditioning device) from the signal path.
This processor features a low latency, fault tolerant digital audio bus of 48 channels which uses standard CAT5e cabling giving a distance of 100m between compatible devices. Fiber media converters can be used to increase the distance between devices to over 40km. The systems analog inputs provide software configurable gain in 6dB steps up to +48dB per channel and software selectable Phantom Power per channel. The Phantom Power, Signal Present and Clip information per channel are on the front panel LED indicators, eliminating the need for a PC. A bi-directional locate function allows devices to be identified both from and within HiQnet London Architect software.
The systems 12 control inputs and 6 logic outputs, allow the BLU-101 to be integrated with GPIO compatible devices. The BLU-101 is compatible with the entire Soundweb London family and its 48 channel digital audio bus represents channels 1-48 of the larger 256 channel digital audio bus when integrated with the BLU-800 and BLU-160 processors, as well as the BLU-320, BLU-120, BLU-BIB and BLU-BOB expanders. - 12 Analog inputs (with 48V phantom power per channel) and 8 analog outputs
- Configurable signal processing
- 12 Channels of AEC processing with Auto Gain Control (AGC) and Noise Cancellation (NC)
- Rich palette of processing and logic objects
- 48 Channel, low latency, fault tolerant digital audio bus
- Clear front panel LED indication
- Bi-directional locate functionality
- 12 Control inputs and 6 logic outputs for GPIO integration
- Soundweb London interface kit for third party control system integration
- Configuration, control and monitoring from HiQnet London Architect
In the Box BSS Audio Soundweb London BLU-101 Conferencing Processor with AEC (1RU) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BSS Audio Soundweb London BLU-101 Conferencing Processor with AEC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBSS Audio BLU-101 Specs | | | Inputs | 12 x balanced Phoenix Combicon inputs, 36 screw terminals | | Mic/Line Inputs | Nominal Gain: 0 dB
Electronically switchable up to +48 dB, in +6 dB steps | | Input Impedance | 3 kΩ | | Maximum Input Level | +20 dBu with 0 dB input gain
+8 dBu with 12 dB gain | | CMRR | > 75 dB at 1 kHz | | Input Noise | <-125 dBu typical with 150 Ω source | | Phantom Power | 48 V nominal, selectable per input | | Latency | A/D; 37/Fs (0.77 ms @ 48 k) | | | | Outputs | 8 x balanced Phoenix Combicon, 24 screw terminals | | Maximum Output Level | + 19 dBu | | Frequency Response | 20 Hz to 20 kHz (+0.5 dB/-1 dB) | | Total Harmonic Distortion (THD) | <0.01% 20 Hz to 20 kHz, +10 dBu output | | Dynamic Range | 108 dB typical, 22 Hz to 22 kHz unweighted | | Crosstalk | <-75 dB | | Output Impedance | 40 Ω balanced and 20 Ω unbalanced | | Latency | D/A; 29/Fs (0.60 ms @ 48 k) | | | | AEC Processing | 12 independent algorithms
Latency (Original 8k Algorithm): 2385/Fs (49.69 ms @ 48 k)
Latency (Full Bandwidth Algorithm): 1609/Fs (33.52 ms @ 48 k)
Tail Length: 200 ms
Average Convergence Rate: 49 dB/s (net convergence over multiple FFT bands) | | | | Ports | 12 x control input
6 x logic output | | Input Voltage | 0 to 4.5 VDC | | Input Impedance | 4.7 kΩ to +5 VDC (2-wire mode)
>1 MΩ (3-wire mode) | | Output Voltage | 0 or +5 VDC unloaded | | Output Impedance | 440 Ω | | Output Current | 10 mA source, 60 mA sink | | Watchdog Function | Watchdog Output: Phoenix/Combicon connector for failsafe control
Opto Output Current: 14 mA maximum
Withstanding Voltage: 80 V maximum (Off)
Series Impedance: 220 Ω (isolated) | | | | LED Indicators | Per Input: Signal Present, CLIP, 48 V (input only)
Other: COM, STAT, ERR, PWR | | Connectors | 1 x RJ45 Ethernet, control network
2 x RJ45 Ethernet, BLU link
1 x 9-pin D-Sub, RS-232 serial port | | Maximum Cable Length | Control Network: 300' (100 m) on CAT5 cable between device and Ethernet switch
BLU Link: 300' (100 m) on CAT5e cable between devices | | Power Supply | 100-240 VAC, 50/60 Hz | | Power Consumption | <55 VA | | BTU | <188 btu> | | Operating Temperature | 41 to 95° F (5 to 35° C) | | Dimensions (H x W x D) | 1.75 x 19.0 x 12.5" (4.5 x 48.3 x 31.8 cm) | | Weight | 9.1 lb (4.1 kg) |
