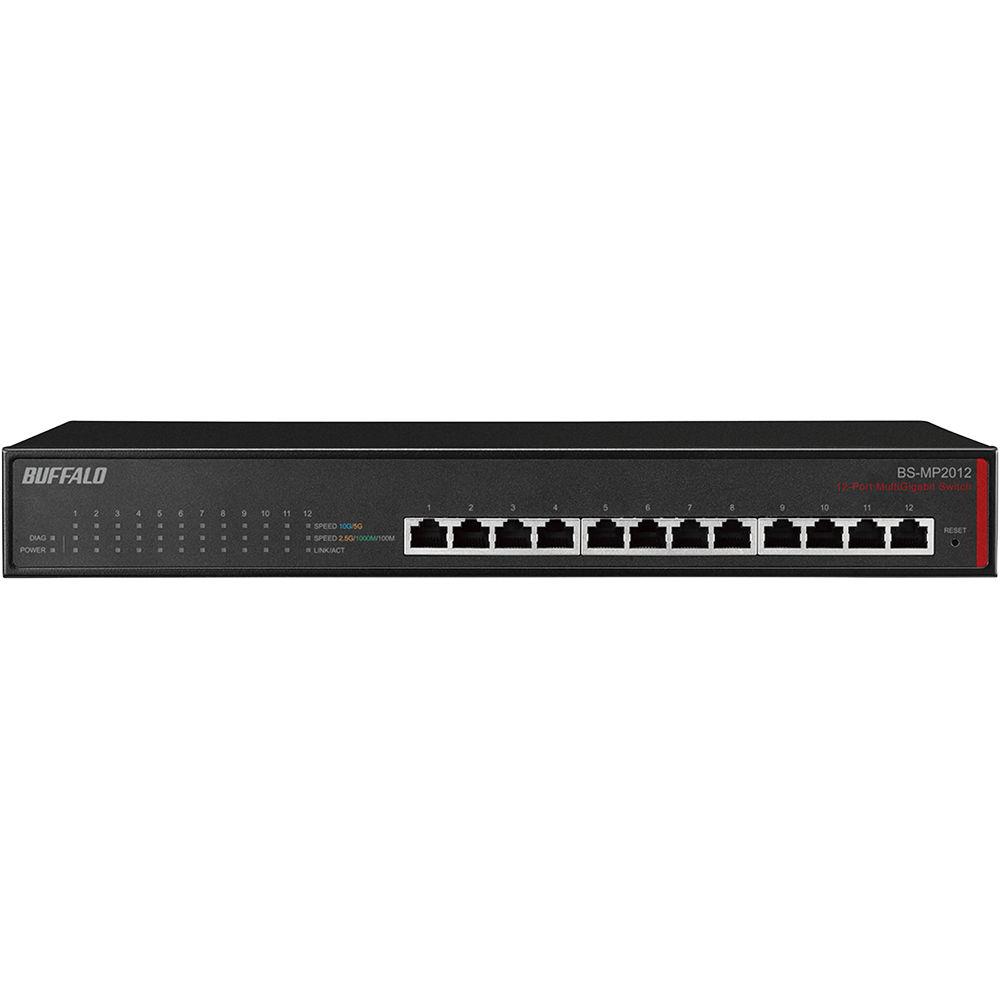

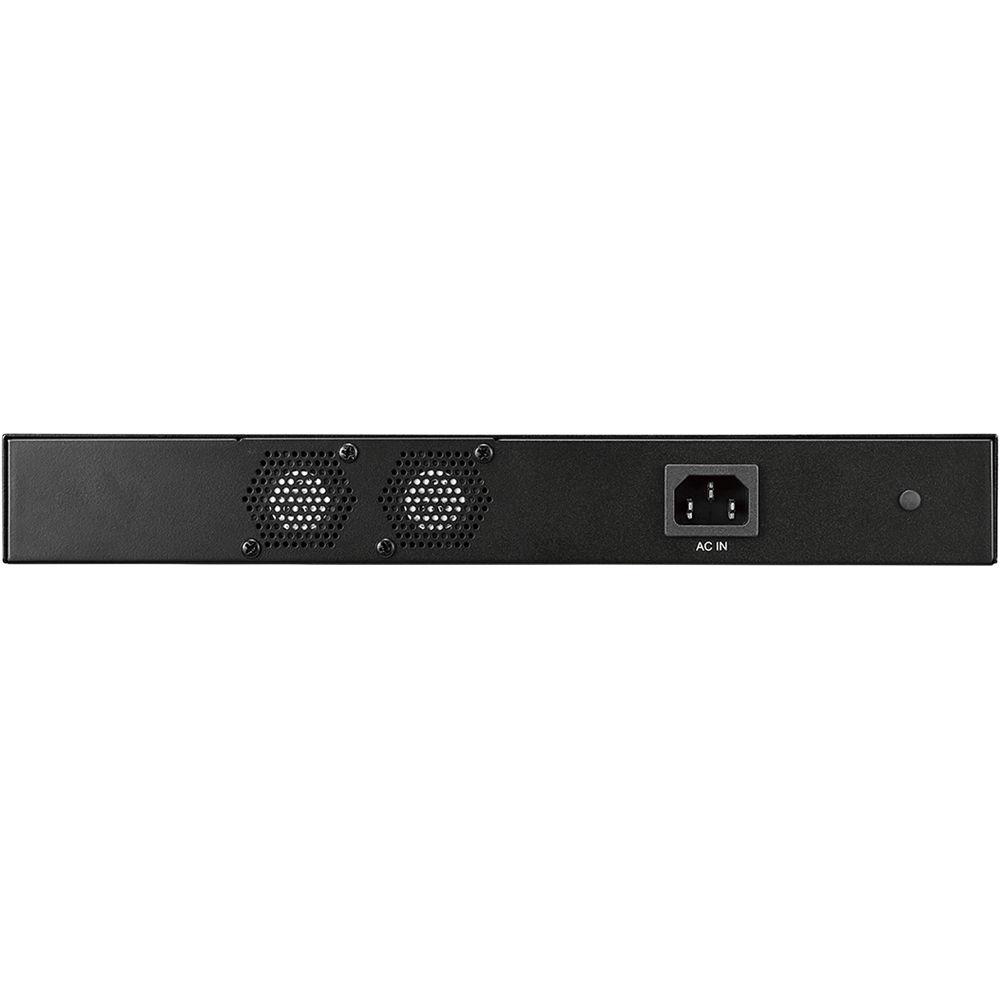

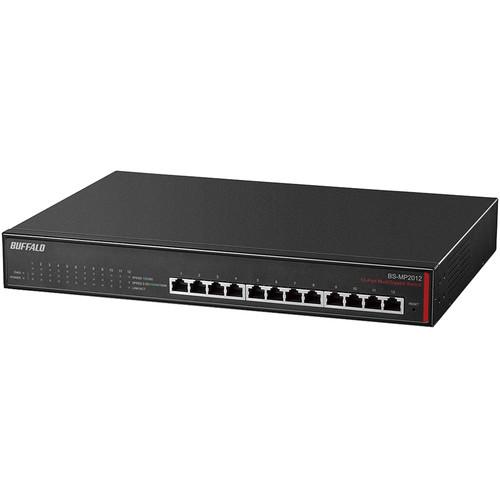

User Manual for Buffalo BS-MP20 12-Port 10GbE Network Switch Click to enlarge the picture
Contents of the user manual for the Buffalo BS-MP20 12-Port 10GbE Network Switch
- Product category: Network Switches, Bridges & Hubs Buffalo
- Brand: Buffalo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Buffalo Network Switches, Bridges & Hubs
 |
User manual for the Buffalo BS-MP20 12-Port 10GbE Network Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Buffalo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Buffalo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Buffalo product will considerably shorten its lifespan!
|
Product description The BS-MP20 12-Port 10GbE Network Switch from Buffalo is built upon 802.3bz standard, which positions small businesses to maximize current network infrastructure while preparing them for later transition to 10GbE. The 802.3bz standard supports 2.5, 5, and 10GBase-T networks through the same switch using a basic CAT5e cable. To transition to 10GbE networking, this switch is suitable with the TeraStation 5010 line of NAS devices which features up to two native 10GbE ports. Each port on the switch automatically detects and configures the correct connection while full duplex operation provides maximum performance.
The BS-MP20 features a compact design that can sit on a desktop, mounted on a wall, or in a rack. Additionally, the chassis design supports noise reduction. To simplify installation, it includes rubber feet for desktop use and rails for rack-mounting. - 12 ports for fast multi-gigabit network speeds
- Full duplex operation provides maximum performance
- IEEE 802.3az standard (Green Ethernet technology) for reduced power consumption
- Automatic energy conservation feature reduces total power consumption
- Automatically detects and configures the correct connection for each port, eliminating need to manually configure connections
- Easily mounts in a rack, on a wall, or on desktop
- Internal power supply eliminates wall warts and simplifies cable management
UPC: 747464132686 In the Box Buffalo BS-MP20 12-Port 10GbE Network Switch Power Cable Rubber Feet 19" Rack Brackets Bracket Screws Rack Immobilization Screws Limited Lifetime Warranty More from Manufacturer vwqezxddcazccqtseurq Table of Contents
|
Upload User Manual
Have you got an user manual for the Buffalo BS-MP20 12-Port 10GbE Network Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBuffalo BS-MP2012 Specs | | | Ports | 12 x 10Gb Ethernet (RJ45) | | | | Supported Protocols | Auto-MDIX/MDI
IGMP Snooping
Port Mirroring | | Transmission Method | Store-and-Forward | | Jumbo Frames Support | 216 Bytes | | MAC Address Table Size | 16K | | | | Security Features | DHCP Snooping | | | | Supported IEEE Standards | 802.3ab, 802.3an, 802.3az, 802.3bz, 802.3u, 802.3x | | | | Switching Bandwidth | 240 Gb/s | | | | Power Draw | 50.00 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 85% | | Certifications | CE, FCC, IC, UL, VCCI, as per Manufacturer | | | | Material of Construction | Metal | | Dimensions | 12.99 x 9.06 x 1.73" / 32.99 x 23.01 x 4.39 cm | | Weight | 5.3 lb / 2.4 kg | | | | Package Weight | 7.75 lb | | Box Dimensions (LxWxH) | 16.1 x 12.0 x 4.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
