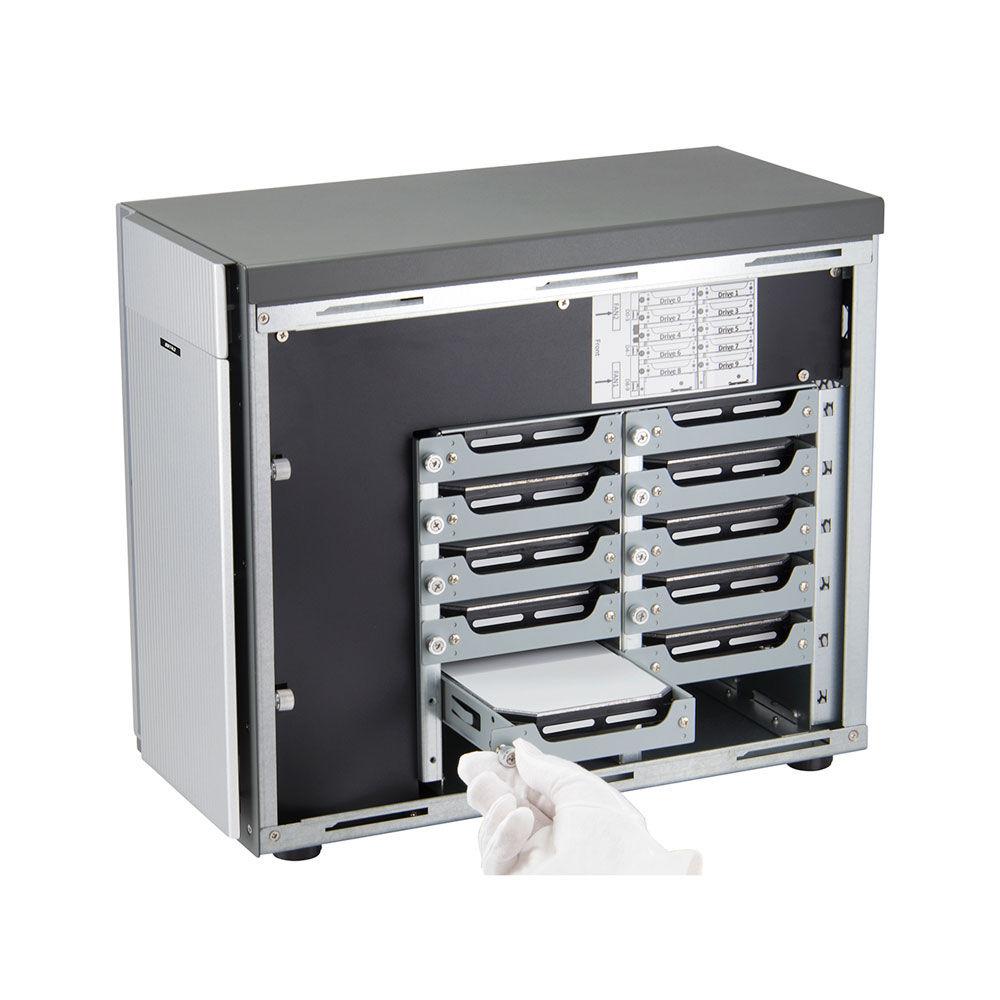

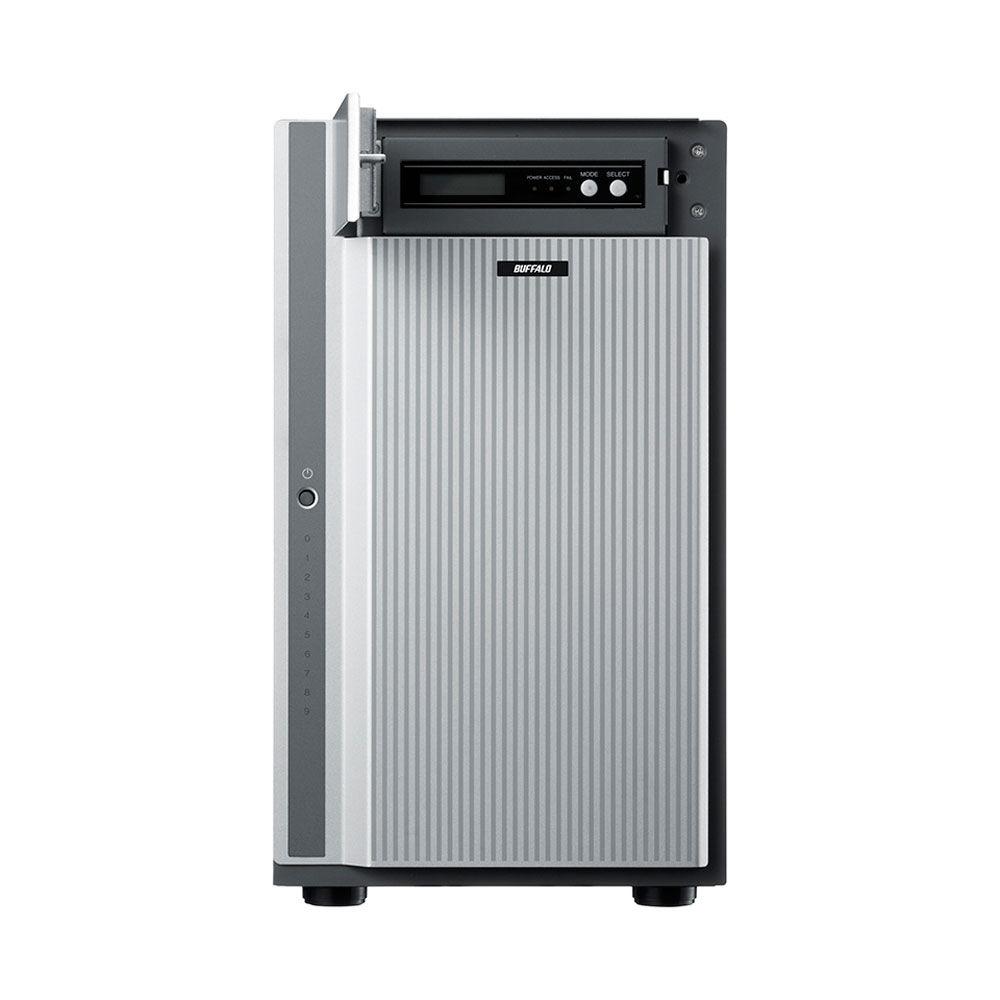

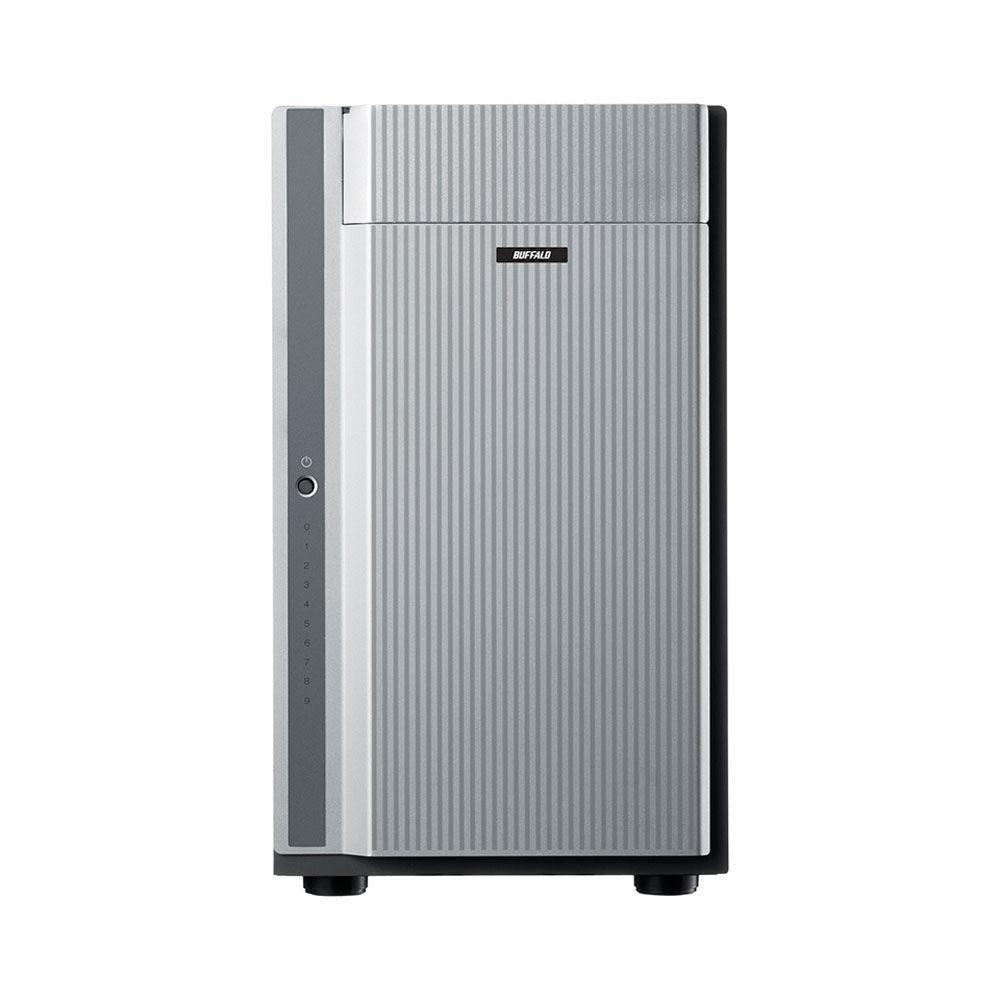

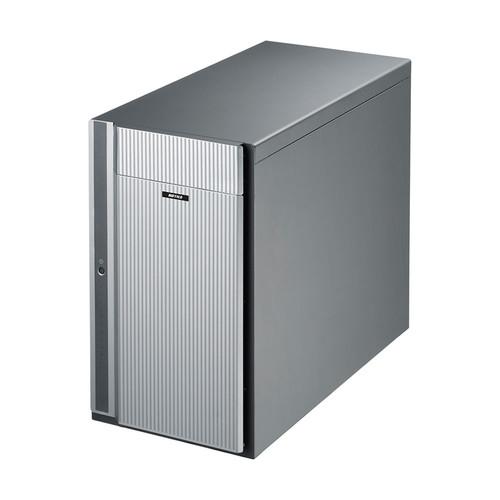

User Manual for Buffalo DriveStation Ultra 40TB 10-Bay Thunderbolt 2 RAID Array Click to enlarge the picture
Contents of the user manual for the Buffalo DriveStation Ultra 40TB 10-Bay Thunderbolt
- Product category: Hard Drive Arrays Buffalo
- Brand: Buffalo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Buffalo Hard Drive Arrays
 |
User manual for the Buffalo DriveStation Ultra 40TB 10-Bay Thunderbolt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Buffalo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Buffalo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Buffalo product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More The Buffalo DriveStation Ultra 40TB (10 x 4TB) 10-Bay Thunderbolt 2 RAID Array comes with ten 4TB NAS hard drives along with two Thunderbolt 2 connectors so you can quickly retrieve data with your computer system. These drives can be hardware configured in RAID modes 0, 5, or 6. Buffalo has preconfigured the DriveStation Ultra in RAID 6. When connected via Thunderbolt and set in RAID 0, the DriveStation Ultra can deliver write speeds of up to 1243 MB/s. In addition to Thunderbolt, it has an eSATA port and USB port to provide data storage for a Mac and PC. For file sharing, it can access a network via a built-in 10/100 jack. - Thunderbolt 2 Speeds
- The DriveStation Ultra comes equipped with two Thunderbolt 2 connectors, allowing Mac users to experience write speeds up to 1243 MB/s using RAID 0. This connection is suitable for transferring and storing large files such as high-resolution videos.
- High Capacity
- With a capacity of 40TB, you can store high-resolution videos and other large files on the DriveStation Ultra. The two Thunderbolt 2 ports provide the ability to daisy chain up to 6 DriveStation Ultras, and with 6 ports on a single Mac Pro you can achieve greater amounts of storage.
- Multi-Interface Support
- In addition to the ultra-fast Thunderbolt 2 connection for Mac, you can connect to the DriveStation Ultra with USB 3.0 and eSATA connections, allowing the desktop hard drive to be accessible for both Mac and PC users.
- Desktop Form Factor
- The DriveStation Ultra comes as a desktop solution, conveniently providing up to 40TB of data within reach.
- Performance Hard Drives
- The DriveStation Ultra features ten NAS hard drives, which are optimized for continuous 24/7/365 operation that run cooler and save power.
- Safe Data Storage
- The DriveStation Ultra provides users the flexibility to easily maximize capacity or protect their data using RAID redundancy.
- RAID 0 combines all drives into a single array, offering maximum storage capacity with no redundancy
- RAID 5 stripes the data across all 10 drives, interspersing parity data to provide an efficient blend of fault tolerance and storage capacity
- RAID 6 uses two parity stripes per hard drive, allowing two hard drives to fail without any data loss
UPC: 747464131382 In the Box Buffalo DriveStation Ultra 40TB (10 x 4TB) 10-Bay Thunderbolt 2 RAID Array Thunderbolt Cable USB 3.0 Cable eSATA Cable Limited 3-Year Warranty Brochure PDF 1.9mbdvtcetxvsvrtetxdrbeafwytubbyuaaccqaxdw More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Buffalo DriveStation Ultra 40TB 10-Bay Thunderbolt 2 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

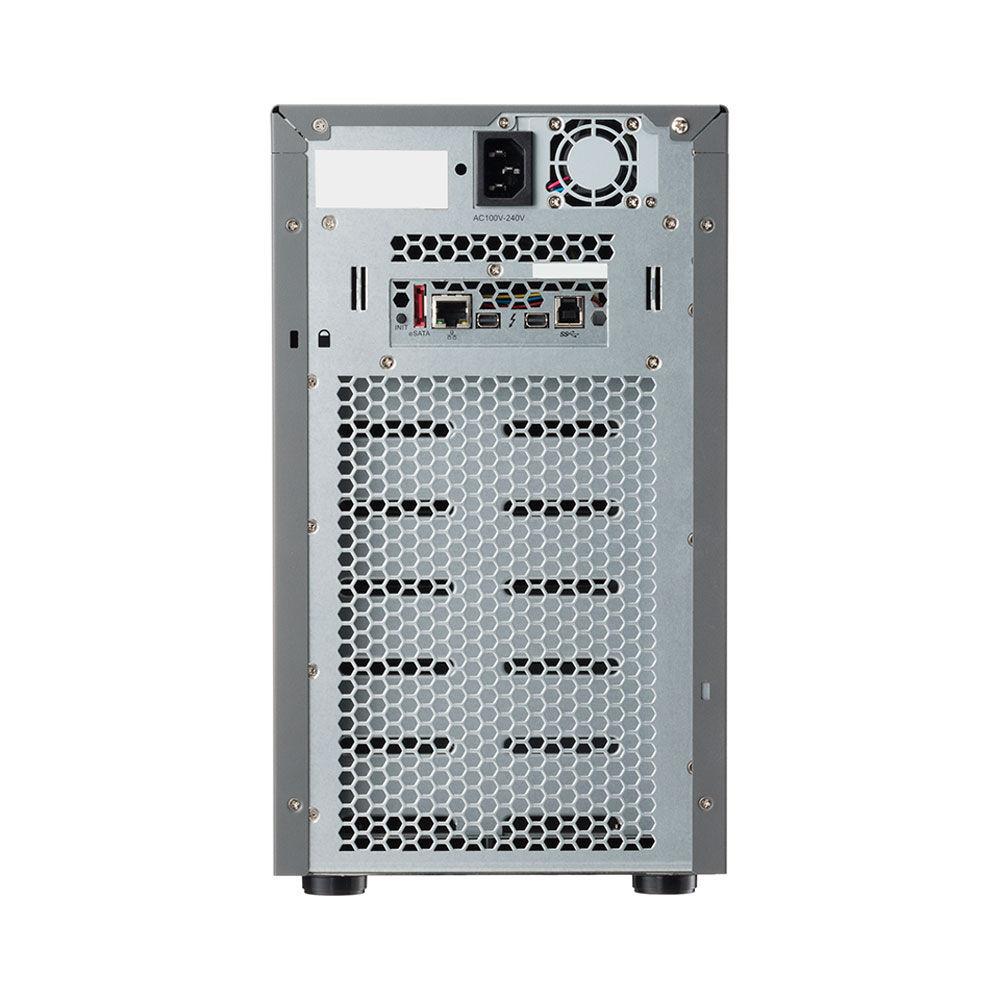

Technical parametersBuffalo HD-DN040T/R6 Specs | Capacity | 40 TB
10 x 4 TB NAS SATA 3 Gb/s hard drives | | Connectors | 2 x Thunderbolt 2 ports
1 x eSATA 7-pin 3 Gb/s port
1 x USB 3.0 5 Gb/s Type-B port (backwards compatible with USB 2.0 480 Mb/s) | | LAN Interface | Compliance: IEEE802.3 (10Base-T), IEEE 802.3u (100Base-TX)
1 x RJ-45 10/100 Mb/s port | | Power Supply | 100 to 240 VAC, 50/60 Hz
Max power consumption 350 W | | Operating System Support | Windows 8.1 (32-bit/64-bit)
Windows 8 (32-bit/64-bit)
Windows 7 (32-bit/64-bit)
Windows Server 2012 R2
Windows Server 2012
Windows Server 2008 R2
Windows Server 2008
Mac OS X 10.10
Mac OS X 10.9 | | Dimensions (W x H x D) | 7.5 x 12.6 x 15.2" / 19.1 x 32.0 x 38.6 cm | | Weight | 39.7 lb / 18.0 kg | | | | Package Weight | 46.3 lb | | Box Dimensions (LxWxH) | 20.3 x 18.3 x 13.4" |
