User Manual for Buffalo TeraStation 32TB WS5020 4-Bay NAS Server Click to enlarge the picture
Contents of the user manual for the Buffalo TeraStation 32TB WS5020 4-Bay NAS
- Product category: Network Attached Storage Drives Buffalo
- Brand: Buffalo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Buffalo Network Attached Storage Drives
 |
User manual for the Buffalo TeraStation 32TB WS5020 4-Bay NAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Buffalo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Buffalo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Buffalo product will considerably shorten its lifespan!
|

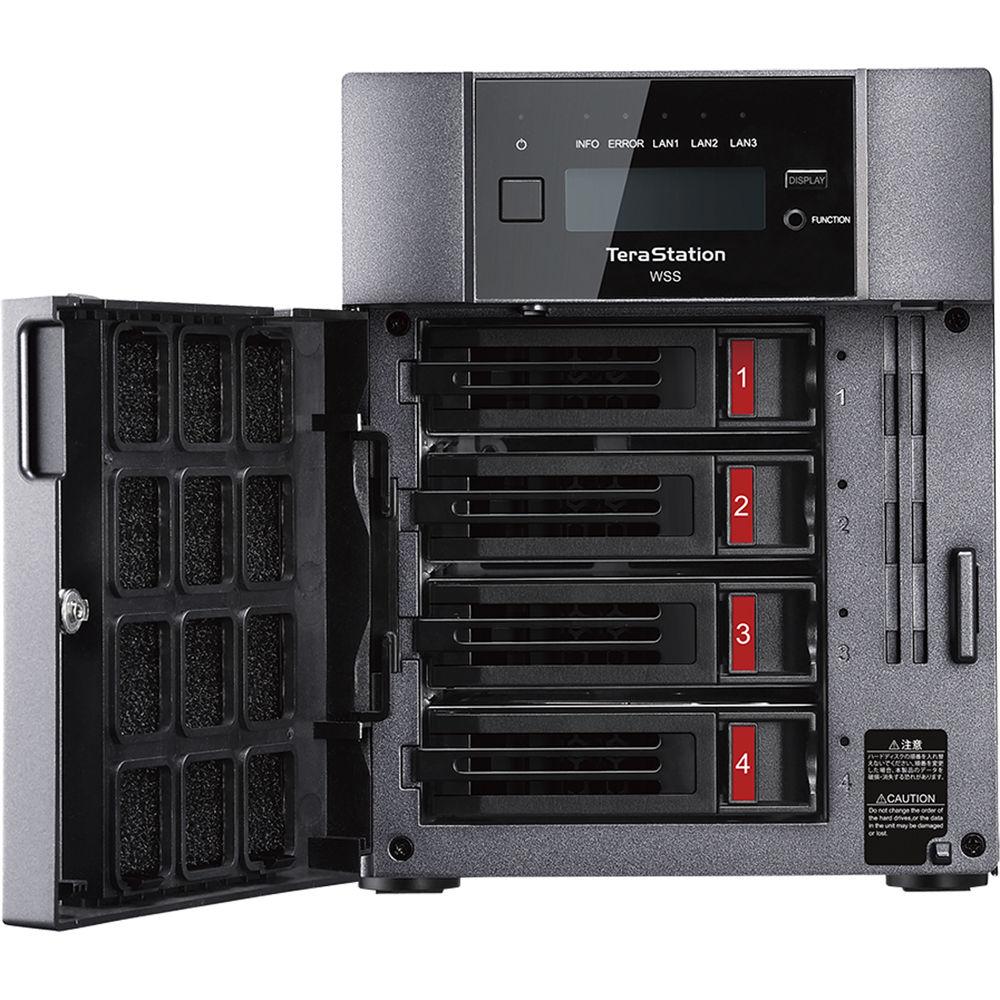

Product description Designed for use in small to medium size business environments, the TeraStation 32TB WS5020 4-Bay NAS Server from Buffalo features four drive bays and supports RAID 0, 1, 5, and JBOD configurations allowing you to arrange the drives to suit your specific storage needs.

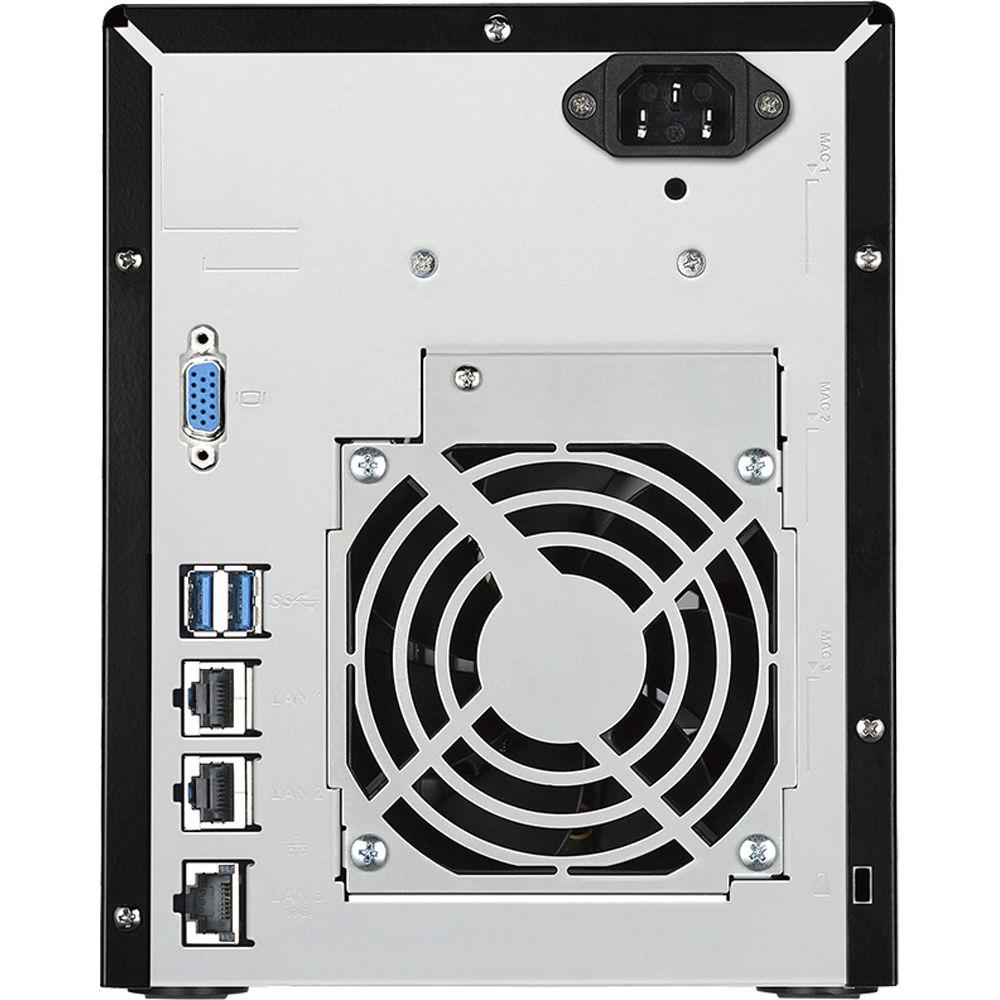

The TeraStation comes equipped with a single 10GbE port and a single 1GbE port for enhanced high-speed network connectivity so you can access files, manage your storage drives, and more with little to no lag. In addition to the built-in network ports, this NAS server also comes equipped with two USB 3.0 Type-A ports to connect compatible USB storage devices directly to the enclosure. Inside the TeraStation, you will find an Intel Atom C3338 processor along with 8GB DDR4 RAM ensuring this server operates smoothly even under the most demanding network conditions. Integrating the WS5020 NAS into existing Windows operating system environments is simple thanks to support for Windows Storage Server 2016 Workgroup Edition so you can get up and running in no time. -
- Pre-tested NAS-grade hard drives come pre-configured RAID 5
- 3-year warranty with 24/7 North America-based support (optional extended warranty)
- Windows Storage Server 2016 Workgroup Edition
- No CAL (Client-Access Licenses) required. Cost-effective storage solution to make full use of existing Windows-based environments
- Efficient and high-speed backup with deduplication feature/native 10GbE port/8GB ECC memory
- Supports a variety of backup and features [Shadow Copy/Azure Backup]
- Highly secured with the latest SMB protocol support (3.1.1)
- Business-level sever/PC backup NovaBACKUP software bundled
- Made in Japan / TAA compliant
UPC: 747464133430 In the Box Buffalo TeraStation 32TB WS5020 4-Bay NAS Server (4 x 8TB) Ethernet Cable AC Cable Front Panel Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Buffalo TeraStation 32TB WS5020 4-Bay NAS Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBuffalo TeraStation WS5020 Specs | Configuration | Desktop | | Operating System | Windows Storage Server 2016 Workgroup Edition | | Installed Hard Drives | Number of Drive
4
Capacity
32 TB
Drive Interface
SATA 6 Gb/s
Supported RAID
0/1/5/JBOD (individual disks) (default 5) | | USB Interface | 2 x USB 3.0 Type-A | | Performance | CPU
Intel Atom C3338
Memory
8 GB DDR4 with ECC | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
10 to 85% non-condensing | | Power | Power Consumption
85 W
Power Supply
Internal 100 to 240 VAC; 50/0 Hz | | Standards Compliance | IEEE802.3an (10GBASE-T)
IEEE802.3bz (5GBASE-T/2.5GBASE-T)
IEEE802.3ab (1000BASE-T)
IEEE802.3u (100BASE- 2TX), IEEE802.3 (10BASE-T) | | Number of Ports | 1 x 10GBASE-T
2 x 1000BASE-T | | Data Transfer Rates | 10 Gb/s, 5 Gb/s, 2.5 Gb/s, 1000 Mb/s, 100 Mb/s, 10 Mb/s | | Connector Type | RJ45 | | Client OS Support | Windows 10, Windows 8.1 (32-bit/64-bit), Windows 7 (32-bit/64-bit), Windows Server 2016, Windows Server 2012, Windows Server 2012R2, Windows Server 2008, Windows Server 2008R2, Mac OS X 10.5 or later | | Dimensions | 9.1 x 6.7 x 8.5" / 23.1 x 17.0 x 21.6 cm | | Weight | 15.9 lb / 7.2 kg |
