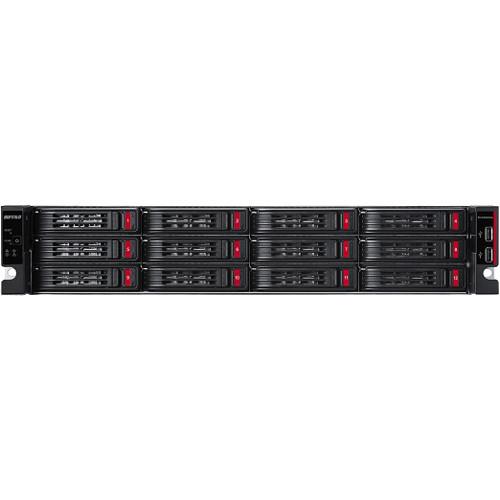

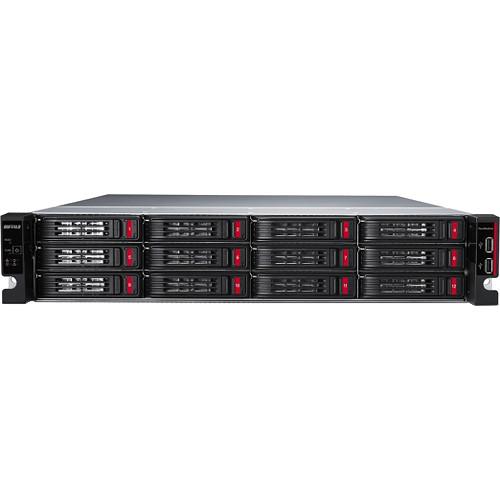

User Manual for Buffalo TeraStation 40TB 51210RH 12-Bay NAS Server Click to enlarge the picture
Contents of the user manual for the Buffalo TeraStation 40TB 51210RH 12-Bay NAS
- Product category: Network Attached Storage Drives Buffalo
- Brand: Buffalo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Buffalo Network Attached Storage Drives
 |
User manual for the Buffalo TeraStation 40TB 51210RH 12-Bay NAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Buffalo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Buffalo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Buffalo product will considerably shorten its lifespan!
|
Product description Built for small and medium businesses that are seeking a user-friendly and cost-effective 10GbE platform, as well as a RAID-based network storage solution for critical applications, the TeraStation 40TB 51210RH 12-Bay NAS Server from Buffalo has a 19" / 2 RU form factor and takes advantage of iSCSI protocols to help move SMB data at enterprise-level speeds and reduce bottlenecks that can occur on slower networks. It has an overall capacity of 40TB, which is made up of 4 x 10TB SATA III 3.5" Nearline hard drives, and is further powered by a 1.7 GHz Annapurna Labs AL314 Alpine Quad-Core processor, 8GB of DDR3 ECC RAM, and the Linux OS, allowing the 51210RH to run multiple concurrent services, including virtualized storage. Connectivity to your network is accomplished using two 10GbE ports and two Gigabit Ethernet ports, and other compatible external peripherals can be connected to the 51210RH using its two USB 3.0 Type-A and two USB 2.0 Type-A ports. If you want to expand the storage capacity of your 51210RH, there are eight empty drive bays.
For those who require RAID support, this NAS supports RAID 0, 1, 5, 6, and 10, each of which offers speed, redundancy, or a combination of both. For those who do not require a RAID, JBOD is available. AES 256-bit encryption helps to ensure that data cannot be accessed on systems other than your TeraStation. Other features include Advanced NTFS Permissions (Windows ACL), VMware certification, Rapid RAID mode change, RAID Mode Manager, Boot Authentication, Rsync, integrated cloud backup with remote access through WebAccess, Duplex Firmware, Active Directory that supports up to 10,000 users/group, and more.
The TeraStation 51210RH is compatible with Windows, Windows Server, and Mac OS, and also supports the TCP/IP protocol and CIFS/SMB, AFP, FTP, SFTP, NFS, and SNMP network file services. Included with this NAS is NovaBACKUP Buffalo Edition software with one server and ten workstation licenses, NAS Navigator 2 software, a network cable, an AC cable, and a rail kit with mounting brackets and screws. Protection is provided by a limited 3-year warranty and 24-hour hard drive replacement. General Features - VMware
- With this device, you can receive assistance from VMware with an ESX problem if one occurs since this NAS device is certified for NFS and iSCSI. This NAS device is on VMware's hardware compatibility list which ensures that while using this NAS device as storage for an ESXi server, users will not be precluded from getting support from VMware.
- Rsync
- Users can back up the TeraStation to their existing rsync-compatible non-Buffalo device. This feature also allows backup for existing rsync-compatible non-Buffalo NAS devices to the TeraStation NAS.
- Replication with TeraStation
- Replication is synchronizing a folder on two separate TeraStations in almost real time. It works in only one way - not bi-directional, from source to destination. It is possible to set-up the function in LAN and WAN. The WAN setup includes the remote connection using port forwarding and a VPN setup
- Intuitive Web Management GUI
- This graphical interface includes a quick startup page for user-friendly setup.
- Powered by Annapurna Labs CPU
- The TeraStation 51210RH is equipped with an Annapurna Labs Alpine AL314 Quad-Core processor and can transfer of large files quickly with with improved file access from multiple computers. Its performance is designed for demanding small, medium, and growing businesses.
- Hot-Swappable Drives for Added Data Security
- With RAID 1 or RAID 5 (full redundancy), even if a drive fails, the TeraStation 51210RH will automatically power down the faulty drive to allow its safe removal and replacement.
- Active Directory
- Works as a client in an Active Directory domain allowing the TeraStation 51210RH to utilize the domain users and groups.
- Disk Quota Allocation
- Disk quota prevents disk space misuse by allocating users with the right amount of space.
- NovaBACKUP
- The TeraStation 51210RH is bundled with 11 licenses of NovaBACKUP Buffalo Edition. NovaBACKUP provides a complete, all-in-one data protection solution for small and medium businesses serious about protecting digital assets.
- Ready for the Cloud
- Buffalo's TeraStation 51210RH comes with B-Sync, enabling users to seamlessly manage files and backups between their TeraStation and Dropbox. Buffalo NAS also works with Amazon S3 Cloud services.
- 24-Hour Hard Drive Exchange
- If ever you need to replace a hard disk drive (HDD), prepayment is no longer necessary and if the order is placed before 12pm and in stock, shipment is dispatched the same day with a 24-hour delivery. This is valid for the duration of the limited 3-year warranty.
UPC: 747464133522 In the Box Buffalo TeraStation 40TB 51210RH 12-Bay NAS Server (4 x 10TB) NAS Navigator 2 NovaBACKUP Buffalo Edition (1 Server & 10 Workstation Licenses) Ethernet Cable AC Cable Rail Kit with Mounting Brackets and Screws 24-Hour Hard Drive Replacement Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Buffalo TeraStation 40TB 51210RH 12-Bay NAS Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBuffalo TS51210RH4004 Specs | | | Capacity | 40 TB (4 x 10 TB SATA III 3.5" Nearline HDDs) | | RAID | RAID 0, 1, 5, 6, 10, and JBOD (individual disks) | | | | Standards Compliance | 2 x USB 3.0 Type-A (5 Gb/s)
2 x USB 2.0 Type-A (480 Mb/s) | | | | CPU | 1.7 GHz Annapurna Labs Alpine AL314 Quad-Core | | Memory | 8 GB ECC DDR3 | | | | Standards Compliance | (10BASE-T) IEEE802.3, (100BASE-TX) IEEE802.3u, (1000BASE-T) IEEE802.3ab, (10GBASE-T) IEEE802.3an, and (NBASE-T) IEEE802.3bz | | Number of Ports | 2 x 10GBASE-T
2 x 1GBASE-T | | Data Transfer Rates | 2.5/5/10 Gb/s
10/100/1000 Mb/s | | Supported Protocols | TCP/IP | | Network File Services | CIFS/SMB, AFP, FTP, SFTP, NFS, and SNMP | | Connector Type | RJ45 | | Failover | Failover solution with other Buffalo NAS devices | | | | Power Supply | 1 (2nd optional) | | Power Consumption | Max: 500 W
Average Active: 122 W
Average Idle: 100 W
Standby: 3.9 W | | Power Supply | Universal 100-240 VAC, 50/60 Hz (internal) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 85% non-condensing | | Form Factor | Rackmount 19" (2 RU) | | | | Active Directory Support | Yes | | Client OS Support | Windows 10, 8.1, and 7
Windows Server 2016, 2012R2, 2012, 2008R2, and 2008
Mac OS X 10.9 and later | | Compatible Hard Drives | OP-HD2.0H2U, OP-HD4.0H2U, and OP-HD8.0H2U | | Redundant Power Supply | OP-PU-10R2U | | Installed OS | Linux | | | | Dimensions | 18.9 x 3.50 x 29.0" / 481 x 88.0 x 737 mm | | Weight | 44.1 lb / 20.0 kg |
