User Manual for Buffalo TeraStation 4TB 1400 4-Drive Entry-Level Small Business Network Storage Click to enlarge the picture
Contents of the user manual for the Buffalo TeraStation 4TB 1400 4-Drive Entry-Level
- Product category: Network Attached Storage Drives Buffalo
- Brand: Buffalo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Buffalo Network Attached Storage Drives
 |
User manual for the Buffalo TeraStation 4TB 1400 4-Drive Entry-Level contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Buffalo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Buffalo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Buffalo product will considerably shorten its lifespan!
|

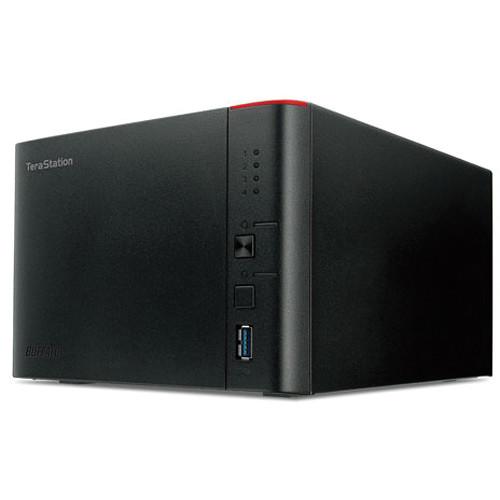

Product description The TeraStation 4TB (4 x 1TB) 1400 4-Drive Entry-Level Small Business Network Storage from Buffalo is a compact, budget-friendly, four-drive desktop storage solution, which is ideal for small businesses, home offices, and professional users. It is also a reliable RAID-based network storage solution for business networks and power users. This NAS system comes with four 1TB SATA hard drives that provide up to 4TB of shared storage space for your network. These drives can be configured with RAID 0, 1, 5, or 10 to provide performance, redundancy, or both. Out of the box, these drives are hardware configured in RAID 5, which offers 3TB of storage space with three drives and the fourth is used as a spare. If a drive does fail, you can replace the drive while the NAS is running since it supports hot swapping.

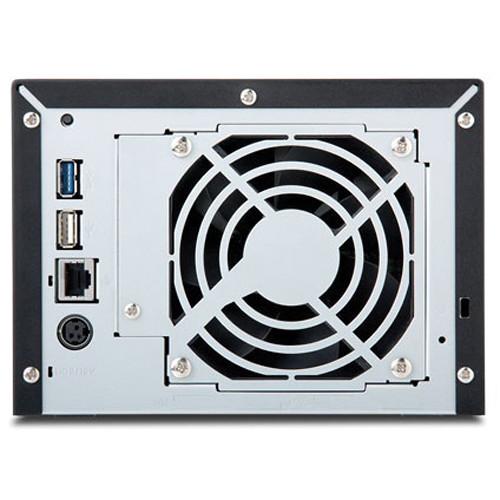

The TeraStation 1400 provides a RJ-45 gigabit Ethernet port, one USB 2.0 port, and two USB 3.0 ports. To handle file transfers and other functions, it is equipped with a 1.2 GHz dual-issue ARM processor and 512MB of DDR3 RAM. With these features, you can utilize this NAS to manage data, perform scheduled or real-time backups, and share data in any business environment. - TeraStation 1400
- You can set up customizable RAID data protection on the TeraStation 1400. It is packed with professional features such as Active Directory support, disk quota support, share level replication, hot-swap hard drives, USB accessory support, and ten licenses of NovaBACKUP Business Essentials.
- 1.2 GHz dual-issue ARM processor, 512MB DDR3
- USB 2.0 port with accessory support

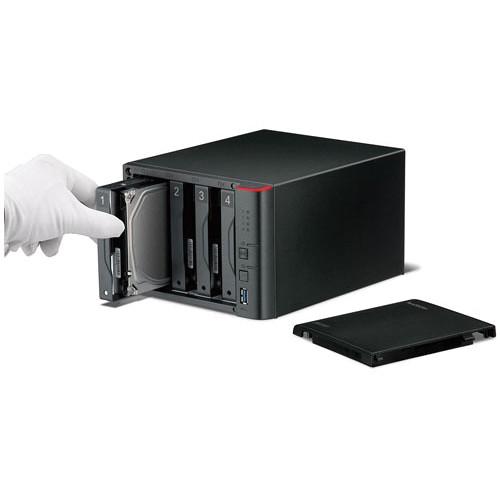

- Hot-swap SATA hard drives
- Hot-spare
- RAID 0/1/5/10/JBOD (Individual Disks)
- Active Directory integration
- Disk quota support
- Scheduled or real-time replication to other TeraStation devices
- TeraStation NAS Operating System
- TeraStation 1400 runs on Buffalo's TeraStation NAS System providing a host of business-class features from network file sharing and security to RAID management, remote access, and more. Managing data, backups, and data sharing in a production environment or larger business is made easy with this NAS operating system. Included on all Buffalo TeraStation devices, TeraStation NAS System simplifies your everyday data needs.
- Dual-Issue ARM Processor
- TeraStation 1400 features a dual-issue 1.2 GHz ARM processor that provides performance during file transfers and everyday NAS functions.
- Reliable and Secure
- TeraStation 1400 offers high capacity that is accessible among multiple platforms for seamless centralized storage and backup. Create user and group profiles as well as control folder and file access to protect business-critical content and privacy. Support for multiple levels of RAID provides continuous data protection and increased fault tolerance and data availability.
- RAID 0 combines all drives into a single array offering maximum capacity with no redundancy.
- RAID 1 mirrors two arrays, creating an exact copy of data for fault tolerance.
- RAID 5 stripes the data across all four drives, interspersing parity data to provide an efficient blend of fault tolerance and storage capacity.
- RAID 10 mirrors two sets of hard drives and combines them into a single array, striping data across all mirrored sets for fault tolerance and increased performance.
- Data Protection and Backup
- TeraStation 1400 features Buffalo's replication technology providing real-time synchronous replication of data for easy, continuous data protection in the event of data loss. Additionally, TeraStation 1400 is bundled with 10 licenses of NovaBACKUP Business Essentials, providing a complete, all-in-one data protection solution for PCs, storage servers, Exchange servers, and SQL databases.
- Remote File Access
- TeraStation 1400 offers multiple ways to remotely access and share your important data for enhanced collaboration and productivity. With WebAccess and FTP/SFTP servers, you can securely access and share files with anyone outside the local network. Trusted recipients can access selected files from anywhere over the Internet and you can access data remotely from tablet and smartphone devices with WebAccess.
UPC: 747464129204 In the Box Buffalo TeraStation 4TB (4 x 1TB) 1400 4-Drive Entry-Level Small Business Network Storage Limited 3-Year Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Buffalo TeraStation 4TB 1400 4-Drive Entry-Level Small Business Network Storage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Buffalo TeraStation 4TB 1400 4-Drive Entry-Level Small Business Network Storage can be downloaded in PDF format at the link stated below.
Technical parametersBuffalo TS1400D0404 Specs | | | CPU | 1.2 GHz ARM | | Total Installed Memory | 512 MB DDR3 | | | | Number of Bays | 4 x 3.5" | | Connections | 1 x USB Type-A (USB 2.0 (480 Mb/s))
2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s)) | | Compatible Drive Interface | SATA II | | Form Factor | Desktop | | RAID Modes | RAID 0, 1, 10, 5, JBOD | | | | Supported Protocols | AFP
CIFS/SMB
FTP
HTTP
HTTPS
NFS
SFTP | | Ethernet Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | 150 W (Maximum) | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 10 to 80% | | | | Dimensions | 8.9 x 7.0 x 5.0" / 22.7 x 17.7 x 12.8 cm | | Weight | 11.9 lb / 5.4 kg | | | | Package Weight | 13.3 lb | | Box Dimensions (LxWxH) | 14.0 x 12.2 x 10.8" |
