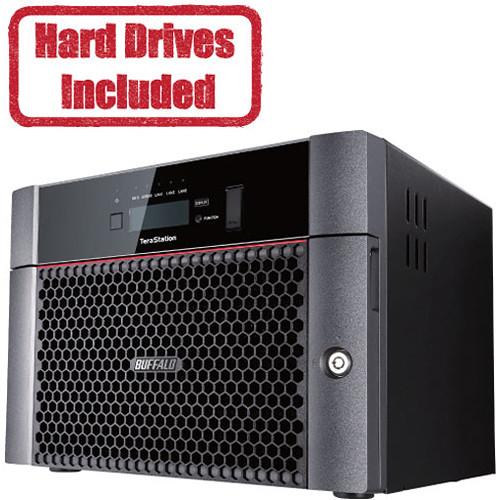

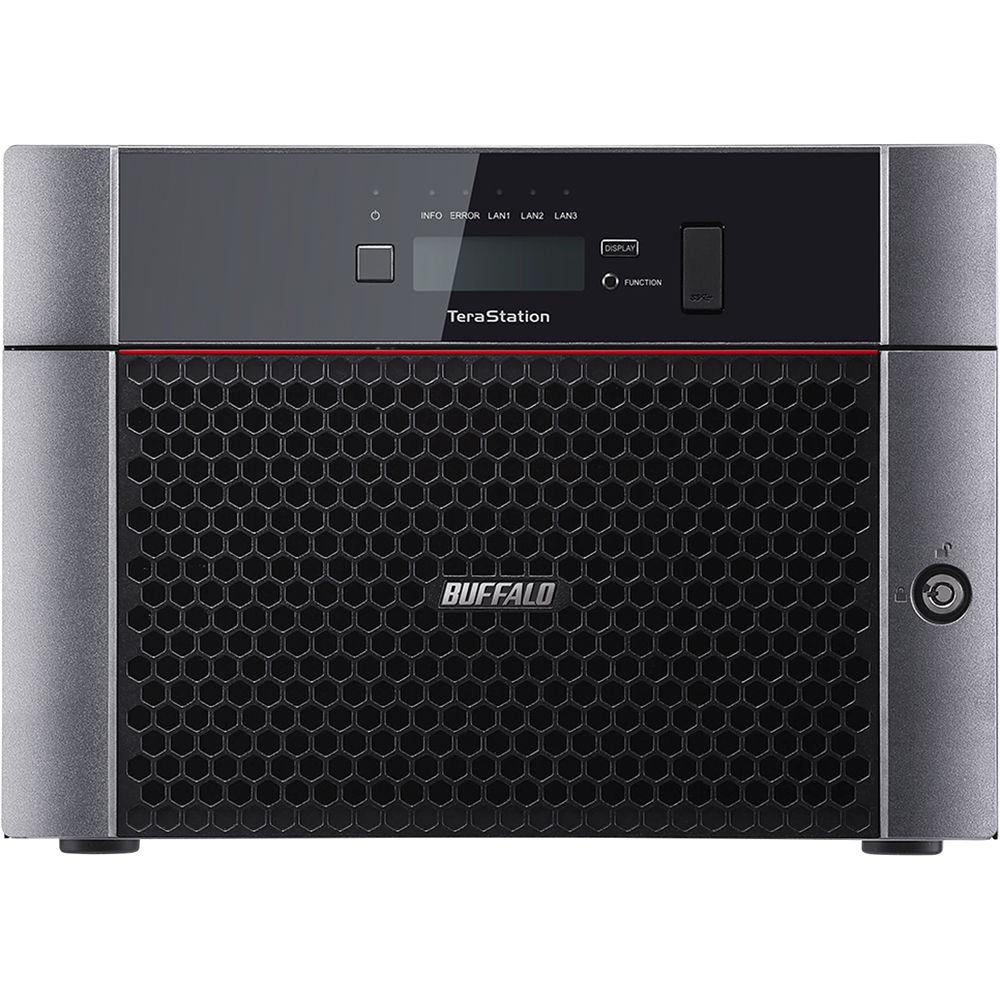

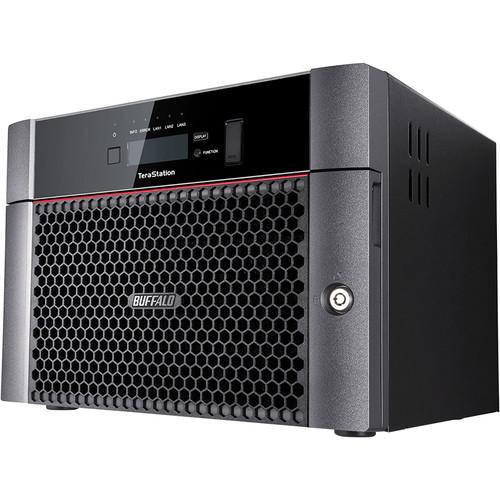

User Manual for Buffalo TeraStation 64TB 5810DN 8-Bay NAS Server Click to enlarge the picture
Contents of the user manual for the Buffalo TeraStation 64TB 5810DN 8-Bay NAS
- Product category: Network Attached Storage Drives Buffalo
- Brand: Buffalo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Buffalo Network Attached Storage Drives
 |
User manual for the Buffalo TeraStation 64TB 5810DN 8-Bay NAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Buffalo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Buffalo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Buffalo product will considerably shorten its lifespan!
|
Product description Built for organizations looking to add 10GbE connectivity and virtualized storage to their network, the TeraStation 64TB 5810DN 8-Bay NAS Server from Buffalo is a high-performance scalable storage solution for businesses. It takes advantage of an iSCSI protocol designed to move data at enterprise-level speeds and helps to eliminate bottlenecks that can occur on slower networks.

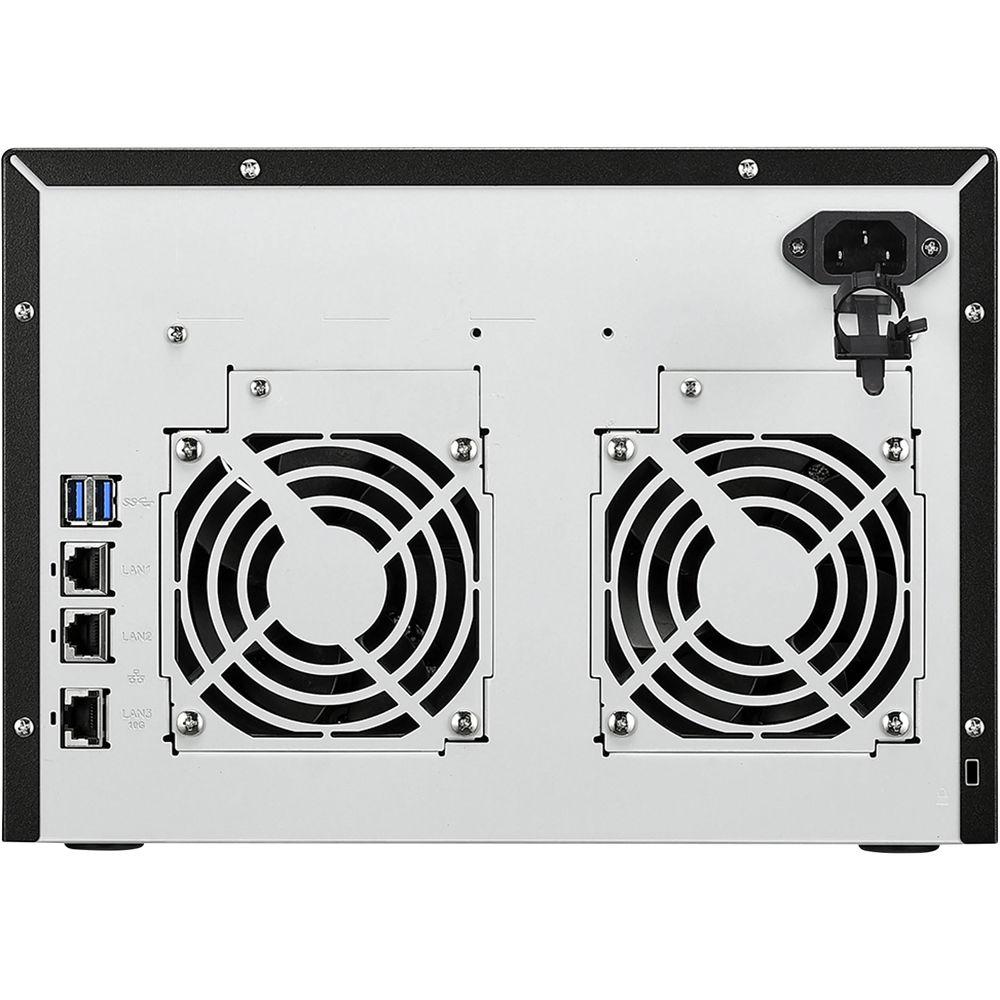

The TeraStation 5810DN has an overall capacity of 64TB, which is made up of 8 x 8TB SATA III 3.5" NAS hard drives, and is further powered by a 1.7 GHz Annapurna Labs AL314 Alpine Quad-Core processor, 4GB of DDR3 ECC RAM, and Linux OS, allowing the 5810DN to run up to 100 concurrent sessions. Connectivity to your network is accomplished using one 10GbE port and two Gigabit Ethernet ports, and other compatible external peripherals can be connected to the 5810DN using its three USB 3.0/2.0 Type-A ports.
For those who require RAID support, this NAS supports RAID 0, 1, 5, 6, and 10, each of which offers speed, redundancy, or a combination of both. For those who do not require a RAID, JBOD is available. AES 256-bit encryption helps to ensure that data cannot be accessed on systems other than your TeraStation. Other features include Advanced NTFS Permissions (Windows ACL), VMware certification, RAID Mode Manager, Boot Authentication, Rsync, integrated cloud backup, Duplex Firmware,and Active Directory that supports up to 10,000 individual users, and more.
The TeraStation 5810DN is compatible with Windows, Windows Server, and Mac OS, and also supports the TCP/IP protocol and CIFS/SMB, AFP, FTP, SFTP, NFS, and SNMP network file services. Included with this NAS is NAS Navigator 2 software, NovaBACKUP Buffalo Edition software with 1 server and 10 workstation licenses, a network cable, an AC cable, and a front panel key. Protection is provided by a limited 3-year warranty and 24-hour hard drive replacement. General Features - 10GbE Connectivity
- 10 Gigabit Ethernet connectivity delivers faster transfer speeds than Gigabit Ethernet.
- VMware
- With this device, you can receive assistance from VMware with an ESX problem if one occurs since this NAS device is certified for NFS and iSCSI. This NAS device is on VMware's hardware compatibility list which ensures that while using this NAS device as storage for an ESXi server, users will not be precluded from getting support from VMware.
- Rsync
- Users can back up the TeraStation to their existing rsync-compatible non-Buffalo device. This feature also allows backup for existing rsync-compatible non-Buffalo NAS devices to the TeraStation NAS.
- Increased User Groups
- Works as a client in an Active Directory domain allowing the TeraStation to utilize the domain users and groups. TeraStation 5810DN NAS devices pull from an Active Directory allowing it to be targeted to businesses with up to 10,000 domain users and groups.
- Intuitive Web Management GUI
- This graphical interface includes a quick startup page for user-friendly setup.
- Powered by Annapurna Labs CPU
- The TeraStation 5810DN is equipped with an Annapurna Labs Alpine AL314 Quad-Core processor and can transfer of large files quickly with improved file access from multiple computers. Its performance is designed for demanding small, medium, and growing businesses.
- Hot-Swappable Drives for Added Data Security
- With RAID 1 or RAID 5 (full redundancy), even if a drive fails, the TeraStation 5810DN will automatically power down the faulty drive to allow its safe removal and replacement.
- Ready for the Cloud
- Buffalo's TeraStation 5810DN comes with B-Sync, enabling users to seamlessly manage files and backups between their TeraStation and Dropbox. Buffalo NAS also works with Amazon S3 Cloud services.
- 24-Hour Hard Drive Exchange
- If ever you need to replace a hard disk drive (HDD), prepayment is no longer necessary and if the order is placed before 12pm and in stock, shipment is dispatched the same day with a 24-hour delivery. This is valid for the duration of the limited 3-year warranty.
- iSCSI Target Support
- Works simultaneously as NAS and iSCSI target.
- Replication with TeraStation
- Replication is synchronizing a folder on two separate TeraStations in almost real time. It works in only one way - not bi-directional, from source to destination. It is possible to set-up the function in LAN and WAN. The WAN setup includes the remote connection using port forwarding and a VPN setup
- NovaBACKUP
- The TeraStation 5810DN is bundled with 11 licenses of NovaBACKUP Buffalo Edition. NovaBACKUP provides a complete, all-in-one data protection solution for small and medium businesses serious about protecting digital assets.
- Three USB 3.0 Type-A Ports
- Configured with three USB 3.0 Type-A ports for greater flexibility, users will be able to add an external hard drive or UPS (Uninterruptible Power Supply) to their NAS.
- RAID Support
- The TS5810DN is ready for intensive data storage tasks. Users can choose from multiple levels of RAID support (0/1/5/6/10/JBOD) for customized capacity and redundancy according to their specific needs.
- Disk Quota Allocation
- Disk quota prevents disk space misuse by allocating users with the right amount of space.
UPC: 747464133188 In the Box Buffalo TeraStation 64TB 5810DN 8-Bay NAS Server (8 x 8TB) NAS Navigator 2 NovaBACKUP Buffalo Edition (1 Server & 10 Workstation Licenses) Ethernet Cable AC Cable Front Panel Key 24-Hour Hard Drive Exchange Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Buffalo TeraStation 64TB 5810DN 8-Bay NAS Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBuffalo 5810 Specs | | | CPU | 1.7 GHz Annapurna Labs Alpine AL314 Quad-Core | | Total Installed Memory | 4 GB ECC DDR3 | | | | Total Raw Capacity | 64 TB | | Included Drives | 8 x 8 TB 3.5" HDD | | Interface | SATA III | | | | Connections | 3 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
1 x RJ45 (10GbE)
2 x RJ45 (Gigabit Ethernet) | | Form Factor | Desktop | | RAID Modes | RAID 0, 1, 10, 5, 6, JBOD | | | | Supported Protocols | AFP
CIFS/SMB
FTP
NFS
SFTP
SNMP | | Ethernet Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u | | | | Installed Operating System | Linux | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | 150 W (Maximum)
87 W (Idle)
4.5 W (Standby) | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 85% | | | | Dimensions | 11.8 x 8.5 x 9.1" / 30.0 x 21.6 x 23.1 cm | | Weight | 27.6 lb / 12.5 kg | | | | Package Weight | 31.25 lb | | Box Dimensions (LxWxH) | 16.7 x 14.1 x 14.0" |
