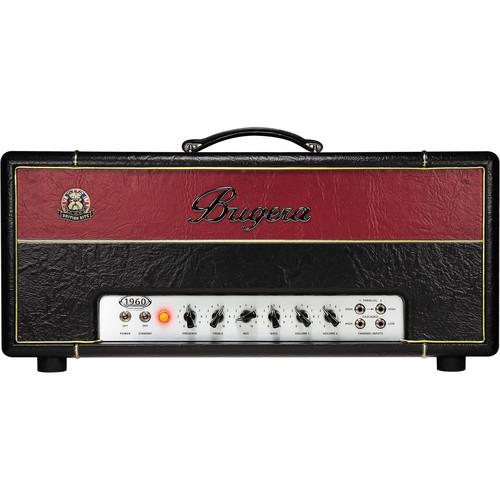

User Manual for Bugera 1960 INFINIUM 150-Watt Tube Guitar Amplifier Head Click to enlarge the picture
Contents of the user manual for the Bugera 1960 INFINIUM 150-Watt Tube Guitar
- Product category: Guitar Amplifiers Bugera
- Brand: Bugera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bugera Guitar Amplifiers
|
User manual for the Bugera 1960 INFINIUM 150-Watt Tube Guitar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bugera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bugera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bugera product will considerably shorten its lifespan!
|
Product description The 1960 INFINIUM 150-Watt Tube Guitar Amplifier Head from Bugera features a hand-built, two-channel design based upon classic British amplifiers from the `60s, `70s, and `80s. Its preamp section has three ECC83 tubes while its power section is driven by four EL34s and is capable of 150-watts of output. The 1960 INFINIUM's two-channels can be used in separate, parallel, or cascading operation. Separate operation lets you use one channel at a time, or you can use both channels simultaneously while in parallel operation. Cascading operation drives the output of the first channel into the input of the second channel, providing Hi-Gain tones. You can also drive independent signals to channels one and two.
The 1960 INFINIUM features Bugera's INFINIUM Tube Life Multiplier Technology, which is designed to lengthen tube life and optimize their output by dynamically balancing the drive between them to evenly distribute the load. When you do need to replace a tube, the system will indicate which one with its back panel LED indicators. The 1960 INFINIUM additionally has an output impedance switch, allowing you to select between four, eight, and 16 ohms for compatibility with a variety of speaker cabinets. - Master Control knob comes post-phase splitter with true bypass for accurate control
- Effects loop allows you to select between +4 and -10dB levels and features true bypass
In the Box Bugera 1960 INFINIUM 150-Watt Tube Guitar Amplifier Head Limited 1-Year Warranty, Extends to 3 with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Bugera 1960 INFINIUM 150-Watt Tube Guitar Amplifier Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBugera 1960 Specs | | | Tubes | 3x ECC83 | | Inputs | Parallel Inputs:
2x 1/4" High Gain
Cascading Inputs:
1x 1/4" High Gain
1x 1/4" Low Gain
Normal Inputs:
1x 1/4" High Gain
1x 1/4" Low Gain | | Controls | 1x Power switch
1x Standby switch
1x Presence control knob
1x Treble control knob
1x Mid control knob
1x Bass control knob
1x Volume 1 control knob
1x Volume 2 control knob
1x Master Post Phase Inverter control knob
1x Phase Inverter Bypass button
1x FX Loop Bypass button
1x +4/-10 dB FX Loop Level button
1x Impedance Selector switch | | Effects Loop | 1x 1/4" Send
1x 1/4" Return
Switchable (+4/-10 dB operation) | | | | Tubes | 4x EL34 | | Volume Management | 1x Master volume control knob (post phase inverter) | | Output Power | 150 Watts | | Output Impedance | Selectable 4, 8, 16 Ω | | Output Connections | 2x 1/4" Speaker | | | | Dimensions (W x D x H) | 27.2 x 9.6 x 12.2" (69.0 x 24.5 x 31.0 cm) | | Weight | 49 lb (22 kg) | | | | Package Weight | 55.0 lb | | Box Dimensions (LxWxH) | 30.6 x 16.0 x 14.0" |
