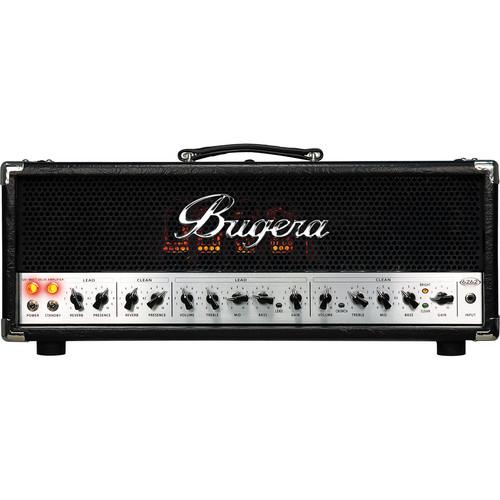

User Manual for Bugera 6262 INFINIUM 120-Watt 2-Channel Guitar Amplifier Head Click to enlarge the picture
Contents of the user manual for the Bugera 6262 INFINIUM 120-Watt 2-Channel Guitar
- Product category: Guitar Amplifiers Bugera
- Brand: Bugera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bugera Guitar Amplifiers
|
User manual for the Bugera 6262 INFINIUM 120-Watt 2-Channel Guitar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bugera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bugera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bugera product will considerably shorten its lifespan!
|
Product description The Bugera 6262 INFINIUM 120-Watt 2-Channel Guitar Amplifier Head features two hand-built channels with a tonal midrange designed for '80s rock and metal sounds. The Clean/Crunch channel has two modes of operation; Clean and Crunch. On the Clean setting, the amp provides an overdrive style that reacts to changes in the instrument's volume and the player's picking attack. The Crunch setting adds more gain for classic rock tones. The 6262 INFINIUM's Lead channel is designed to provide even higher levels of gain with increased sustain and harmonics, allowing your performance to cut through the band. Both channels have independent Volume, Gain, Reverb, and Presence knobs, as well as Treble, Mid and Bass controls.
The 6262 INFINIUM has Bugera's INFINIUM Tube Life Multiplier Technology, which is designed to lengthen the life of your tubes and optimize their output by dynamically balancing the drive between them to evenly distribute the load. When you do need to replace a tube, the system will indicate which one with its back-panel LED indicators
The amp also has two 1/4" speaker outputs with selectable four-, eight-, or 16-ohm impedance for driving external speakers. You can switch between the two channels with the included footswitch, and engage or disengage the effects loop. A 1/4" rear-panel preamp output can be used for direct-out recording to your DAW or recording device. - EQ Section
- The 6262 INFINIUM's channel independent EQ features Bass, Mid, and Treble controls, as well as Presence
- Tube Powered
- The preamp section is powered by six 12AX7 tubes, while the power section features four 6L6 tubes that can be swapped out for EL34s
UPC: 705105162782 In the Box Bugera 6262 INFINIUM 120-Watt 2-Channel Guitar Amplifier Head Footswitch Limited 1-Year Warranty, Extends to 3 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Bugera 6262 INFINIUM 120-Watt 2-Channel Guitar Amplifier Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBugera 6262 Specs | | | Tubes | 6x 12AX7 | | Channels | 1x Clean/Crunch
1x Lead | | Inputs | 1x 1/4" (6.35 mm) TS
1x Footswitch | | Controls | Master Section:
1x Power switch
1x Standby switch
1x Rear Panel 4, 8, 16 Ω Impedance switch
Clean/Crunch Channel:
1x Clean button
1x Crunch button
1x Bright button
1x Volume control knob
1x Gain control knob
1x Presence control knob
1x Reverb control knob
1x Treble control knob
1x Mid control knob
1x Bass control knob
Lead Channel:
1x Lead button
1x Volume control knob
1x Gain control knob
1x Presence control knob
1x Reverb control knob
1x Treble control knob
1x Mid control knob
1x Bass control knob | | Preamp Output | 1x 1/4" (6.35 mm) jack | | Effects Loop | 1x 1/4" (6.35 mm) Send jack
1x 1/4" (6.35 mm) Return jack | | | | Tubes | 4x 6L6 (convertible to EL34s) | | Outputs | 2x 1/4" (6.35 mm) TS | | | | Footswitch | 1x Clean/Crunch Channel button
1x Lead Channel button
1x FX Loop button | | Dimensions (WxDxH) | 26.7 x 9.8 x 10.8" (68.0 x 25.0 x 27.5 cm) | | Weight | 47.3 lb (21.5 kg) | | | | Package Weight | 54.85 lb | | Box Dimensions (LxWxH) | 31.0 x 15.3 x 14.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
