User Manual for Bugera G20 INFINIUM 20W 2-Channel Tube Guitar Amplifier Head Click to enlarge the picture
Contents of the user manual for the Bugera G20 INFINIUM 20W 2-Channel Tube
- Product category: Guitar Amplifiers Bugera
- Brand: Bugera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bugera Guitar Amplifiers
 |
User manual for the Bugera G20 INFINIUM 20W 2-Channel Tube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bugera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bugera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bugera product will considerably shorten its lifespan!
|

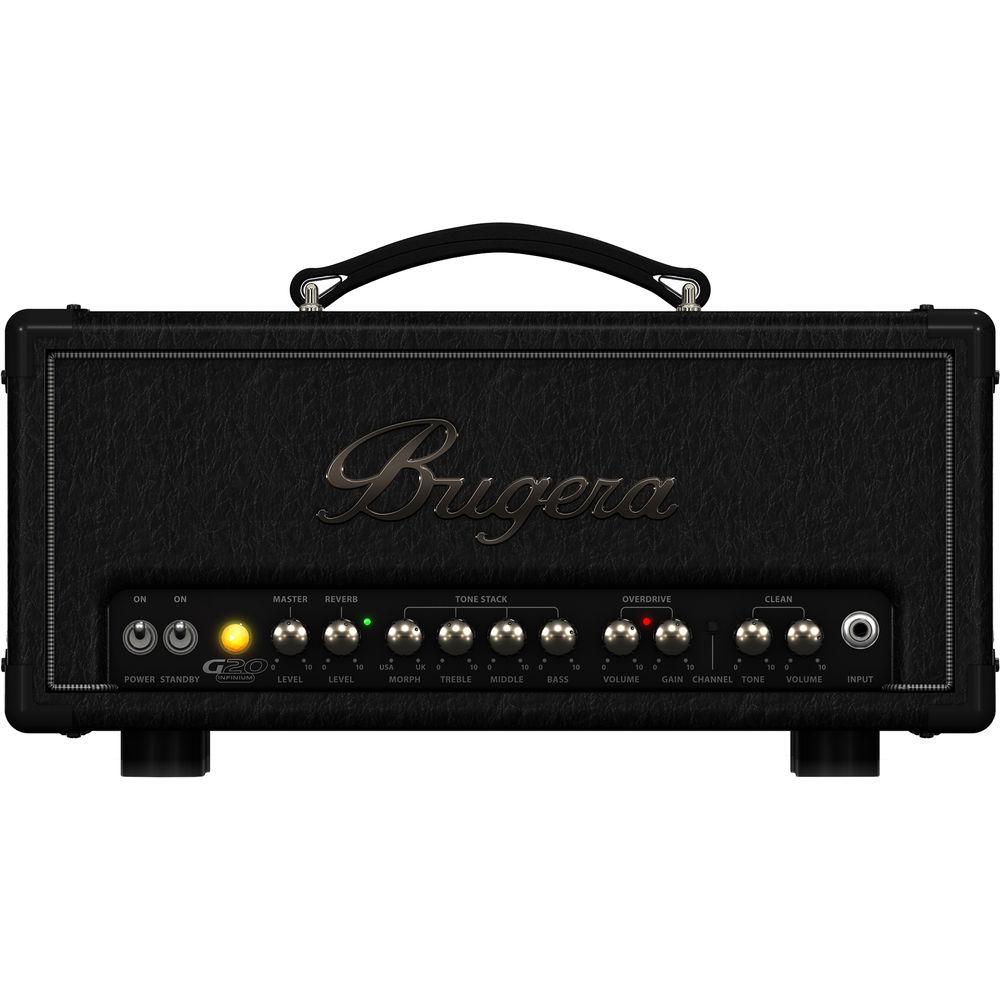

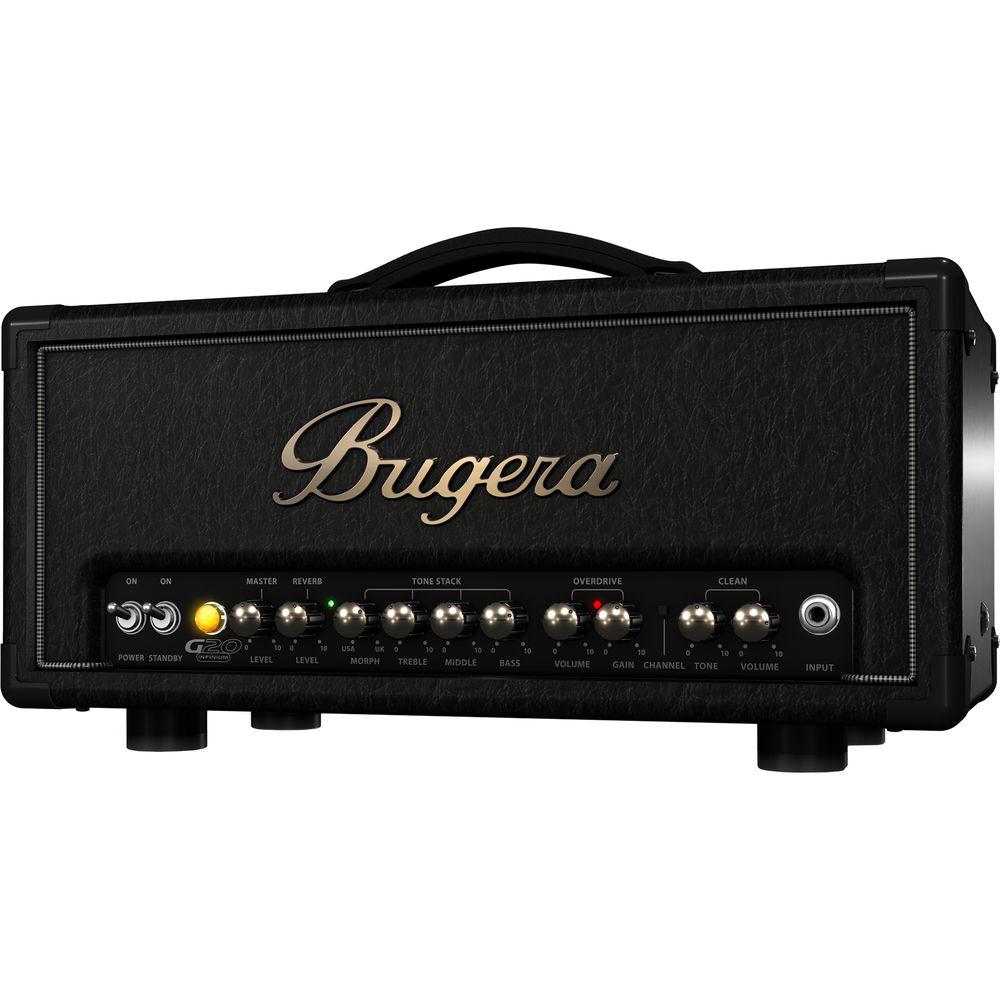

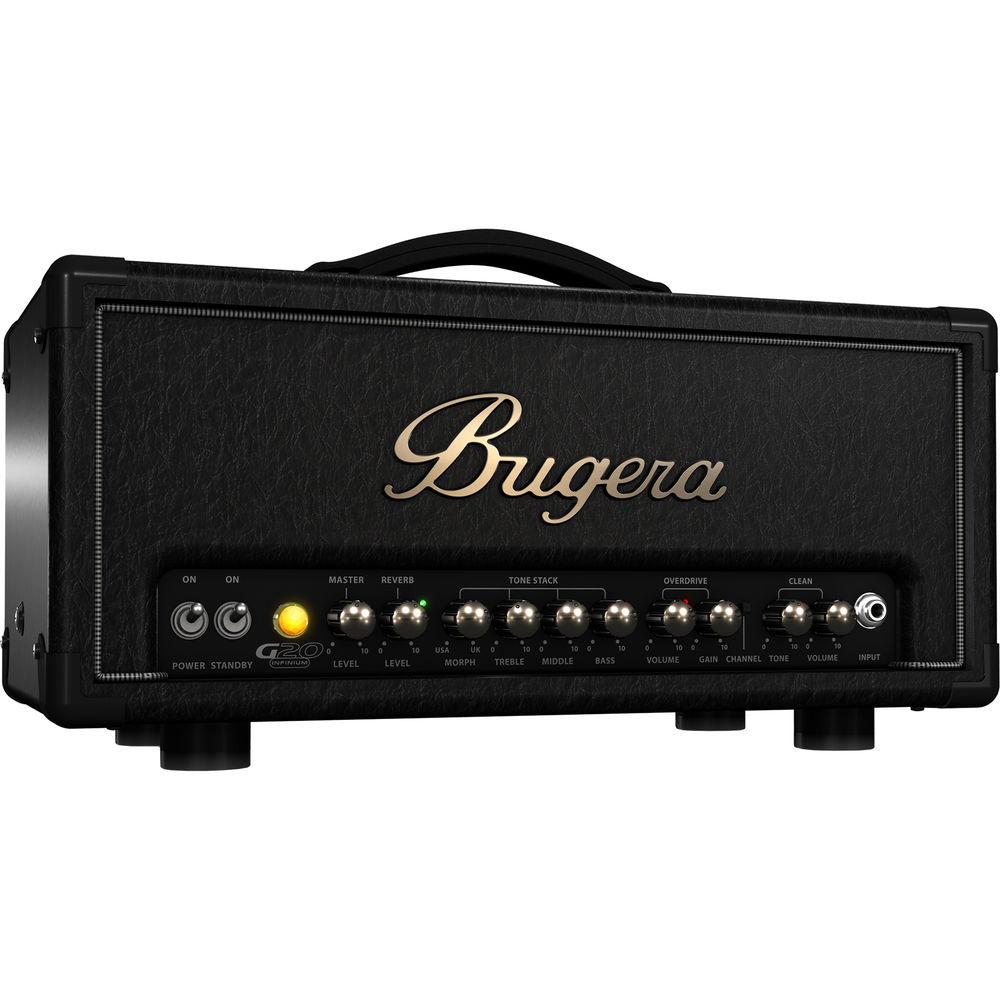

Product description Bring some tube tone with you to your next gig with the Bugera G20 INFINIUM Amplifier Head. Just simply plug it into a (separately available) speaker cabinet, adjust the gain, tone, and volume knobs, maybe bring in a little reverb, and start rocking. The dual-channel design expands the palette of tones available from this amp at any given time. The Clean channel offers simple Volume and Tone controls for easily dialing in a bright or mellow clean sound. The Overdrive channel brings a gain control along with a 3-band EQ and a MORPH control for fine-tuning your distorted sound. A two-button footswitch for channel selection and toggling reverb is included. - Classic Tube Design with MORPH EQ
- The G20 head features a dual ECC83 front-end and a dual EL34 power stage. This tube design provides sweetly-balanced harmonics and natural tube compression—resulting in the warm distortion and break-up reminiscent of the vintage megaliths of yesteryear—in a portable and attractive package.Even though the EL34 evokes British-style tones, the MORPH EQ can be dialed in on the Overdrive channel for "puddle-jumping" the tone stack for a more American tone. Since the MORPH EQ can be tuned with a dedicated knob, you can choose to have all British, all American, or, the best of both worlds, somewhere in between.
- INFINIUM Technology
- By continuously monitoring the tube circuitry, INFINIUM lengthens tube life and keeps your tone consistent throughout the life of your tubes. When INFINIUM detects a change in tube operation due to aging or otherwise, it dynamically adjusts the circuitry so the tubes operate at their optimal load.INFINIUM also knows when a tube needs to be replaced and will illuminate an LED by the offending tube to notify you. Auto-Bias circuitry allows you to replace the tube without any esoteric or potentially dangerous adjustments that would require a trip to an amp tech.
- Effects Loop
- Insert effects into your signal chain after the preamp but before the power amp. Some effects (usually delays and other ambient effects) work best after the amplifiers pre-amp, keeping your overdriven sound from getting muddy. A level switch ensures that your signal will stay at unity gain after going through several stompboxes.
- Built-In Reverb
- Use the built-in Reverb to put the finishing touch to your sound. Adjustable via the dedicated control on the front panel, you can dial in the level you desire-from a subtle touch to the cavernous, natural-sounding reverberation of a large arena.
- Speaker-Emulated Headphone Output
- Plug a pair of headphones into the dedicated output on the rear panel for full-sounding speaker-emulated tones. This output will still work while the bypass switch is engaged, so you can practice silently. Sound sources plugged into the AUX input will also play through the headphones, enabling you to play along to your favorite songs and backing tracks.

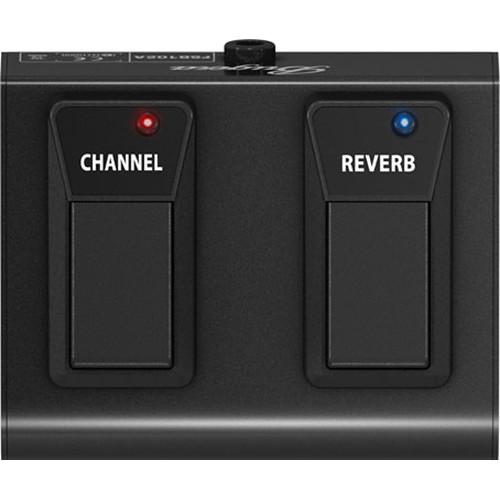

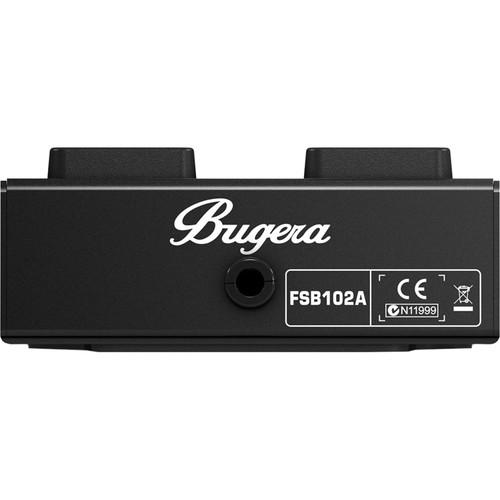

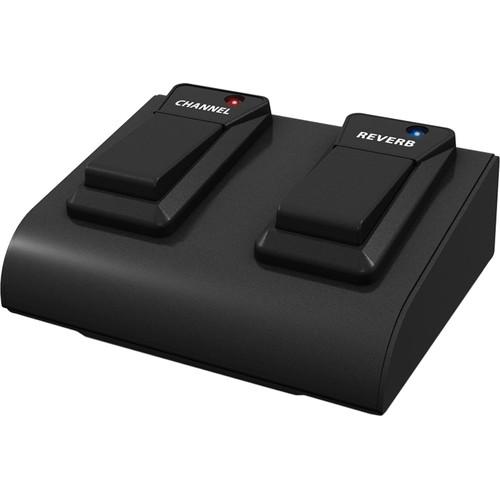

- 2-Button Footswitch
- With the included footswitch, you can quickly change channels or engage/disengage the built-in reverb effect. The footswitch is housed in a heavy-duty metal casing with a 15' integrated cable and has status LEDs to indicate which channel is active and whether reverb is on or off.

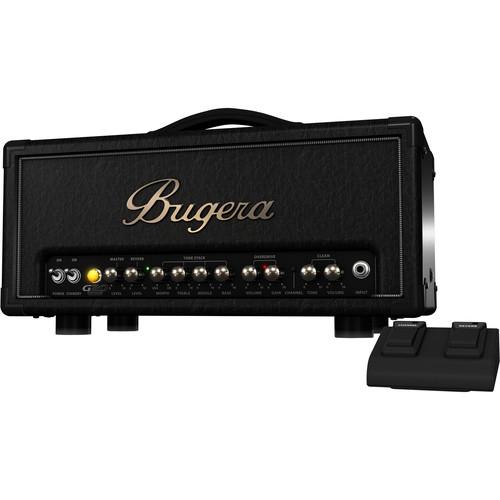

In the Box Bugera G20 INFINIUM 20W 2-Channel Tube Guitar Amplifier Head FSB102A Heavy-Duty 2-Button Footswitch for Bugera Amps Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bugera G20 INFINIUM 20W 2-Channel Tube Guitar Amplifier Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

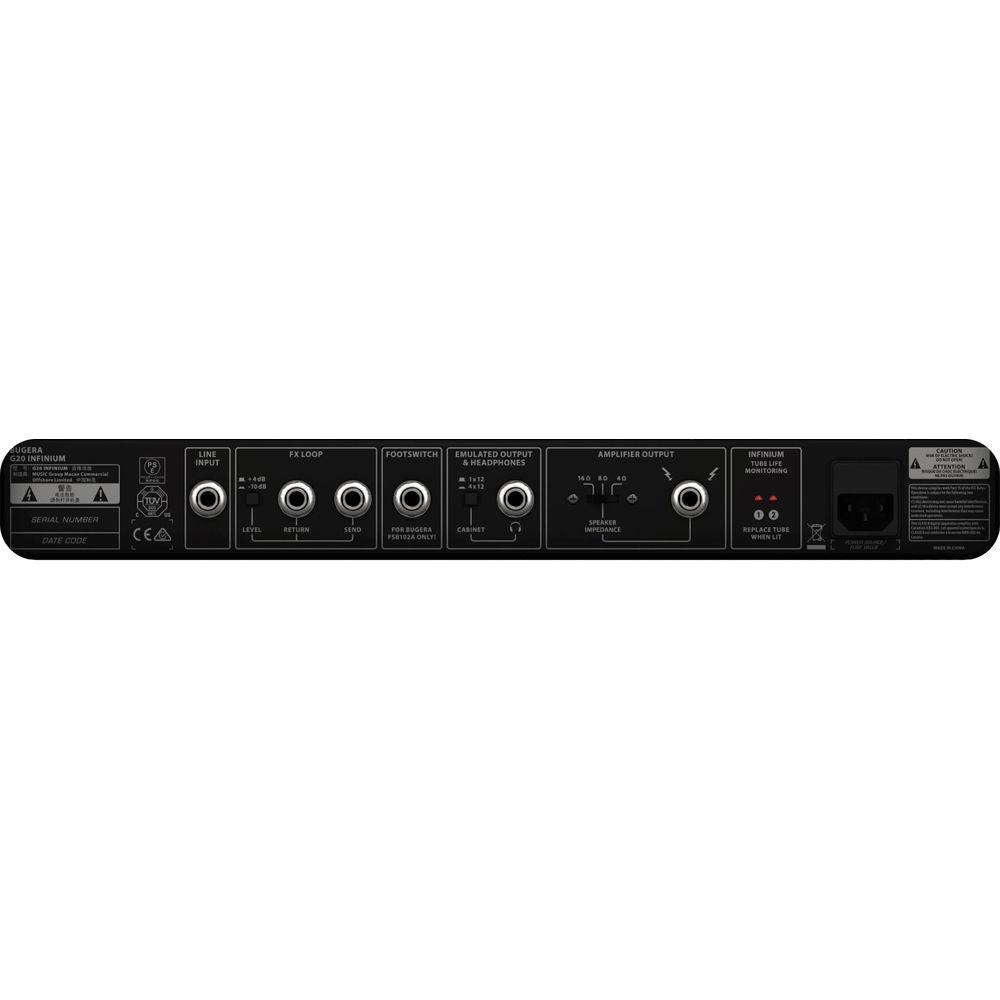

Technical parametersBugera G20-INFINIUM Specs | | | Amplifier Type | Tube | | Output Power | 20 W | | Channels | 2 | | Tube Types | 2 x Preamp 12AX7/ECC83
2 x Power EL34/6CA7 | | Output Impedance | 16/8/4 Ohms Mono | | Effects Loop | Yes | | Built-In Effects | Digital Reverb | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument
1 x 1/4" Mono Effects Return
1 x 1/4" Stereo Line Level
1 x 1/4" Stereo Footswitch | | Outputs | 1 x 1/4" Mono Speaker
1 x 1/4" Mono Effects Send
1 x 1/4" Stereo Headphone | | Tone Section | Channel 1: Channel Volume, Gain, Tone
Channel 2: Channel Volume, Tone | | EQ | 3-Band Graphic | | | | Dimensions (WxHxD) | 9.4 x 18.4 x 9.1" / 240.0 x 468.0 x 231.0 mm Amplifier | | Weight | 22.71 lb / 10.3 kg Amplifier |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Bugera G20 INFINIUM 20W 2-Channel Tube Guitar Amplifier Head
| Subject: Bugera G5 Infinium and G20 Infinium. | | Date: 20.11.2022 03:00:40 | Name: John Wilkins | Hello,
I have replaced the tubes in my G5 but it did not work.
I had my G20 amp on and it only has about 4 or 5 hours on it,
I heard a loud buzzing shorting out sound and then a loud pop.
On the wall behind the amp I seen a reflection of sparks.
Would that be the tubes and if so, why didn't I get several hours on it ? | | Post reply |
