User Manual for Bugera PS1 Power Soak - Passive 100W Power Attenuator and DI Box Click to enlarge the picture
Contents of the user manual for the Bugera PS1 Power Soak - Passive
- Product category: System Processors Bugera
- Brand: Bugera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bugera System Processors
 |
User manual for the Bugera PS1 Power Soak - Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bugera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bugera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bugera product will considerably shorten its lifespan!
|

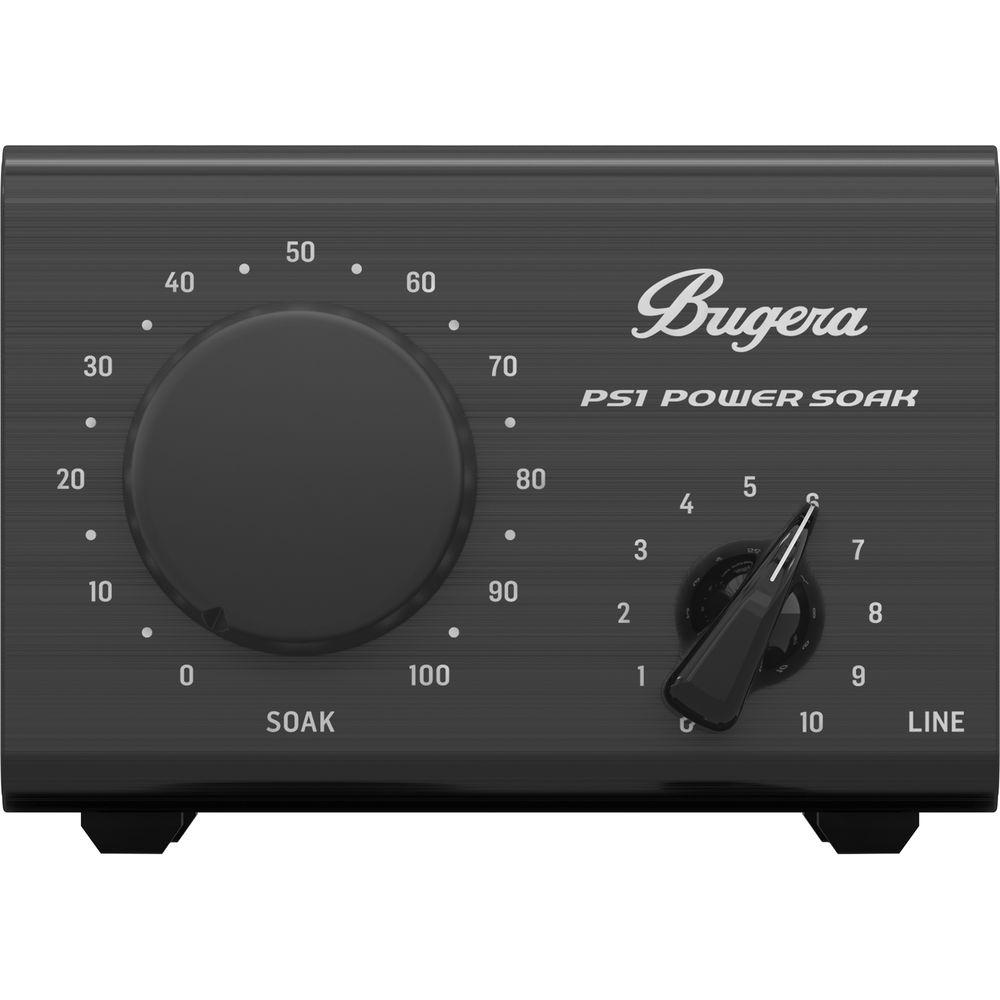

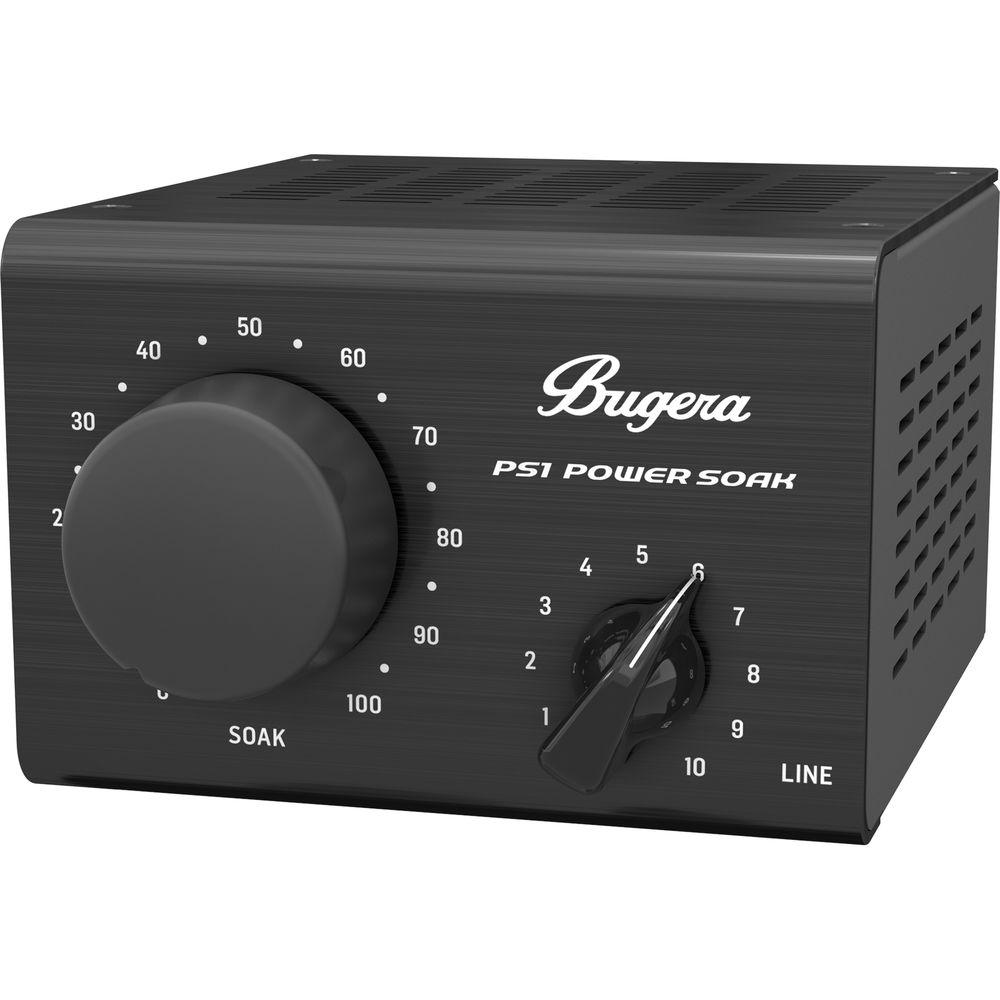

Product description The Bugera PS1 Power Soak is a tool quite handy for guitar players looking to crank out their best overdriven sounds at lower volumes. Simply insert the PS1 in the chain between your 100W amplifier and your speaker cabinet, dial in the blistering amp tone you crave, grab hold of the large Soak knob, and bring the level down until you're not annoying your bandmates or neighbors anymore. As you do this, you'll notice that even though your volume decreases, your overall timbre stays the same.

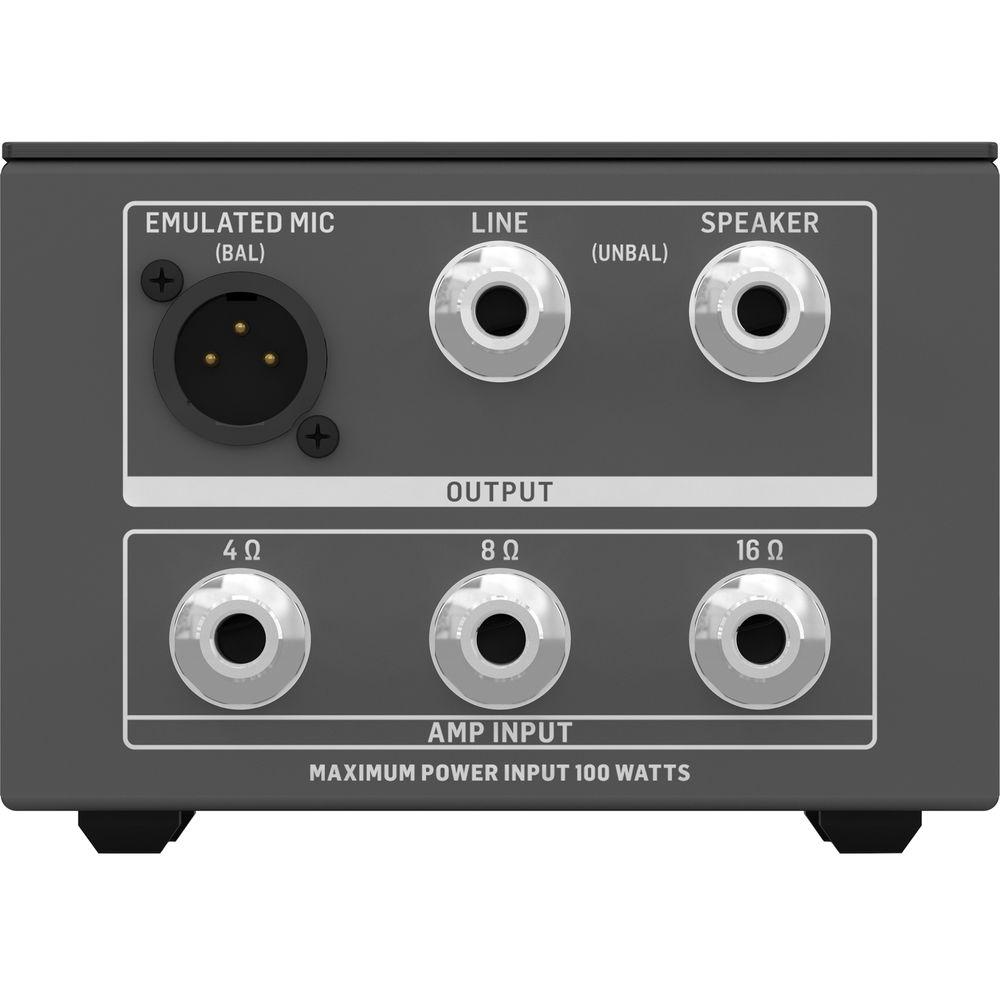

A passive unit requiring no power, the PS1 provides multiple 1/4" connections, giving you the choice of 4-, 8-, or 16-Ohm amplifier inputs. On the rear, you'll find your speaker output jack, as well as a line output that delivers unbalanced signal to any suitable destination. This jack features its own level attenuator, so you can raise or lower the volume as you see fit. The line output passes on the sound of your amplifier head without additional coloration; if you use the XLR output, however, you'll have access to the built-in emulated tone, which offers the convincing sound of a miked cabinet. This can be fed to the engineer during live gigs, or routed to an interface during studio recording. In this way, the PS1 can function as a DI box. - Multi-Impedance Operation
- The PS1 Power Soak goes between your tube amp and your speaker cabinet; just run a speaker cable from the output of your amp to the PS1's amp-input jack, making sure to match your amplifier's operating impedance of 4, 8, or 16 Ohms. Next, run a second speaker cable from PS1's Speaker Output to your cabinet. Power up your amp and dial in your favorite sound, then adjust the large Soak knob to the ideal volume level.
- Dedicated Line Output
- On the unit's rear, you'll find a line-output jack for connecting to additional, powered speaker cabinets, or to effects-processing used in gear in professional applications, such as recording in studios. The signal from the line output does not impart any speaker emulation, but it does feature its own dedicated Level control.
- Built-In Direct Box
- Now that you have your stage volume under control, you can stick a mic in front of your speaker, or you can use the PS1's built-in emulated mic output to route convincing speaker sound to the house PA or your recording interface. This balanced XLR output mimics the sound captured by placing a microphone in front of your speaker.
UPC: 748252174840 In the Box Bugera PS1 Power Soak - Passive 100W Power Attenuator and DI Box Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bugera PS1 Power Soak - Passive 100W Power Attenuator and DI Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBugera PS1 Specs | Inputs | 3 x 1/4" amplifier inputs, TS phone type
1 x 1/4" line output, TS phone type
1 X 1/4" speaker output, TS phone type
1 x XLR emulated mic output, balanced | | Input Impedance | 4, 8, or 16 Ohms, depending on connection point | | Dimensions (H x W x D) | 3.6 x 5.0 x 6.8" / 9.1 x 12.7 x 17.3 cm | | Weight | 2.9 lb / 1.3 kg | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 8.4 x 7.0 x 5.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Bugera PS1 Power Soak - Passive 100W Power Attenuator and DI Box
| Subject: How do I hook this item up to my Carvin Nomad? | | Date: 28.10.2022 04:52:10 | Name: Victor Pascali | | So, I bought this item recently and Im troubled by the instructions? Do I need a speaker cable from my guitar to the amp? How does the signal chain work? These directions are very confusing to me and it is taking forever and a day to even register on the Bugera Customer Support page just to email these questions since there's no phone number. | | Post reply |
| Subject: how to connect PS1 | | Date: 06.06.2022 05:50:06 | Name: Dale Manning | please tell me what jack the actual speaker cable goes into
also what jack the combo amp speaker output goes into | | Post reply |
| Subject: Impdedance Clearwater Revival | | Date: 01.05.2021 18:13:09 | Name: Kris Robison | Greetings,
I have a Fender Ultimate Chorus 2x12 amplifier. I keep finding conflicting information upon the Sea of Google. I am hopeful that you can right the rudder of this ship and point me in the right direction. Please!
#1) Which of the three impedance inputs on the back of the Bugera PS1 do I use for this amplifier and why?
Thank you,
Kris | | Post reply |
| Subject: Correct Impedance | | Date: 01.05.2021 18:09:35 | Name: Kris Robison | Greetings,
I have a 1982-83 60W Fender Concert II 4x10 amplifier. I keep finding conflicting information upon the Sea of Google. I am hopeful that you can right the rudder of this ship and point me in the right direction. Please!
#1) Which of the three impedance inputs do I use for this amplifier and why?
Thank you,
Kris | | Post reply |
