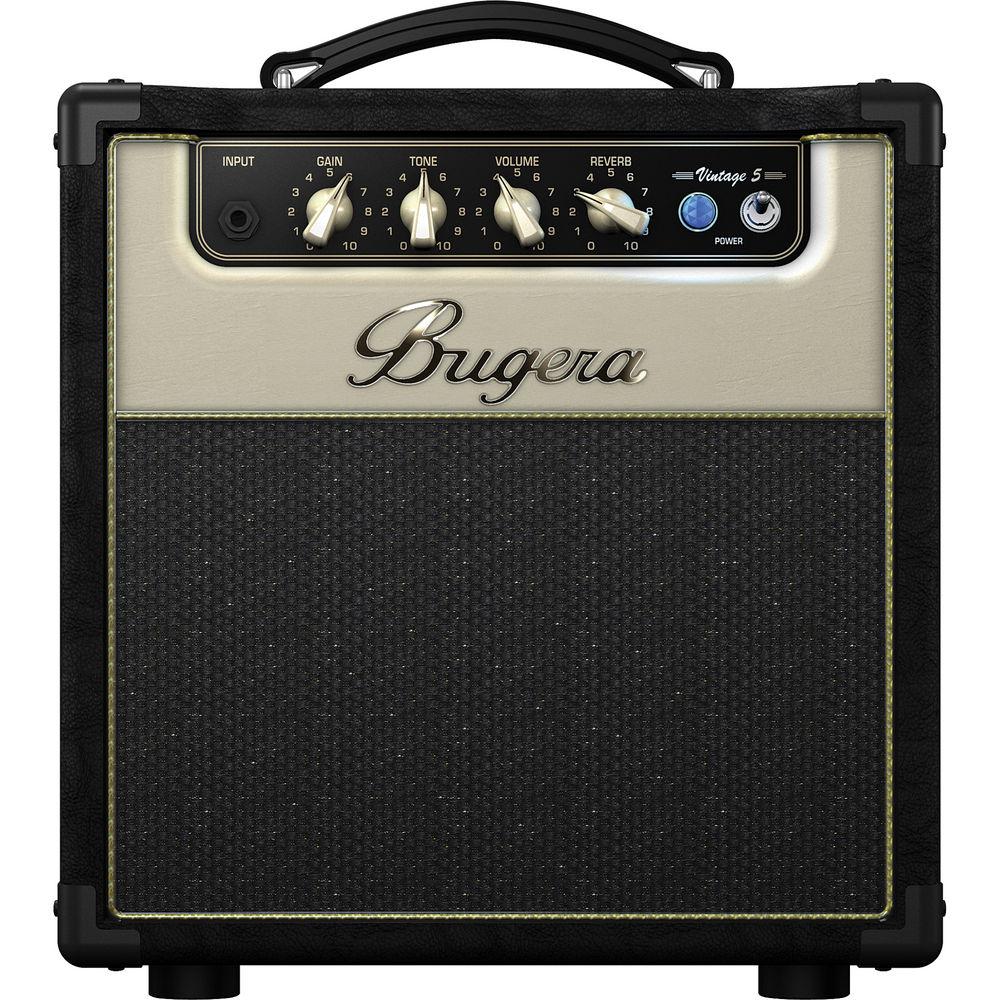

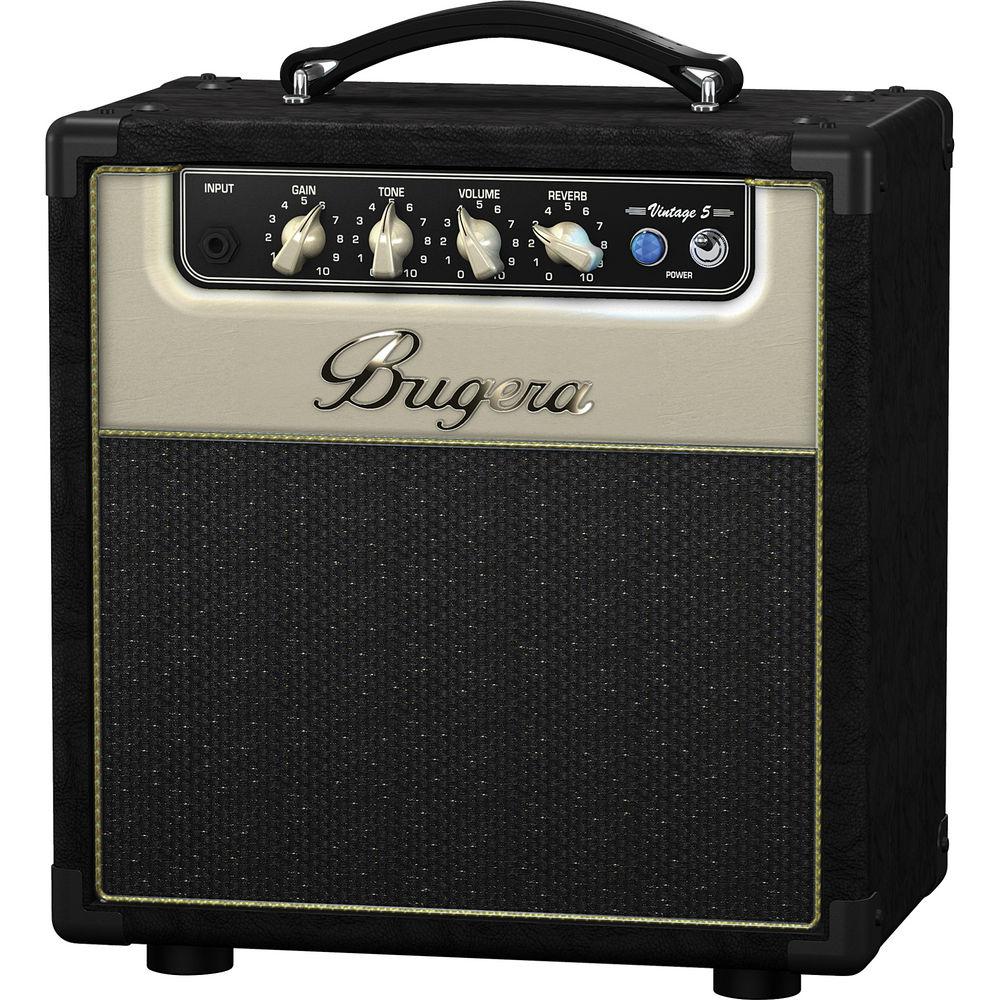

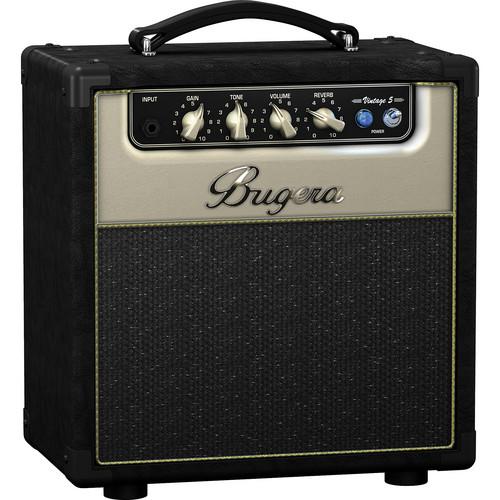

User Manual for Bugera V5 Infinium 5-Watt Class-A Tube Amplifier Combo Click to enlarge the picture
Contents of the user manual for the Bugera V5 Infinium 5-Watt Class-A Tube
- Product category: Guitar Amplifiers Bugera
- Brand: Bugera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bugera Guitar Amplifiers
 |
User manual for the Bugera V5 Infinium 5-Watt Class-A Tube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bugera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bugera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bugera product will considerably shorten its lifespan!
|
Product description The Bugera V5 Infinium 5-Watt Class-A Tube Amplifier Combo is designed for musicians who want a vintage tube sound with modern power management, vintage tone controls, and built-in reverb. The hand-built 5-watt amplifier is driven by a 12AX7 tube in the front-end preamplifier stage, an EL84 tube in the output stage, and powers an 8" Turbosound speaker. The unit features Infinium Tube Life Multiplier technology that monitors the performance of the tubes and dynamically drives them to the target operating point to improve their lifespan by up to 20 times. The technology monitors the tubes and triggers an adjacent LED to indicate when a tube is in need of replacement.
The front panel of the unit features a 1/4" instrument input, a gain knob, a vintage equalizer tone knob, a volume knob, and a dedicated reverb knob. The amplifier also features a built-in power attenuator that allows the unit to operate at 5W, 1W or 0.1W to enable the full range of tonality at any output level. - Valve Life Multiplier Technology
- Monitors and dynamically adjusts the operating point of each valve for even loads to extend the usable lifespan of the valves by up to 20 times
- Failed Tube LED Indicators
- Illuminates an LED corresponding to a tube that needs to be replaced
- Attenuator Controls
- Allows attenuation from 5 W, 1 W, or 0.5 W to achieve the full range of the amplifiers sound at almost any volume level
- Gain Control
- Adjusts the harmonics and compression caused by the tube to change the tonality of the amplifier
- Reverb Control
- Provides variable control over the amount of room sound blended into the mix
- Tone Control
- Provides variable control over the tonality of the amplifier
- Headphone Jack
- Enables private rehearsal without disturbing the neighbors
- Speaker Out Jack
- Enables connection to an even larger cabinet, such as a Bugera 4x12
In the Box Bugera V5 Infinium 5-Watt Class-A Tube Amplifier Combo Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bugera V5 Infinium 5-Watt Class-A Tube Amplifier Combo in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBugera V5 INFINIUM Specs | Power Rating | 5/1/0.1 W | | Total # Of Channels | 1 | | Tubes | Output: 1x EL84 | | Preamplifier | Tube: 1x 12AX7 | | Reverb | Yes | | Line Output | Phone | | Volume Control | Yes | | Output Impedance | 4 Ω | | Speaker | 1x 8" Model: 8G30A4 | | Impedance | 4 Ω | | Dimensions (H x W x D) | 14.1 x 14.1 x 8.62" (356 x 356 x 219 mm) | | Weight | 22 lb (10 kg) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
