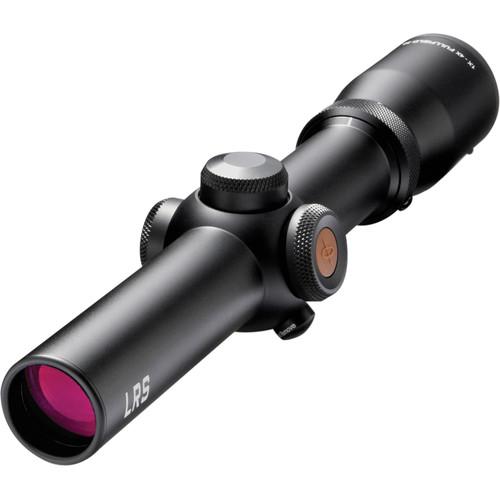

User Manual for Burris Optics 1-4x24 Fullfield TAC30 Riflescope Click to enlarge the picture
Contents of the user manual for the Burris Optics 1-4x24 Fullfield TAC30 Riflescope
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
|
User manual for the Burris Optics 1-4x24 Fullfield TAC30 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|
Product description The 1-4x24 Fullfield TAC30 Riflescope from Burris Optics is built for fast target acquisition and tracking whether in the field or on the range. Its short zoom range provides a useful advantage for close to medium-range use without sacrificing image brightness or making the field of view too narrow. A 130 MOA windage and elevation adjustment provides a wide range to compensate for most terrain and conditions.The Ballistic CQ (Close Quarter) reticle is optimized for 5.56/7.62 rounds with an outer donut and center dot for fast target acquisition and tracking. Ballistic-drop compensation dots on the lower vertical axis provide elevation adjustments out to 600yd. The reticle is illuminated with 10 intensity levels with a pushbutton control for the brightness. Press it once to return to the last setting used, or repeated presses cycles through the settings. Designed for durability, the aluminum housing has an anodized finish, is shockproof and nitrogen-filled for water and fogproof performance. - Optical Performance
-
- 1-4x zoom magnification
- 24mm objective lens
- Anti-reflective multicoated optics increases light transmission and reduces glare
- Reticle placed on the rear (second) focal plane
- Ballistic CQ Reticle
-
- Close quarters (CQ) reticle is optimized for 5.56/7.62 rounds
- Outer donut for fast close quarter target acquisition and tracking
- Horizontal and upper vertical posts with a center dot
- Ballistic-drop compensation dots on lower vertical axis for elevation adjustments out to 600 yd
- Illuminated reticle with 10 brightness settings
- Pushbutton switch enables quick activation, a single push turns illumination on to last setting used
- Lower brightness levels are compatible with NVDs
- Auto-off after two hours of inactivity
- Use and Handling
-
- 1/2 MOA per click shot compensation
- 130 MOA windage/elevation adjustment range
- Capped turrets are resettable to zero after initial sighting
- Fast-focus eyepiece with up to 4" of eye relief
- Construction Details
-
- Aluminum housing with 30mm one piece main-tube
- Scratch and corrosion-resistant matte-black anodized finish
- Nitrogen-filled and o-ring sealed for water and fogproof performance
UPC: 000381004338 In the Box Burris Optics 1-4x24 Fullfield TAC30 Riflescope (Illuminated Ballistic CQ Reticle) CR 2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 1-4x24 Fullfield TAC30 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200433 Specs | | | Magnification | 1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 100' @ 100 yd / 33.3 m @ 100 m
4x: 32' @ 100 yd / 10.6 m @ 100 m | | Exit Pupil Diameter | 1x: 24 mm
4x: 6 mm | | Eye Relief | 3.5 to 4" / 88.9 to 101.6 mm | | | | Reticle Type | Ballistic CQ Reticle | | Illumination | Illuminated | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 130 MOA | | Elevation Adjustment | 130 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Battery Runtime | 200 Hours (Maximum) | | Dimensions | Length: 11.3" / 28.6 cm | | Weight | 17 oz / 482 g |
