User Manual for Burris Optics 1-4x24 MTAC Riflescope Click to enlarge the picture
Contents of the user manual for the Burris Optics 1-4x24 MTAC Riflescope
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
 |
User manual for the Burris Optics 1-4x24 MTAC Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|

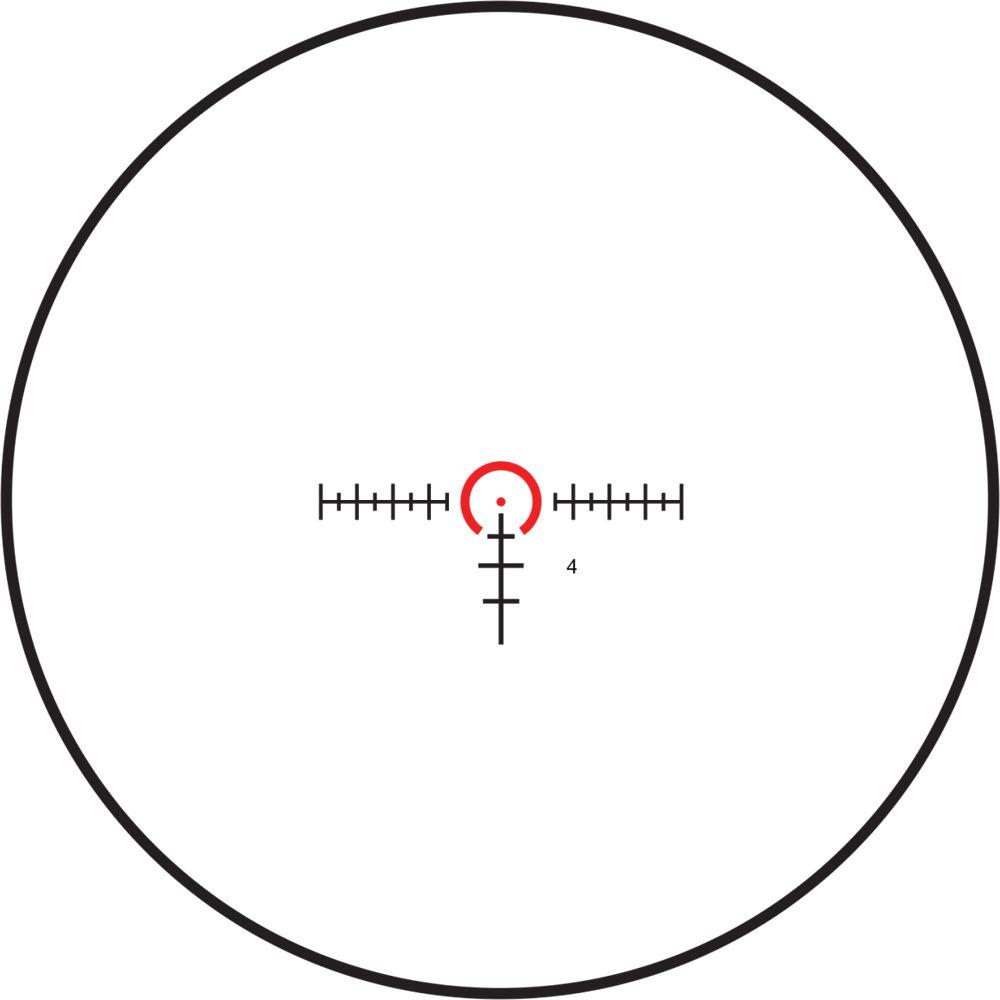

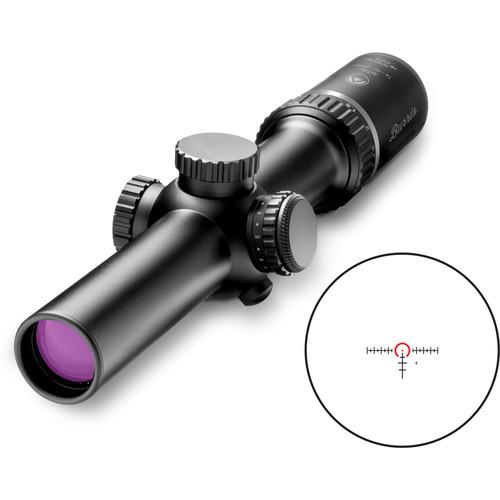

Product description Gain tactical advantage with the Burris Optics 1-4x24 MTAC Riflescope. This telescopic sight is intended for 3-Gun competitive shooters and hunters, and represents a compact, robust, and precise optic that is ideal for fast tracking and target acquisition. Its optical system features index-matched fully multi-coated elements that deliver great clarity and visibility in most lighting or environmental conditions. In addition to excellent image quality, this optic provides a generous 4" eye relief, 130 MOA windage and elevation ranges, and a Ballistic AR illuminated reticle for laser-sharp placements. This 2nd focal plane reticle is optimized for 5.56/.223 cartridges and features an illuminated round target horseshoe, an illuminated target dot, and a T-shaped MRAD -based crosshair, which provides compensation out to 600 yards. The illumination system offers 10 brightness settings with "off" positions in between and cast a brilliant red light over the entire reticle pattern.
Designed for a lifetime of service, the 6061-T6 aluminum housing (with a single-piece 30mm maintube) is waterproof, fogproof, and shock-resistant. Featuring Burris' double internal spring-tension system, it will hold zeros through hard recoil and impact. Also, noteworthy, are its low-profile finely knurled windage and elevation caps, covering finger operated MRAD-based MTAC adjustments and the ergonomic rubberized eyepiece that allows you to make fast and precise zooming adjustments. - Optical Performance
-
- 1-4x magnification
- 24mm objective lens
- Index-matched fully multi-coated optics
- Linear field of view: 100 - 32' at 100 yard
- Ballistic AR Reticle
-
- 2nd focal plane
- Optimized for 5.56/.223 cartridges
- Illuminated round target horseshoe and target dot
- T-shaped MRAD -based crosshair provides compensation out to 600 yards
- 10 brightness settings with "off'" positions in between
- Use and Handling
-
- 1/2 MOA impact point correction
- 130 MOA windage and elevation adjustment ranges
- Capped turrets resettable to zero after initial sighting
- Exit pupil: 24 - 6 mm
- 4" eye relief
- Construction Details
-
- 6061-T6 aluminum housing
- 30mm single-piece maintube
- Low-profile, knurled turret caps
- MRAD-based finger-adjustable MTAC turrets
- Burris double internal spring-tension system holds zeros through hard recoil or impact
- Corrosion- and abrasion-resistant finish
- Nitrogen-filled, fogproof
- O-ring sealed waterproof
UPC: 000381004574 In the Box Burris Optics 1-4x24 MTAC Riflescope (Ballistic AR Illuminated Reticle, Prym 1 Bllackout) - CR-2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 1-4x24 MTAC Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200457 Specs | | | Magnification | 1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 100' @ 100 yd / 33.3 m @ 100 m
4x: 32' @ 100 yd / 10.6 m @ 100 m | | Exit Pupil Diameter | 1x: 24 mm
4x: 6 mm | | Eye Relief | 3.5 to 4" / 88.9 to 101.6 mm | | | | Reticle Type | Ballistic AR Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 130 MOA | | Elevation Adjustment | 130 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 11.3" / 28.6 cm | | Weight | 14.5 oz / 411.1 g | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 12.1 x 3.2 x 2.9" |
