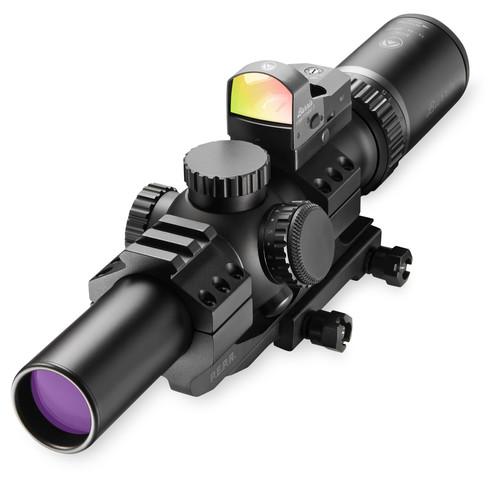

Burris Optics 1-4x24 MTAC Riflescope and

User Manual for Burris Optics 1-4x24 MTAC Riflescope and FastFire III Reflex Sight Kit

• Product category: Riflescopes Burris Optics
• Brand: Burris Optics
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Burris Optics Riflescopes

Product description

• 1-4x24 MTAC Riflescope (Ballistic AR Illuminated Reticle, Matte Black) Gain tactical advantage with the Burris Optics 1-4x24 MTAC Riflescope. This telescopic sight is intended for 3-Gun competitive shooters and hunters, and represents a compact, robust, and precise optic that is ideal for fast tracking and target acquisition. Its optical system features index-matched fully multi-coated elements that deliver great clarity and visibility in most lighting or environmental conditions. In addition to excellent image quality, this optic provides a generous 4" eye relief, 130 MOA windage and elevation ranges, and a Ballistic AR illuminated reticle for laser-sharp placements. This 2nd focal plane reticle is optimized for 5.56/.223 cartridges and features an illuminated round target horseshoe, an illuminated target dot, and a T-shaped MRAD -based crosshair, which provides compensation out to 600 yards. The illumination system offers 10 brightness settings with "off" positions in between and cast a brilliant red light over the entire reticle pattern.

  Designed for a lifetime of service, the 6061-T6 aluminum housing (with a single-piece 30mm maintube) is waterproof, fogproof, and shock-resistant. Featuring Burris' double internal spring-tension system, it will hold zeros through hard recoil and impact. Also, noteworthy, are its low-profile finely knurled windage and elevation caps, covering finger operated MRAD-based MTAC adjustments and the ergonomic rubberized eyepiece that allows you to make fast and precise zooming adjustments.
  Optical Performance
  • • 1-4x magnification
    • 24mm objective lens
    • Index-matched fully multi-coated optics
    • Linear field of view: 100 - 32' at 100 yard
    Ballistic AR Reticle
    • • 2nd focal plane
      • Optimized for 5.56/.223 cartridges
      • Illuminated round target horseshoe and target dot
      • T-shaped MRAD -based crosshair provides compensation out to 600 yards
      • 10 brightness settings with "off'" positions in between
      Use and Handling
      • • 1/2 MOA impact point correction
        • 130 MOA windage and elevation adjustment ranges
        • Capped turrets resettable to zero after initial sighting
        • Exit pupil: 24 - 6 mm
        • 4" eye relief
        Construction Details
        • • 6061-T6 aluminum housing
          • 30mm single-piece maintube
          • Low-profile, knurled turret caps
          • MRAD-based finger-adjustable MTAC turrets
          • Burris double internal spring-tension system holds zeros through hard recoil or impact
          • Corrosion- and abrasion-resistant finish
          • Nitrogen-filled, fogproof
          • O-ring sealed waterproof
        UPC: 000381004260
      • FastFire III 3-MOA Red-Dot Reflex Sight (Picatinny/Weaver Mount) The FastFire III Reflex Sight from Burris Optics features a 3-MOA red aiming dot, which is big enough to see in the daylight but won't obstruct small varmints. Three brightness levels lets you set it to your preference, or switch it to auto and the light sensor will detect the amount of available light and adjust the brightness itself. The FastFire III is made of aluminum with a matte-black anodized finish, and is waterproof and submersible. This sight comes with a Picatinny/Weaver rail mount, and mounts for a variety of rifles and pistols are also available that allow you to move the FastFire to other firearms.
        Optical Performance
        • • 1x magnification
          • 0.8 x 0.6" objective lens window
          • Fully coated optics for increased light transmission
        Use and Handling
        • • 3-MOA red dot with three intensity levels and an automatic brightness mode
          • 1 MOA impact point correction, 30 MOA per rotation travel
          • ±90 MOA windage and elevation adjustment range
          • Parallax-free from 10 to 150 yd
        Construction Details
        • • Aluminum housing
          • Matte-black corrosion and scratch-resistant anodized finish
          • Top-loading battery compartment enables battery changes without removing the sight
          • Included Picatinny/Weaver rail mount
          • Waterproof and submersible
        UPC: 000381302342
      • AR P.E.P.R. Riflescope Mount (1.60" Height) Optimized for AR firearms, the AR P.E.P.R. Riflescope Mount with Quick-Detach Levers from Burris Optics will accept riflescopes with 30mm main tube diameters, provide a height of 1.60" above the mounting rail, and allow up to 2" for forward positioning to ensure proper eye relief. For mounting additional accessories like lasers, flashlights, or cameras, each ring has a Picatinny mounting point on the top. The mount is made of lightweight aluminum with anodized black finish. UPC: 000381103413
      In the Box Bundle Items 1-4x24 MTAC Riflescope (Ballistic AR Illuminated Reticle, Matte Black) curzqwryrwdqxxecsydazbrctrz
      • CR-2032 Battery
      • Limited Lifetime Warranty
      FastFire III 3-MOA Red-Dot Reflex Sight (Picatinny/Weaver Mount)
      • Torx Wrench
      • 2 x Countersink Screws
      • Protective Cover
      • CR1632 Lithium Battery
      • FastFire Mount (Picatinny/Weaver style rails, Matte Black Aluminum)
      • Limited Lifetime Warranty
      AR P.E.P.R. Riflescope Mount (1.60" Height)
      • Limited Lifetime Warranty



    Also Includes

    • Limited Lifetime Warranty
    Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 1-4x24 MTAC Riflescope (Ballistic AR Illuminated Reticle, Matte Black)

  Magnification	1 to 4x
  Objective Lens Diameter	24 mm
  Field of View	1x: 100' @ 100 yd / 33.3 m @ 100 m 4x: 32' @ 100 yd / 10.6 m @ 100 m
  Exit Pupil Diameter	1x: 24 mm 4x: 6 mm
  Eye Relief	3.5 to 4" / 88.9 to 101.6 mm

  Reticle Type	Ballistic AR Reticle (Second Focal Plane)

  Impact Point Correction	1/2 MOA per Click
  Windage Adjustment	130 MOA
  Elevation Adjustment	130 MOA
  Parallax Correction	Yes, 100 yd / 91.4 m

  Water Resistance	Waterproof
  Fogproof	Yes, Nitrogen Filled

  Maintube Diameter	30 mm
  Battery	1 x CR2032
  Dimensions	Length: 11.3" / 28.6 cm
  Weight	14.5 oz / 411.1 g

  Box Dimensions (LxWxH)	12.6 x 3.3 x 2.9"

• FastFire III 3-MOA Red-Dot Reflex Sight (Picatinny/Weaver Mount)

  Power Source	1 x CR1632
  Sight Window Dimensions	0.8 x 0.6" / 21 x 15 mm
  Mounting	Picatinny / Weaver

  Magnification	1 x

  Impact Point Correction	1 MOA
