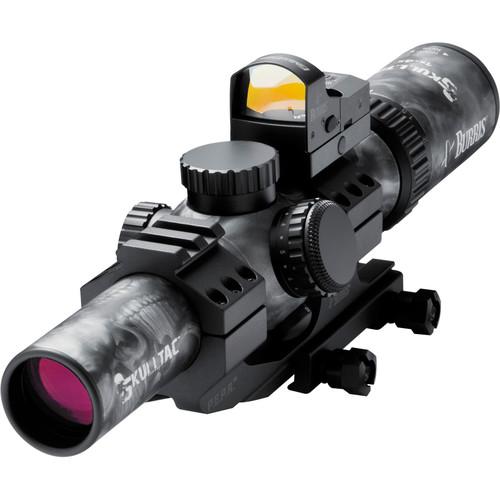

User Manual for Burris Optics 1-4x24mm Skull-TAC Riflescope-FastFire III Sight and AR-P.E.P.R. Mount Click to enlarge the picture
Contents of the user manual for the Burris Optics 1-4x24mm Skull-TAC Riflescope-FastFire III
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
|
User manual for the Burris Optics 1-4x24mm Skull-TAC Riflescope-FastFire III contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|
Product description The 1-4x24mm Skull-TAC Riflescope-FastFire III Reflex Sight and AR-P.E.P.R. Mount from Burris Optics is a complete optical system for your AR platform. Starting with the Skull-TAC riflescope that features index-matched lenses and Burris' HiLume lens coatings to minimize reflection and maximize light transmission. This translates to bright and clear images with true color representation. Its Ballistic CQ (Close Quarter) reticle is optimized for 5.56/7.62 rounds with an outer donut and center dot for fast target acquisition and tracking. Ballistic-drop compensation dots on the lower vertical axis provide elevation adjustments out to 600yd. The reticle is illuminated with 10 intensity levels. Separate 'off' positions between each brightness level makes returning to a preferred setting quick and easy. Designed for durability, the aluminum housing has an anodized finish with a Skull-TAC wrap, and is nitrogen-filled for water and fogproof performance.Complementing the medium to long range capabilities of the riflescope, is the FastFire III reflex sight. It features an 8 MOA red aiming dot which is big enough to see in the daylight, but won't obstruct small varmints. Three brightness levels lets you set it to your preference, or switch it to auto and the light sensor will detect the amount of available light and adjust the brightness itself. The FastFire III is made of aluminum with a matte-black anodized finish, and is waterproof and submersible.An AR-P.E.P.R. (Proper Eye Position Ready) mount is included for the scope. This cantilever mount is specifically designed for the AR platform and provides two inches of forward scope position to give you the proper eye relief. On top of the scope rings are Picatinny/Weaver accessory rails. Use one of these rails with the included FastFire III Picatinny mount to easily stack the FastFire III on to of the Skull-TAC to create a fast-transition dual-optic system. As with the scope and reflex sight, the P.E.P.R. mount is also made of aluminum with a matte-black anodized finish to tie all of the optics together. - 1-4x24mm Skull-TAC Riflescope (Illuminated Ballistic CQ Reticle) The 1-4x24mm Skull-TAC Riflescope from Burris Optics features index-matched lenses and Burris' HiLume lens coatings to minimize reflection and maximize light transmission. This translates to bright and clear images with true color representation. Its Ballistic CQ (Close Quarter) reticle is optimized for 5.56/7.62 rounds with an outer donut and center dot for fast target acquisition and tracking. Ballistic-drop compensation dots on the lower vertical axis provide elevation adjustments out to 600yd. The reticle is illuminated with 10 intensity levels. Separate 'off' positions between each brightness level makes returning to a preferred setting quick and easy. Designed for durability, the aluminum housing has an anodized finish with a Skull-TAC wrap, and is nitrogen-filled for water and fogproof performance.
- Optical Performance
-
- 1-4x magnification
- 24 objective lens
- Index-matched lenses with HiLume fully coated optics
- Rear focal plane reticle
- Ballistic CQ Reticle
-
- Close quarters (CQ) reticle is optimized for 5.56/7.62 rounds
- Outer donut for fast close quarter target acquisition and tracking
- Horizontal and upper vertical posts with a center dot
- Ballistic-drop compensation dots on lower vertical axis for elevation adjustments out to 600 yd
- Illuminated reticle with 10 brightness settings, and an 'off' position between each level
- Use and Handling
-
- 1/2 MOA per click impact point correction
- 130 MOA windage and elevation adjustment range
- Turrets resettable to zero after initial sighting
- Fast-focus eyepiece with up to 4" of eye relief
- Construction Details
-
- Skull-TAC graphic wrap on entire scope
- 30mm one-piece aluminum main-tube
- Scratch and corrosion-resistant matte-black anodized finish
- Nitrogen-filled, water and fogproof
- Knurled turrets, knobs, and dials provide a sure-grip in cold and wet conditions
UPC: 000381004383 - FastFire III 8-MOA Red-Dot Reflex Sight (No Mount) The FastFire III Reflex Sight from Burris Optics features a 8-MOA red aiming dot, which is big enough to see in the daylight, but won't obstruct small varmints. Three brightness levels lets you set it to your preference, or switch it to auto and the light sensor will detect the amount of available light and adjust the brightness itself. The FastFire III is made of aluminum with a matte-black anodized finish, and is waterproof and submersible. This sight is offered without a mount. Mounts are sold separately for a variety of rifles and pistols.
- Optical Performance
-
- 1x magnification
- 0.8 x 0.6" objective lens window
- Fully coated optics for increased light transmission
- Use and Handling
-
- 8-MOA red dot with three intensity levels and an automatic brightness mode
- 1 MOA impact point correction, 30 MOA per rotation travel
- 86 MOA windage, 115 MOA elevation adjustment range
- Parallax-free from 10 to 150 yd
- Construction Details
-
- Aluminum housing
- Matte-black corrosion and scratch-resistant anodized finish
- Top-loading battery compartment enables battery changes without removing the sight
- Waterproof and submersible
UPC: 000381302373 - AR P.E.P.R. Riflescope Mount (1.60" Height) Optimized for AR firearms, the AR P.E.P.R. Riflescope Mount with Quick-Detach Levers from Burris Optics will accept riflescopes with 30mm main tube diameters, provide a height of 1.60" above the mounting rail, and allow up to 2" for forward positioning to ensure proper eye relief. For mounting additional accessories like lasers, flashlights, or cameras, each ring has a Picatinny mounting point on the top. The mount is made of lightweight aluminum with anodized black finish. UPC: 000381103413
- FastFire Mount (Picatinny/Weaver style rails, Matte Black Aluminum) Give your FastFire sight a solid connection using the Burris FastFire Mount. This matte black aluminum mount allows you to create a secure and rigid attachment for any generation of FastFire sights to your firearm. UPC: 000381103352
In the Box Bundle Items 1-4x24mm Skull-TAC Riflescope (Illuminated Ballistic CQ Reticle) beuzvvrcsdbqtvfwfzw - Limited Lifetime Warranty
FastFire III 8-MOA Red-Dot Reflex Sight (No Mount) - Limited Lifetime Warranty
AR P.E.P.R. Riflescope Mount (1.60" Height) - Limited Lifetime Warranty
FastFire Mount (Picatinny/Weaver style rails, Matte Black Aluminum) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 1-4x24mm Skull-TAC Riflescope-FastFire III Sight and AR-P.E.P.R. Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 1-4x24mm Skull-TAC Riflescope (Illuminated Ballistic CQ Reticle)
| | | Magnification | 1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 100' @ 100 yd / 33.3 m @ 100 m
4x: 32' @ 100 yd / 10.6 m @ 100 m | | Exit Pupil Diameter | 1x: 24 mm
4x: 6 mm | | Eye Relief | 3.5 to 4" / 88.9 to 101.6 mm | | | | Reticle Type | Ballistic CQ Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 130 MOA | | Elevation Adjustment | 130 MOA | | Parallax Correction | No | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 11.3" / 28.6 cm | | Weight | 17 oz / 482 g | - FastFire III 8-MOA Red-Dot Reflex Sight (No Mount)
| | | Power Source | 1 x CR1632 | | Sight Window Dimensions | 0.8 x 0.6" / 21 x 15 mm | | | | Impact Point Correction | 1 MOA | | Windage Adjustment | 86 MOA | | Elevation Adjustment | 115 MOA | | | | Operating Temperature | -10 to 130°F / -23 to 55°C | | | | Water Resistance | Waterproof | | Dimensions | L: 1.9 x W: 1.0 x H: 1.0" / L: 4.8 x W: 2.5 x H: 2.5 cm | | Weight | 0.9 oz / 25.5 g | | | | Box Dimensions (LxWxH) | 6.0 x 4.6 x 1.6" | - AR P.E.P.R. Riflescope Mount (1.60" Height)
| Material | Aluminum | | Mount Type | Picatinny | | Main Tube Diameter | 30mm | | Height | 1.60" / 40.6 mm | | Weight | 8.7 oz / 247 g | | | | Box Dimensions (LxWxH) | 8.3 x 5.8 x 1.9" | - FastFire Mount (Picatinny/Weaver style rails, Matte Black Aluminum)
| Compatibility | FastFire sights | | Fits On | Picatinny/Weaver Style Rail | | Construction | Aluminum |
