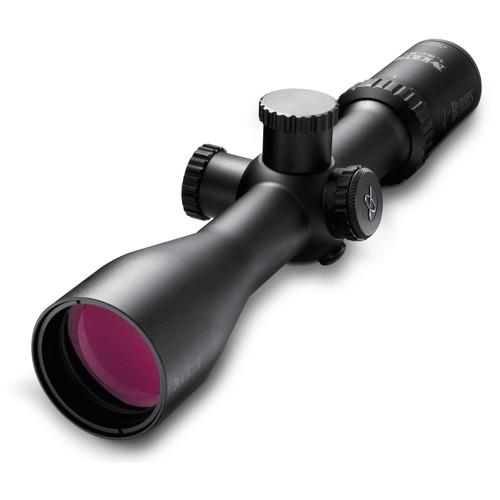

User Manual for Burris Optics 1.5-6x42 MTAC Riflescope Click to enlarge the picture
Contents of the user manual for the Burris Optics 1.5-6x42 MTAC Riflescope
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
|
User manual for the Burris Optics 1.5-6x42 MTAC Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|
Product description The 1.5-6x42 MTAC Riflescope from Burris Optics is built for fast target acquisition and tracking whether in the field or on the range. Its versatile zoom range is effective for close to medium-long range use and won't sacrifice image brightness. Precise 1/2 MOA per click shot correction helps get you on-target quickly, and 80 MOA windage and elevation adjustments provide a practical range to compensate for most terrain and conditions. The Ballistic CQ (Close Quarter) reticle is optimized for 5.56/7.62 rounds with an outer donut and center dot for fast target acquisition and tracking. Ballistic-drop compensation dots on the lower vertical axis provide elevation adjustments out to 600 yd. The reticle is illuminated with 10 intensity levels. Separate 'off' positions between each brightness level makes returning to a preferred setting quick and easy. The housing is made of lightweight and durable aluminum with a corrosion-resistant anodized finish. It features a 30mm single-piece main tube for resistance to shock and recoil, a nitrogen fill for fogproofing, and O-rings for waterproof performance. The fast focus eyepiece's zoom ring and adjustment turrets and rings feature heavy knurling for improved tactile traction and non-slip operation in any weather conditions. - Optical Performance
-
- 1.5-6x zoom magnification
- 42mm objective lens
- Fully multi-coated optics
- Ballistic CQ Reticle
-
- Close quarters (CQ) reticle is optimized for 5.56/7.62 rounds
- Outer donut for fast close quarter target acquisition and tracking
- Horizontal and upper vertical posts with a center dot
- Ballistic-drop compensation dots on lower vertical axis for elevation adjustments out to 600 yd
- Illuminated reticle with 10 brightness settings, and an 'off' position between each level
- Use and Handling
-
- 1/2 MOA per click shot compensation
- 80 MOA windage/elevation adjustment range
- Capped turrets resettable to zero after initial sighting
- Fast-focus eyepiece with up to 3.8" of eye relief
- Construction Details
-
- Aluminum housing
- 30mm one piece main tube
- Corrosion-resistant anodized finish
- Nitrogen-filled fogproof
- O-ring sealed for waterproof
UPC: 000381004291 In the Box Burris Optics 1.5-6x42 MTAC Riflescope (Illuminated Ballistic CQ Reticle) - CR2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 1.5-6x42 MTAC Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200429 Specs | | | Magnification | 1.5 to 6x | | Objective Lens Diameter | 42 mm | | Field of View | 1.5x: 33' @ 100 yd / 11 m @ 100 m
6x: 13' @ 100 yd / 4.3 m @ 100 m | | Exit Pupil Diameter | 1.5x: 27 mm
6x: 7 mm | | Eye Relief | 3.1 to 3.8" / 79 to 97 mm | | | | Reticle Type | Ballistic CQ Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 80 MOA | | Elevation Adjustment | 80 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 12.2" / 310 mm | | Weight | 15.5 oz / 439.4 g |
