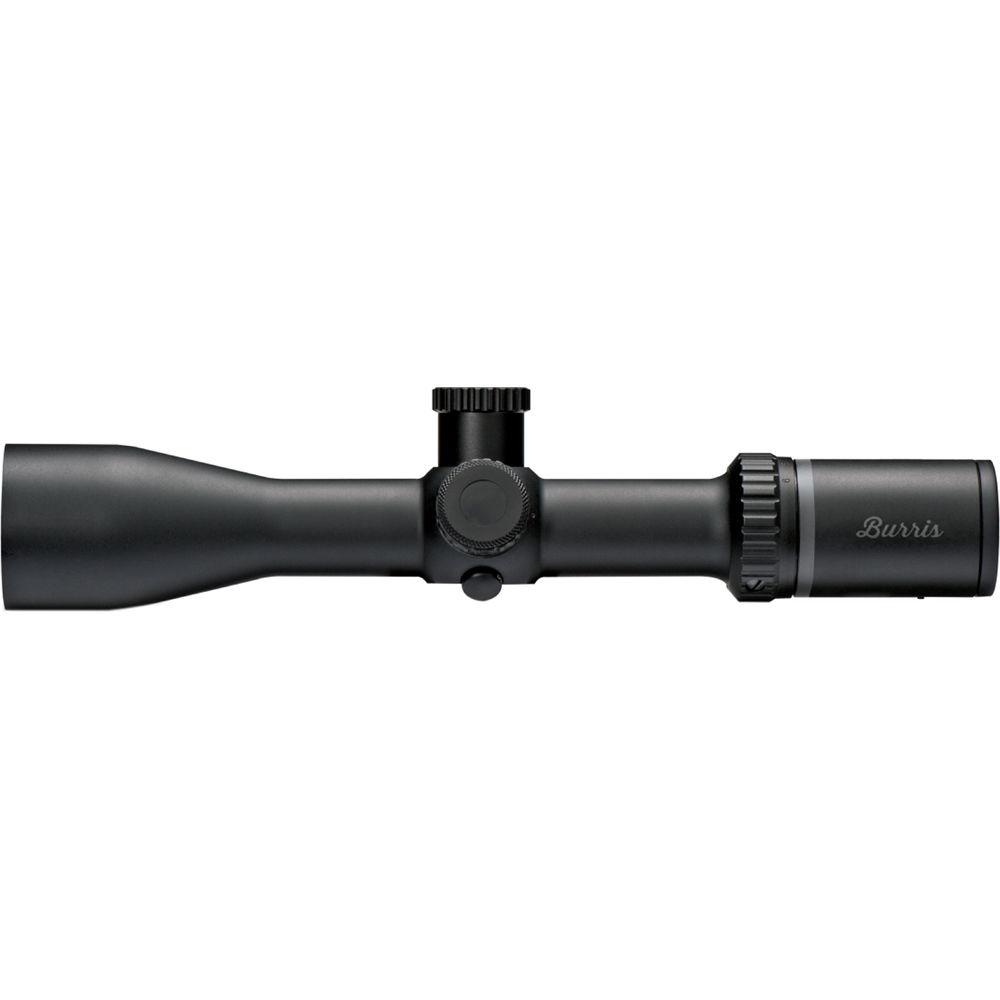

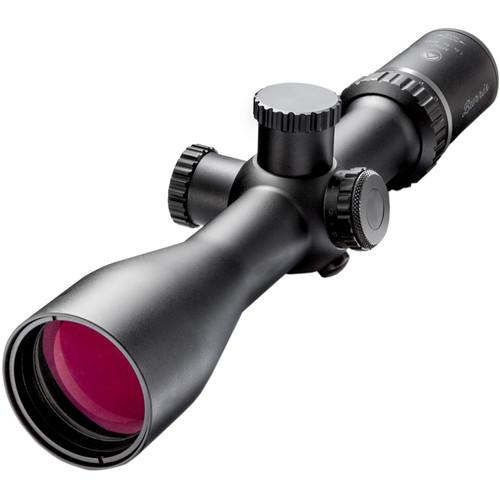

Product description The 1.5-6x42 MTAC Riflescope from Burris Optics is built for fast target acquisition and tracking whether in the field or on the range. Its versatile zoom range is effective for close to medium-long range use and won't sacrifice image brightness. Precise 1/2 MOA per click shot correction helps get you on-target quickly, and 80 MOA windage and elevation adjustments provide a practical range to compensate for most terrain and conditions. The Ballistic AR reticle is optimized for 5.56/.223 rounds with an outer horseshoe and center dot for ultra-fast engagement at short distances. This mil-based reticle offers ballistic-drop compensation dots on the lower vertical axis which provide elevation adjustments out to 600 yd. The reticle is illuminated with 10 intensity levels. Separate 'off' positions between each brightness level makes returning to a preferred setting quick and easy. The housing is made of lightweight and durable aluminum with a corrosion-resistant anodized finish. It features a 30mm single-piece main tube for resistance to shock and recoil, a nitrogen fill for fogproofing, and O-rings for waterproof performance. The fast focus eyepiece's zoom ring and adjustment turrets and rings feature heavy knurling for improved tactile traction and non-slip operation in any weather conditions. - Optical Performance
-
- 1.5-6x zoom magnification
- 42mm objective lens
- Fully multi-coated optics

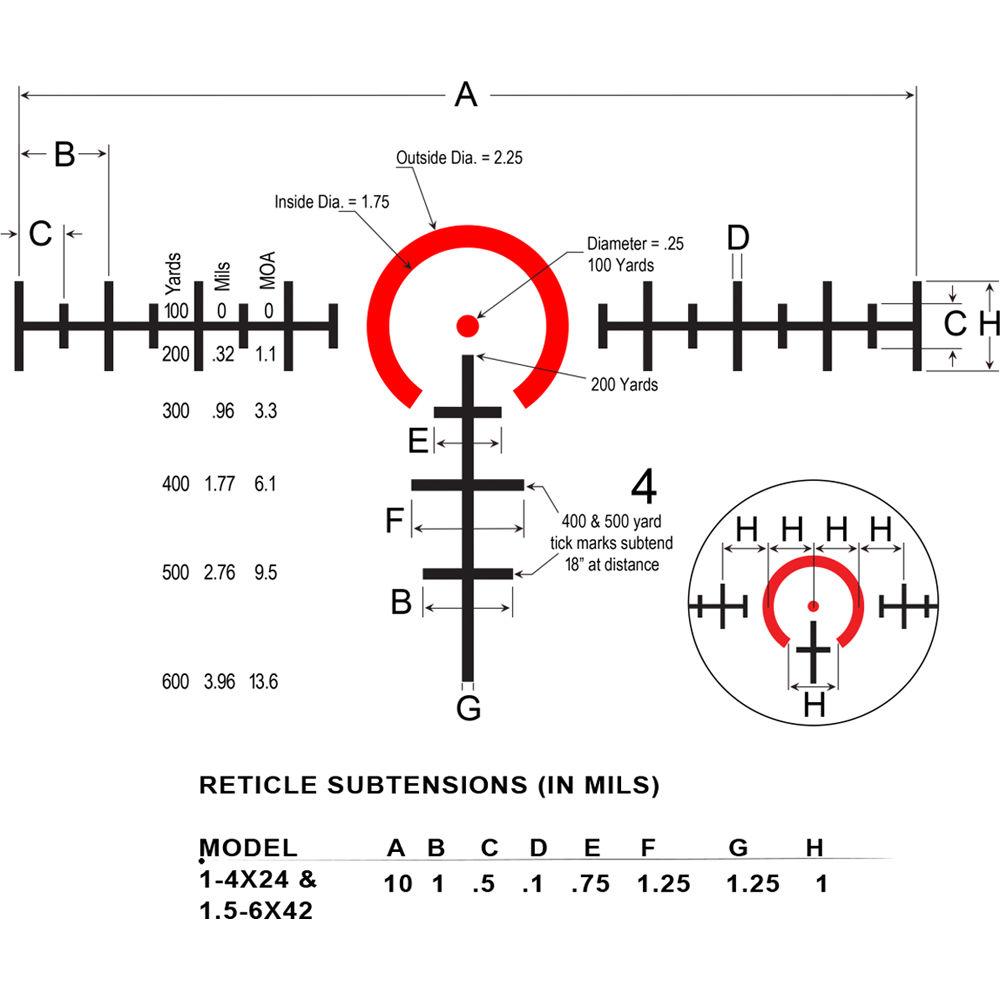

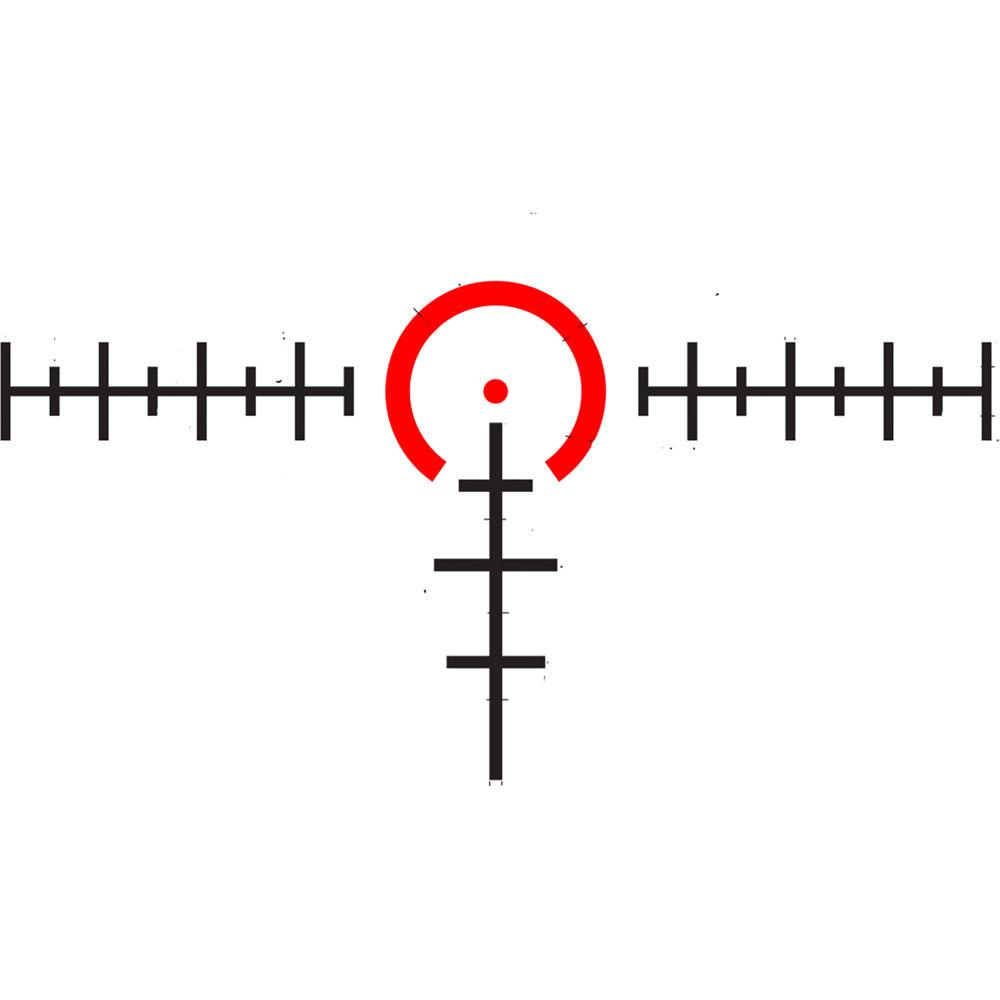

- Ballistic AR Reticle
-
- Located 2nd focal plane
- Optimized for 5.56/.223 rounds
- Outer horseshoe for ultra-fast engagement at short distances
- Outer horizontal and vertical posts
- Ballistic-drop compensation dots on lower vertical axis for elevation adjustments out to 600 yd
- Illuminated reticle with 10 brightness settings, and an 'off' position between each level
- Use and Handling
-
- 1/2 MOA per click shot compensation
- 80 MOA windage/elevation adjustment range
- Capped turrets resettable to zero after initial sighting
- Fast-focus eyepiece with up to 3.8" of eye relief
- Construction Details
-
- Aluminum housing
- 30mm one piece main tube
- Corrosion-resistant anodized finish
- Nitrogen-filled fogproof
- O-ring sealed for waterproof
In the Box Burris Optics 1.5-6x42 MTAC Riflescope (Illuminated Ballistic AR Reticle) - CR2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 1.5-6x42 MTAC Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200439 Specs | | | Magnification | 1.5 to 6x | | Objective Lens Diameter | 42 mm | | Field of View | 1.5x: 33' @ 100 yd / 11 m @ 100 m
6x: 13' @ 100 yd / 4.3 m @ 100 m | | Exit Pupil Diameter | 1.5x: 27 mm
6x: 7 mm | | Eye Relief | 3.1 to 3.8" / 79 to 97 mm | | | | Reticle Type | Ballistic AR Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 80 MOA | | Elevation Adjustment | 80 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 12.2" / 310 mm | | Weight | 15.5 oz / 439.4 g |
