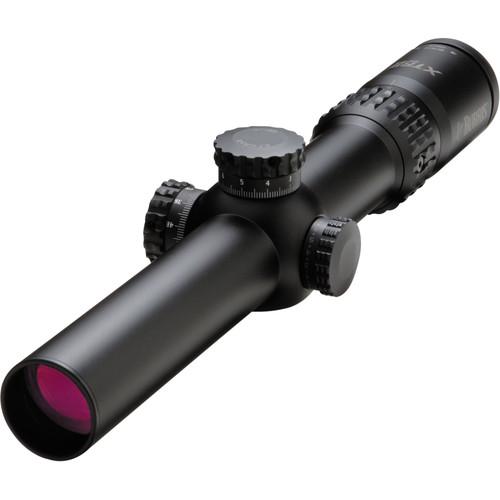

User Manual for Burris Optics 1.5-8x28 XTR II Riflescope Click to enlarge the picture
Contents of the user manual for the Burris Optics 1.5-8x28 XTR II Riflescope
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
|
User manual for the Burris Optics 1.5-8x28 XTR II Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|
Product description The 1.5-8x28 XTR II Riflescope from Burris Optics features Burris' Hi-Lume fully multicoated optics and high-transmission glass to provide you with bright images with high contrast, and true color rendition. The red illuminated ballistic 5.56 Gen 3 reticle is designed as a 0.5 mil wide broken-circle with a center dot for fast target acquisition and tracking. Hash marks on the horizontal and lower vertical axes aid in calculating range, holdover, and elevation adjustments. This is a dual focal plane (DFP) reticle, which places the center aiming points on the rear focal plane and the crosshairs on the front focal plane. Eleven reticle intensity levels lets you tailor the reticle brightness to your preference and lighting conditions, with battery-saver modes between each level, to conserve power. The lowest settings are compatible with NVDs for tactical use.The tactical turrets can be re-zeroed after the initial sighting, and feature Posi-Lock which locks the turret rings to keep the scope zeroed over time and prolonged use. Designed for durability, the aluminum housing has a matte-black anodized finish and is nitrogen-filled and o-ring sealed for water and fogproof performance. - Optical Performance
-
- 1.5-8x zoom magnification
- 28mm diameter objective lens
- Hi-Lume fully multicoated optics reduces glare and increases light transmission for bright images with high contrast and true color rendition
- Dual Focal Plane (DFP) reticle
- Use and Handling
-
- Illuminated red Ballistic 5.56 Gen 3 reticle optimized for use with 5.56/.223 and 7.62/.308 ammunition
- 0.5 mil wide broken circle with center dot, and horizontal and lower vertical tick marks for ranging, holdover, and elevation adjustment
- DFP reticle: Center aiming points located on second focal plane, with crosshairs on first focal plane
- 11 brightness settings with 'power-saver' positions between each intensity
- Lowest illumination level compatible with NVDs
- Single-turn W/E knobs: A single turn runs through the entire adjustment range for fast correction and return-to-zero
- Knurled turrets for non-slip grip on all conditions
- Zero Click Stop turrets to quickly return to zero
- Fast-focus eyepiece with 3.75-4" eye relief
- Construction Details
-
- 34mm single-piece main-tube
- Aluminum-alloy housing
- Scratch and corrosion-resistant anodized finish
- Matte-black to reduce light signature
- Nitrogen-filled and o-ring sealed for water and fogproof performance
- Posi-Lock system keeps scope zeroed after prolonged use
UPC: 000381010100 In the Box Burris Optics 1.5-8x28 XTR II Riflescope (Ballistic 5.56 Gen 3 Reticle) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 1.5-8x28 XTR II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 201010 Specs | | | Magnification | 1.5 to 8x | | Objective Lens Diameter | 28 mm | | Field of View | 1.5x: 65' @ 100 yd / 21.6 m @ 100 m
8x: 13.3' @ 100 yd / 4.4 m @ 100 m | | Exit Pupil Diameter | 1.5x: 18.6 mm
8x: 3.5 mm | | Eye Relief | 3.8 to 4" / 95.3 to 101.6 mm | | | | Reticle Type | Ballistic 5.56 Gen 3 Reticle (First Focal Plane, Second Focal Plane) | | | | Impact Point Correction | 0.1 MIL per Click | | Windage Adjustment |
