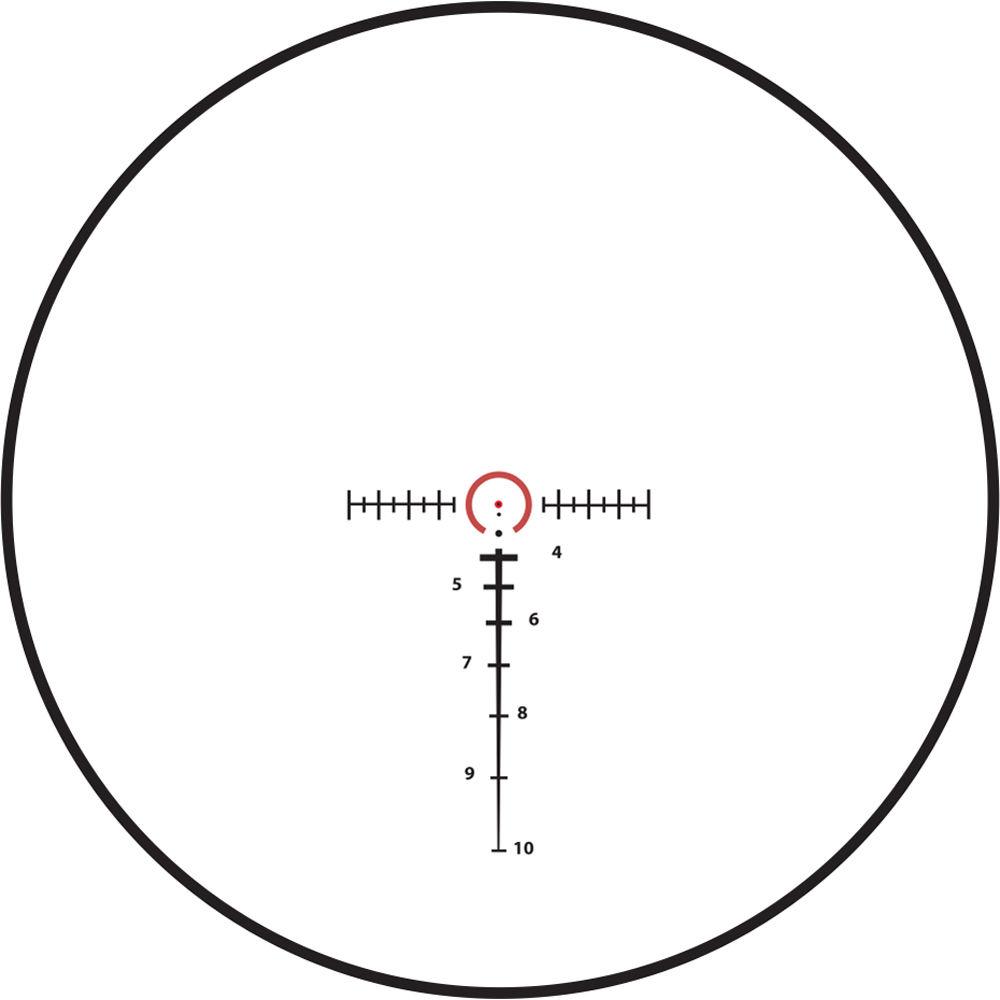

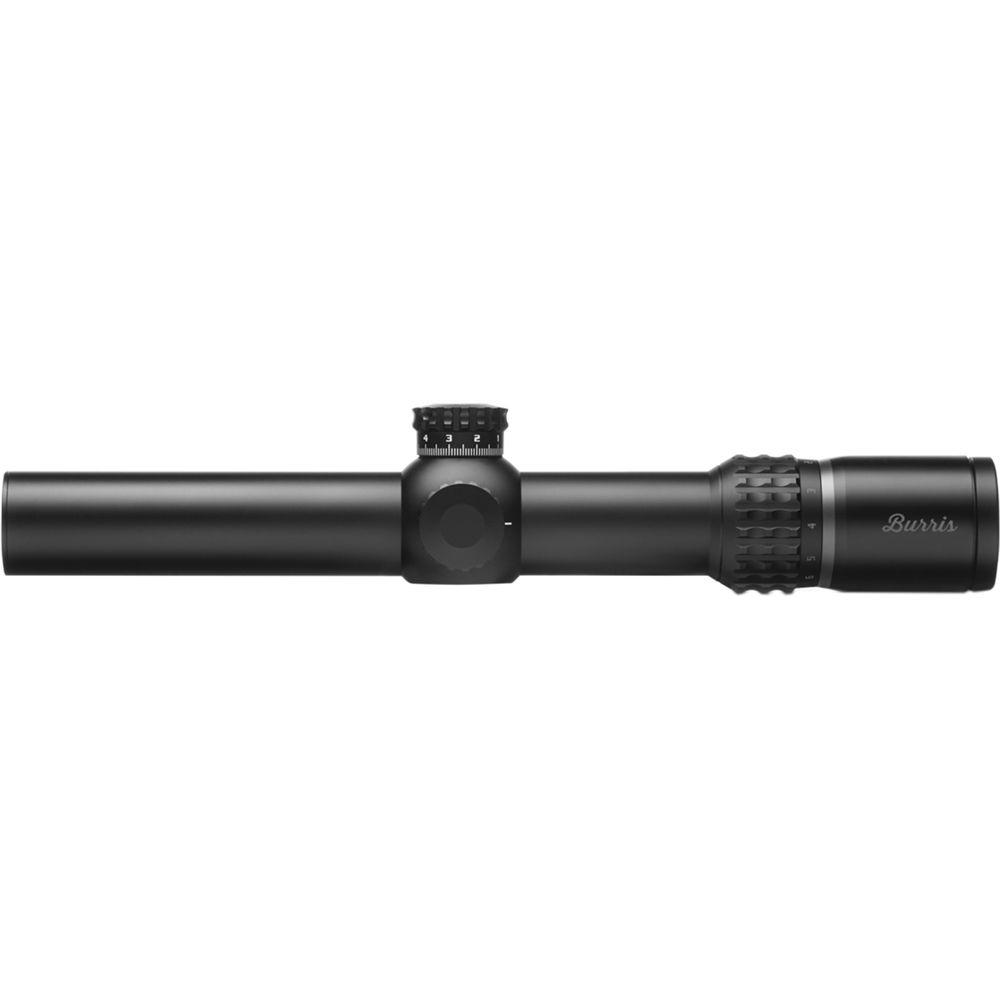

Product description Burris Optics combined state-of-the-art engineering with refinements for accuracy in the 1.5-8x28 XTR II Riflescope, which is optimized for tactical applications and competitive shooting. The riflescope's optical system offers bright and clear images, with high contrast and true colors, thanks to the Hi-Lume indexed-matched multiple anti-reflection coatings and high quality optical glass. One of central features of the scope is the Ballistic 5.56 Gen 3 Reticle. It is a dual focal plane reticle that has a scaling of crosshair for ranging accuracy, a constant-size broken circle for easy short-to-long range transition, and trajectory compensation out to 1,000 yards. To compensate for wind and ballistics you have adjustable windage and elevation and a 1/10 mil impact point correction.
Another definite highlight of this optic is the Modular Adjustment Dial (M.A.D.) System that allows you to choose from competition-style exposed knobs, capped knobs, or custom knobs on both windage and elevation adjustments in order to match precisely the trajectory of your ammunition.

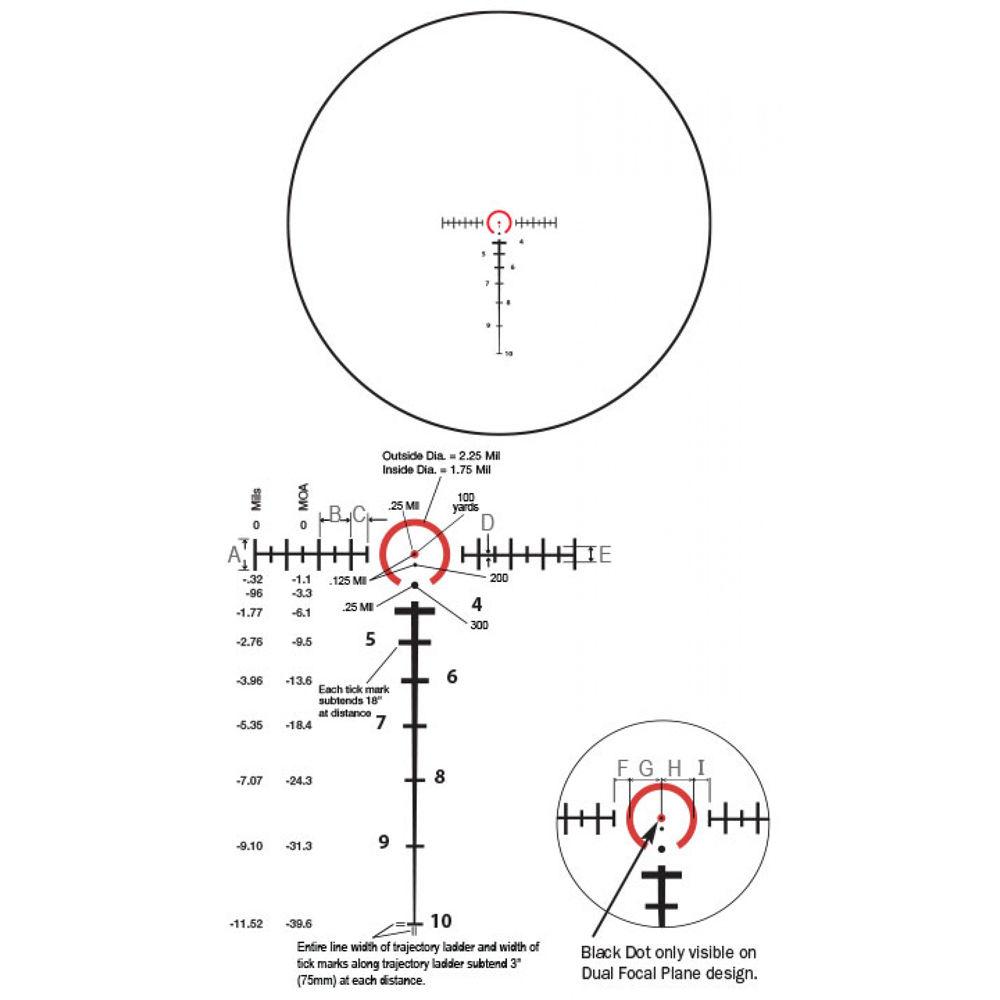

The housing is made of lightweight and durable aluminum with corrosion-resistant anodized finish. It features a 34mm single-piece maintube for resistance to shock and recoil, a nitrogen fill for fog proofing, and O-rings for waterproof performance. The fast focus eyepiece's zoom ring and adjustment turrets and rings feature heavy knurling for improved tactile traction and non-slip operation in all weather conditions. - Illuminated Ballistic 5.56 Gen 3 Reticle
-
- Mil measurements
- Illuminated broken-circle pattern with center dot
- Dual focal plane:
- Allows scaling of crosshair for ranging accuracy
- Broken circle maintains size for easy short-to-long range transition
- Trajectory compensation out to 1,000 yards
- Optical Performance
-
- 1.5-8x zoom magnification
- 28mm diameter objective lens
- Hi-Lume index-matched anti-reflection coatings:
- Increase transmission
- Deliver bright and clear images
- Ensure low-light performance
- Linear field of view: 65-13.3' at 100 yd
- Use and Handling
-
- 1/10 mil impact point correction
- 90 MOA windage and elevation
- Construction Details
-
- 34mm single-piece maintube
- Aluminum alloy housing
- Corrosion-resistant anodized finish
- Modular Adjustment Dial (M.A.D.) System:
- Re-engineered windage and elevation turret adjustment system
- Accepts competition-style exposed or capped knobs
- Allows custom knobs to match the trajectory of your ammunition
- Zero Click Stop function
- Nitrogen-filled, fogproof
- O-ring sealed, waterproof
In the Box Burris Optics 1.5-8x28 XTR II Riflescope (Illuminated Ballistic 5.56 Gen 3 Reticle) - CR-2032 Battery
- 2 x Lens Covers
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 1.5-8x28 XTR II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 201013 Specs | | | Magnification | 1.5 to 8x | | Objective Lens Diameter | 28 mm | | Field of View | 1.5x: 65' @ 100 yd / 21.7 m @ 100 m
8x: 13.3' @ 100 yd / 4.4 m @ 100 m | | Exit Pupil Diameter | 1.5x: 12 mm
8x: 3.5 mm | | Eye Relief | 3.8 to 4" / 95.3 to 101.6 mm | | | | Reticle Type | Ballistic 5.56 Gen 3 Reticle (First Focal Plane) | | | | Impact Point Correction | 1/10 MIL per Click | | Windage Adjustment | 90 MOA | | Elevation Adjustment | 90 MOA | | Parallax Correction | No | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 12.8" / 319 mm | | Weight | 23.5 oz / 666.2 g |
