User Manual for Burris Optics 1-5x24 XTR II Riflescope-FastFire III Combo with AR-P.E.P.R. Mount Click to enlarge the picture
Contents of the user manual for the Burris Optics 1-5x24 XTR II Riflescope-FastFire
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
|
User manual for the Burris Optics 1-5x24 XTR II Riflescope-FastFire contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|

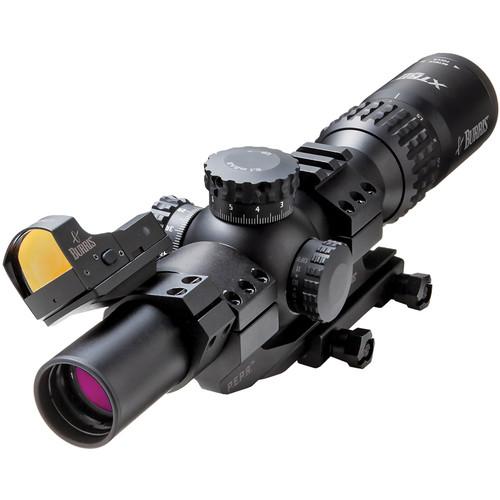

Product description The 1-5x24 XTR II Riflescope-FastFire III Combo with AR-P.E.P.R. Mount from Burris Optics is a complete optical system for your AR platform. It starts with the XTR II riflescope that features Burris' Hi-Lume fully multicoated optics and high-transmission glass to provide bright images with high contrast and true color rendition. The red illuminated ballistic 5.56 Gen 3 reticle is designed with a 0.5 mil thick broken circle with a center dot for medium to long-range use. Hash marks on the horizontal and lower vertical axes aid in calculating range, holdover, and elevation adjustments. Eleven reticle intensity levels let you tailor the reticle brightness to your preference and lighting conditions, with battery-saver modes between each level, to conserve power. The lowest settings are compatible with NVDs for tactical use. Designed for durability, the aluminum housing has a matte-black anodized finish and is nitrogen-filled and o-ring sealed for water and fogproof performance.Complementing the medium to long range capabilities of the XTR II is the FastFire III holographic weapon sight for close to medium distance use. This unmagnified sight features an 8 MOA red aiming dot which is big enough to see in the daylight, but won't obstruct small varmints. Three brightness levels lets you set it to your preference, or switch it to auto and its light sensor will measure the amount of available light and adjust the brightness itself. The FastFire III is made of aluminum with a matte-black anodized finish, and is waterproof and submersible.A 30mm scope tube mount is provided to attach the FastFire II to the XTR II. With the ring design of the mount, you can position the HWS at any angle you'd like; be it directly at the 12 o'clock position or canted on at 45° angle for rapid transition. An AR-P.E.P.R. (Proper Eye Position Ready) mount is included for the scope. This cantilever mount is specifically designed for the AR platform and provides two inches of forward scope position to give you the proper eye relief. As with the scope and HWS, the P.E.P.R. mount is also made of aluminum with a matte-black anodized finish to tie all of the optics together. - 1-5x24 XTR II Riflescope (Ballistic 5.56 Gen 3 Reticle) The 1-5x24 XTR II Riflescope from Burris Optics features Burris' Hi-Lume fully multicoated optics and high-transmission glass to provide you with bright images with high contrast, and true color rendition. The red illuminated ballistic 5.56 Gen 3 reticle is designed with a 0.5 mil broken circle with a center dot for fast target acquisition and tracking. Hash marks on the horizontal and lower vertical axes aid in calculating range, holdover, and elevation adjustments. Eleven reticle intensity levels lets you tailor the reticle brightness to your preference and lighting conditions, with battery-saver modes between each level, to conserve power. The lowest settings are compatible with NVDs for tactical use.The tactical turrets can be re-zeroed after the initial sighting, and feature Posi-Lock which locks the turret rings to keep the scope zeroed over time and prolonged use. Designed for durability, the aluminum housing has a matte-black anodized finish and is nitrogen-filled and o-ring sealed for water and fogproof performance.
- Optical Performance
-
- 1-5x zoom magnification
- 24mm diameter objective lens
- Hi-Lume fully multicoated optics reduces glare and increases light transmission for bright images with high contrast and true color rendition
- Second Focal Plane reticle
- Use and Handling
-
- Illuminated red Ballistic 5.56 Gen 3 reticle optimized for use with 5.56/.223 and 7.62/.308 ammunition
- 0.5 mil wide broken circle with center dot, and horizontal and lower vertical tick marks for ranging, holdover, and elevation adjustment
- 11 brightness settings with 'power-saver' positions between each intensity
- Lowest illumination level compatible with NVDs
- Single-turn W/E knobs: A single turn runs through the entire adjustment range for fast correction and return-to-zero
- Knurled turrets for non-slip grip on all conditions
- Zero Click Stop turrets to quickly return to zero
- Construction Details
-
- 30mm single-piece main-tube
- Aluminum-alloy housing
- Scratch and corrosion-resistant anodized finish
- Matte-black to reduce light signature
- Nitrogen-filled and o-ring sealed for water and fogproof performance
- Posi-Lock system keeps scope zeroed after prolonged use
UPC: 000381010001 FastFire III 8-MOA Red-Dot Reflex Sight (No Mount) The FastFire III Reflex Sight from Burris Optics features a 8-MOA red aiming dot, which is big enough to see in the daylight, but won't obstruct small varmints. Three brightness levels lets you set it to your preference, or switch it to auto and the light sensor will detect the amount of available light and adjust the brightness itself. The FastFire III is made of aluminum with a matte-black anodized finish, and is waterproof and submersible. This sight is offered without a mount. Mounts are sold separately for a variety of rifles and pistols. - Optical Performance
-
- 1x magnification
- 0.8 x 0.6" objective lens window
- Fully coated optics for increased light transmission
- Use and Handling
-
- 8-MOA red dot with three intensity levels and an automatic brightness mode
- 1 MOA impact point correction, 30 MOA per rotation travel
- 86 MOA windage, 115 MOA elevation adjustment range
- Parallax-free from 10 to 150 yd
- Construction Details
-
- Aluminum housing
- Matte-black corrosion and scratch-resistant anodized finish
- Top-loading battery compartment enables battery changes without removing the sight
- Waterproof and submersible
UPC: 000381302373 30mm Scope Tube FastFire Mount The Burris Optics 30mm Scope Tube FastFire Mount allows you to attach a FastFire II/III red dot sight to a 30mm scope for having a short range optic to rapidly switch to from a more powerful primary optic. It can also be used for long-range target acquisition and weapon alignment, supplementing usage of your primary optic. UPC: 000381103383 AR P.E.P.R. Riflescope Mount (1.60" Height) Optimized for AR firearms, the AR P.E.P.R. Riflescope Mount with Quick-Detach Levers from Burris Optics will accept riflescopes with 30mm main tube diameters, provide a height of 1.60" above the mounting rail, and allow up to 2" for forward positioning to ensure proper eye relief. For mounting additional accessories like lasers, flashlights, or cameras, each ring has a Picatinny mounting point on the top. The mount is made of lightweight aluminum with anodized black finish. UPC: 000381103413 In the Box Bundle Items 1-5x24 XTR II Riflescope (Ballistic 5.56 Gen 3 Reticle) beuzvvrcsdbqtvfwfzw - Limited Lifetime Warranty
FastFire III 8-MOA Red-Dot Reflex Sight (No Mount) - Limited Lifetime Warranty
30mm Scope Tube FastFire Mount - Limited Lifetime Warranty
AR P.E.P.R. Riflescope Mount (1.60" Height) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 1-5x24 XTR II Riflescope-FastFire III Combo with AR-P.E.P.R. Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 1-5x24 XTR II Riflescope (Ballistic 5.56 Gen 3 Reticle)
| | | Magnification | 1 to 5x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 108' @ 100 yd / 36 m @ 100 m
5x: 21.5' @ 100 yd / 7.2 m @ 100 m | | Exit Pupil Diameter | 1x: 12 mm
5x: 4.8 mm | | Eye Relief | 3.5 to 4.2" / 88.9 to 108 mm | | | | Reticle Type | Ballistic 5.56 Gen 3 Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 0.1 MIL per Click | | Windage Adjustment | 4.6 MRAD | | Elevation Adjustment | 9.3 MRAD | | Parallax Correction | No | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 11.3" / 28.6 cm | | Weight | 21.1 oz / 598 g | - FastFire III 8-MOA Red-Dot Reflex Sight (No Mount)
| | | Power Source | 1 x CR1632 | | Sight Window Dimensions | 0.8 x 0.6" / 21 x 15 mm | | | | Impact Point Correction | 1 MOA | | Windage Adjustment | 86 MOA | | Elevation Adjustment | 115 MOA | | | | Operating Temperature | -10 to 130°F / -23 to 55°C | | | | Water Resistance | Waterproof | | Dimensions | L: 1.9 x W: 1.0 x H: 1.0" / L: 4.8 x W: 2.5 x H: 2.5 cm | | Weight | 0.9 oz / 25.5 g | | | | Box Dimensions (LxWxH) | 6.0 x 4.6 x 1.6" | - 30mm Scope Tube FastFire Mount
| | | Box Dimensions (LxWxH) | 5.3 x 3.4 x 2.0" | - AR P.E.P.R. Riflescope Mount (1.60" Height)
| Material | Aluminum | | Mount Type | Picatinny | | Main Tube Diameter | 30mm | | Height | 1.60" / 40.6 mm | | Weight | 8.7 oz / 247 g | | | | Box Dimensions (LxWxH) | 8.3 x 5.8 x 1.9" |
