User Manual for Burris Optics 1-8x24 XTR II Riflescope Click to enlarge the picture
Contents of the user manual for the Burris Optics 1-8x24 XTR II Riflescope
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
 |
User manual for the Burris Optics 1-8x24 XTR II Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|

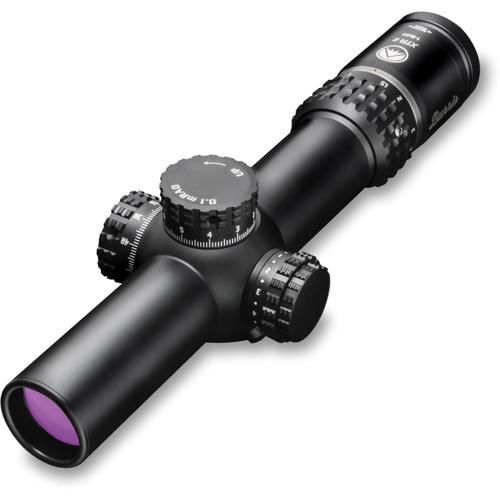

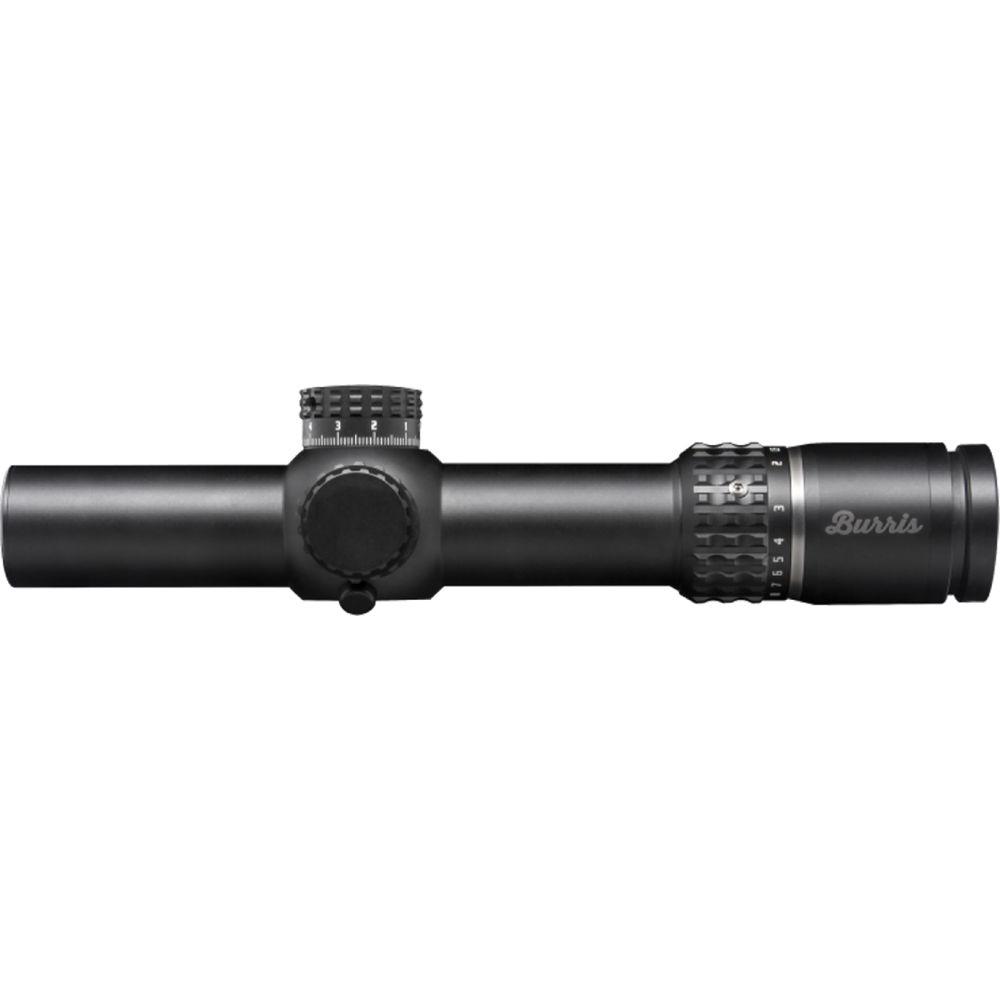

Product description Burris Optics combined state-of-the-art engineering with refinements for accuracy in the 1-8x24 XTR II Riflescope. The optical system offers bright and clear images, with high contrast and true colors, thanks to the indexed-matched multi-coated optics. To compensate for wind and ballistics you have adjustable windage and elevation and a 1/10 mil impact point correction. One of central features of the scope is the Illuminated Ballistic Circle Dot Reticle that is ideal for achieving accuracy with 5.56 and .223 ammunition. It is located in the first focal plane and allows you to estimate accurate ranges at any magnification, while giving both ballistic drop compensation out to 600 yards and windage reference points. The reticle features four tapered posts, illuminated circle, and an ultra-fine illuminated center dot. This pattern is designed to provide speed at low magnifications and precision at high magnifications.
Another definite highlight of this optic is the Modular Adjustment Dial (M.A.D.) System that allows you to choose from competition-style exposed knobs, capped knobs, or custom knobs on both windage and elevation adjustments in order to match precisely the trajectory of your ammunition.
The housing is made of lightweight and durable aluminum with corrosion-resistant anodized finish. It features a 30mm single-piece maintube for resistance to shock and recoil, a nitrogen fill for fog proofing, and O-rings for waterproof performance. The fast focus eyepiece's zoom ring and adjustment turrets and rings feature heavy knurling for improved tactile traction and non-slip operation in all weather conditions. - Ballistic Circle Dot Reticle
-
- 1st focal plane
- Ideal for 5.56 and .223 ammunition
- Ballistic drop compensation out to 600 yards

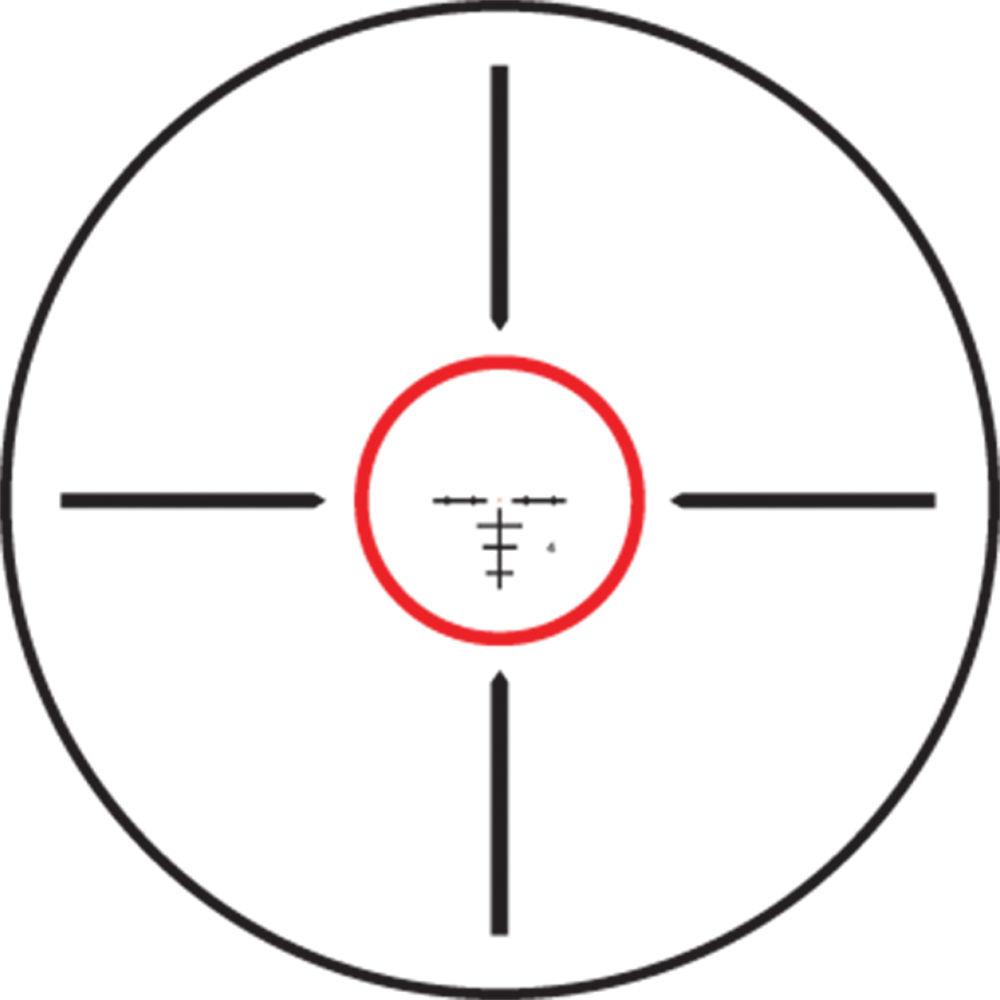

- Four tapered posts
- Illuminated circle
- Ultra-fine illuminated center dot
- 11 illumination brightness levels
- Optical Performance
-
- 1-8x zoom magnification
- 24mm diameter objective lens
- Hi-Lume index-matched anti-reflection coatings:
- Increase transmission
- Deliver bright and clear images
- Ensure low-light performance
- Linear field of view: 105-12.5' at 100 yd
- Use and Handling
-
- 1/10 mil impact point correction
- 30 mil windage and elevation
- Construction Details
-
- 30mm single-piece maintube
- Aluminum alloy housing
- Corrosion-resistant anodized finish
- Modular Adjustment Dial (M.A.D.) System:
- Re-engineered windage and elevation turret adjustment system
- Accepts competition-style exposed or capped knobs
- Allows custom knobs to match the trajectory of your ammunition
- Zero Click Stop function
- Nitrogen-filled, fogproof
- O-ring sealed, waterproof
UPC: 000381010186 In the Box Burris Optics 1-8x24 XTR II Riflescope (Illuminated Ballistic Circle Dot Reticle) - CR-2032 Battery
- 2 x Lens Covers
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 1-8x24 XTR II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 201018 Specs | | | Magnification | 1 to 8x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 105' @ 100 yd / 35 m @ 100 m
8x: 12.5' @ 100 yd / 4.2 m @ 100 m | | Exit Pupil Diameter | 1x: 12 mm
8x: 3 mm | | Eye Relief | 3.5 to 4" / 88.9 to 101.6 mm | | | | Reticle Type | Ballistic Circle Dot Reticle (First Focal Plane) | | | | Impact Point Correction | 0.1 MIL per Click | | Windage Adjustment | 30 MIL | | Elevation Adjustment | 103 MOA | | Parallax Correction | No | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.8" / 273 mm | | Weight | 24.4 oz / 691.7 g | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 15.1 x 4.3 x 3.5" |
