User Manual for Burris Optics 1x20 AR-1x Rifle Sight Kit Click to enlarge the picture
Contents of the user manual for the Burris Optics 1x20 AR-1x Rifle Sight
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
 |
User manual for the Burris Optics 1x20 AR-1x Rifle Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|

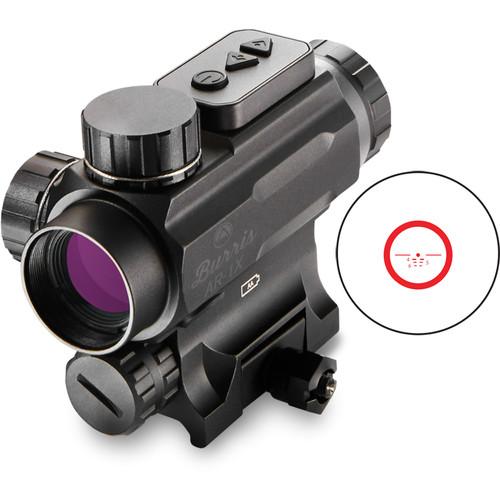

Product description The fogproof and waterproof 1x20 AR-1x Sight Kit from Burris Optics is intended for short range target acquisitions with both eyes open. The kit includes an AR-1x Sight, an AR-Tripler 3x magnifier, an AR-QD quick release mount, features an illuminated Ballistic CQ-1x Reticle and less than 1 MOA of parallax at 100 yards. The anti-reflection coatings are optimized to improve light transmission in low-light conditions and to improve performance when used with night vision devices. For longer range target acquisitions, use the included AR-Triper 3x magnifier. To help you compensate for wind and projectile motion, the sight has a 1/2 MOA impact point correction and a 120 MOA windage and elevation adjustment range. The Ballistic CQ-1x Reticle is etched on a prism and can be used with or without illumination. Without illumination, the reticle appears black. For use in low light conditions, it has red or green illumination options with five brightness levels.

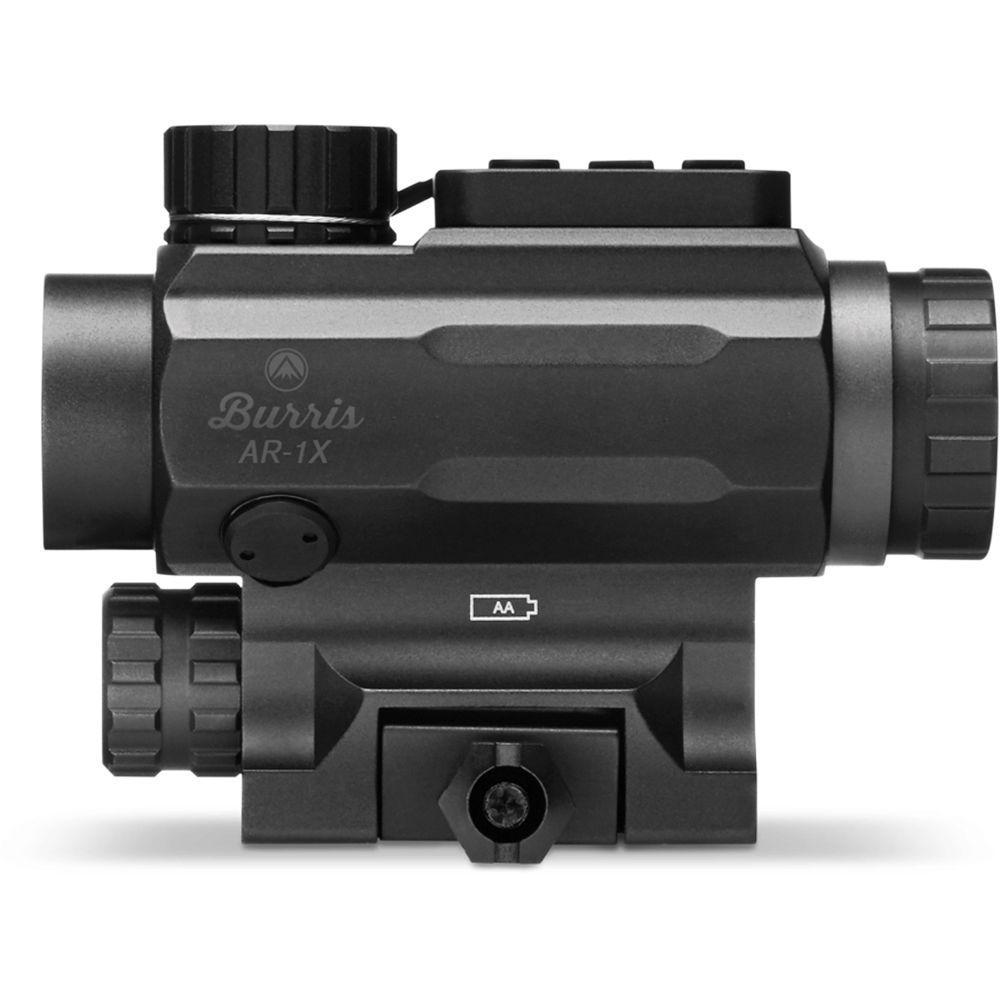

The matte black aluminum housing is shock-resistant, waterproof, fogproof, and has a thumb screw for securing the sight to a Picatinny rail. Also included with the sight are a AA battery, tethered lens caps, an AR-Tripler, and an AR-QD quick detach pivot mount. - Optical Performance
-
- Magnification: 1x, 3x with included magnifier
- 20mm objective diameter
- 75' @ 100 yd linear field of view
- Anti-reflective coated optics
- Reticle
-

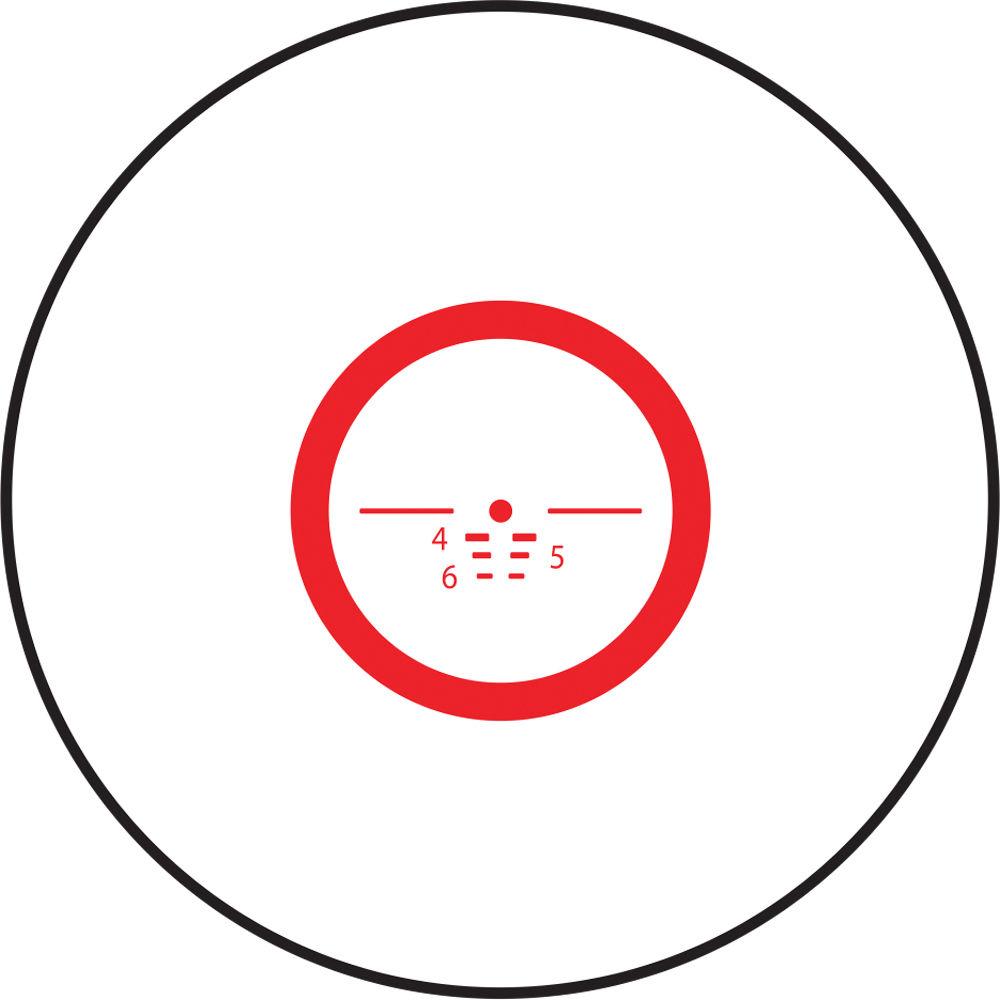

- Ballistic CQ - 1x Reticle, etched on prism
- Red and green illumination options with five brightness levels
- Black color without illumination
- Parallax is less 1 MOA at 100 yd
- Use and Handling
-
- 1/2 MOA impact point correction
- 120 MOA windage and elevation adjustment range
- Top menu buttons allow illumination and brightness operation
- Runs on one AA
- Construction
-
- AR-QD Pivot Mount is the included quick release mount
- Mounts to Picatinny mount
- Aluminum housing with matte black finish
- Waterproof, fogproof, and shock-resistant
UPC: 000381302199 In the Box Burris Optics 1x20 AR-1x Rifle Sight Kit (Ballistic CQ-1x Reticle) - 2 x Tethered Lens Caps
- AA Lithium Battery
- AR-Tripler
- AR-QD Pivot Mount
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 1x20 AR-1x Rifle Sight Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 300219 Specs | | | Magnification | 1x | | Objective Lens Diameter | 20 mm | | Field of View | 75' @ 100 yd / 25 m @ 100 m | | Eye Relief | 2 to 7" / 50 to 175 mm | | | | Reticle Type | Ballistic CQ Reticle | | Illuminated Color | Green, Red | | | | Mounting | Picatinny / Weaver | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 120 MOA | | Elevation Adjustment | 120 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Battery | 1 x AA | | Battery Runtime | 5000 Hours (Maximum) | | Dimensions | Length: 4" / 10.2 cm | | Weight | 13.2 oz / 374 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
