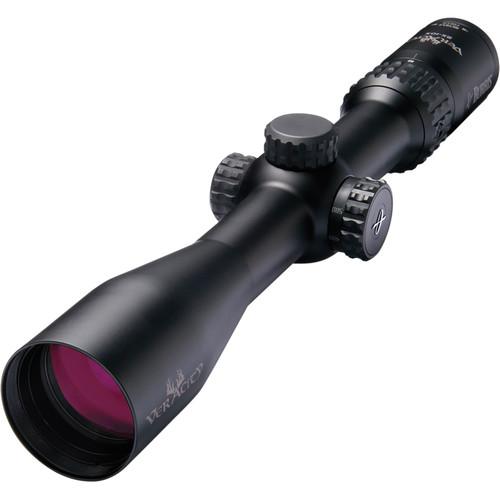

Product description Burris Optics combined state-of-the-art engineering with refinements for accuracy in the 2-10x42 Veracity Riflescope. This riflescope is optimized for hunting prairie predators, elk, or dangerous game. The optical system offers bright and clear images, with high contrast and true colors, thanks to the indexed-matched multi-coated optics. To compensate for wind and ballistics you have adjustable 70 MOA of windage and elevation and a 1/4 MOA impact point correction.
One of central features of this optic is the Illuminated Ballistic E1 FFP Reticle. It is located in the first focal plane and allows you to estimate accurate ranges, ballistic drop, and windage at any magnification with its system of reference points. The reticle features the Progressively Thick Crosshair System (PTC), which has a crosshair with a fine center and gradually thickening lines and posts. This pattern is designed to provide you with ultra-fast aiming at any range and high visibility in low-light conditions.
The housing is made of lightweight and durable aluminum with corrosion-resistant anodized finish. It features a 30 mm single-piece main tube for resistance to shock and recoil, a nitrogen fill for fog proofing, and O-rings for waterproof performance. The fast focus eyepiece's zoom ring and adjustment turrets and rings feature heavy knurling for improved tactile traction and non-slip operation in all weather conditions. - Optical Performance
-
- 2-10x magnification
- 42mm objective lens
- Index-matched Hi-Lume multiple anti-reflection coatings:
- Increase transmission
- Deliver bright and clear images
- Ensure low-light performance
- 52-10.5' field of view at 100 yd
- Ballistic E1 FFP Reticle
-
- Crosshair-style
- 1st focal plane
- Maintains ranging proportions with zoom
- Vertical hash-marks for ballistic drop out to 600 yd
- Progressively Thick Crosshair (PTC):
- Thick on the edges
- Tapers to ultra-thin hairs at the aiming point
- Windage dots are calibrated for 10 mph winds
- Use and Handling
-
- 1/4 MOA per click impact point correction
- 70 MOA windage and elevation adjustment
- Construction Details
-
- 30mm single-piece main tube
- Lightweight and durable aluminum housing
- Corrosion-resistant anodized finish
- Side focus parallax correction turret
- Fast focus eyepiece with 4.3" eye relief
- Low-profile capped knurled windage and elevation turrets
- Zero Click Stop function
- Nitrogen-filled, fogproof
- O-ring sealed waterproof
UPC: 000381006202 In the Box Burris Optics 2-10x42 Veracity Riflescope (Ballistic E1 Reticle) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 2-10x42 Veracity Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200620 Specs | | | Magnification | 2 to 10x | | Objective Lens Diameter | 42 mm | | Field of View | 2x: 52' @ 100 yd / 17.3 m @ 100 m
10x: 10.5' @ 100 yd / 3.5 m @ 100 m | | Exit Pupil Diameter | 2x: 21 mm
10x: 4.2 mm | | Eye Relief | 3.5 to 4.3" / 89 to 108 mm | | | | Reticle Type | Ballistic E1 Reticle (First Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 70 MOA | | Elevation Adjustment | 70 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.5" / 342.9 mm | | Weight | 22.7 oz / 643.5 g | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 19.3 x 4.8 x 4.1" |
