Product description The waterproof and fogproof 2-10x42 XTR II Riflescope from Burris Optics features a first focal plane illuminated SCR MOA Reticle, anti-reflection coated optics, a quick zoom eyepiece, and a shock-resistant maintube. The multiple Hi-Lume anti-reflection coatings deliver high transmission of light, reduce glare, and improve image brightness in low light. Among other optical performance highlights are the 2- 10x zoom and the 3.5-4.25" long eye relief. To allow you to counter setbacks from bullet drop and wind drift, the riflescope offers 55 MOA windage and 90 MOA elevation ranges with a 1/4 MOA impact point correction.

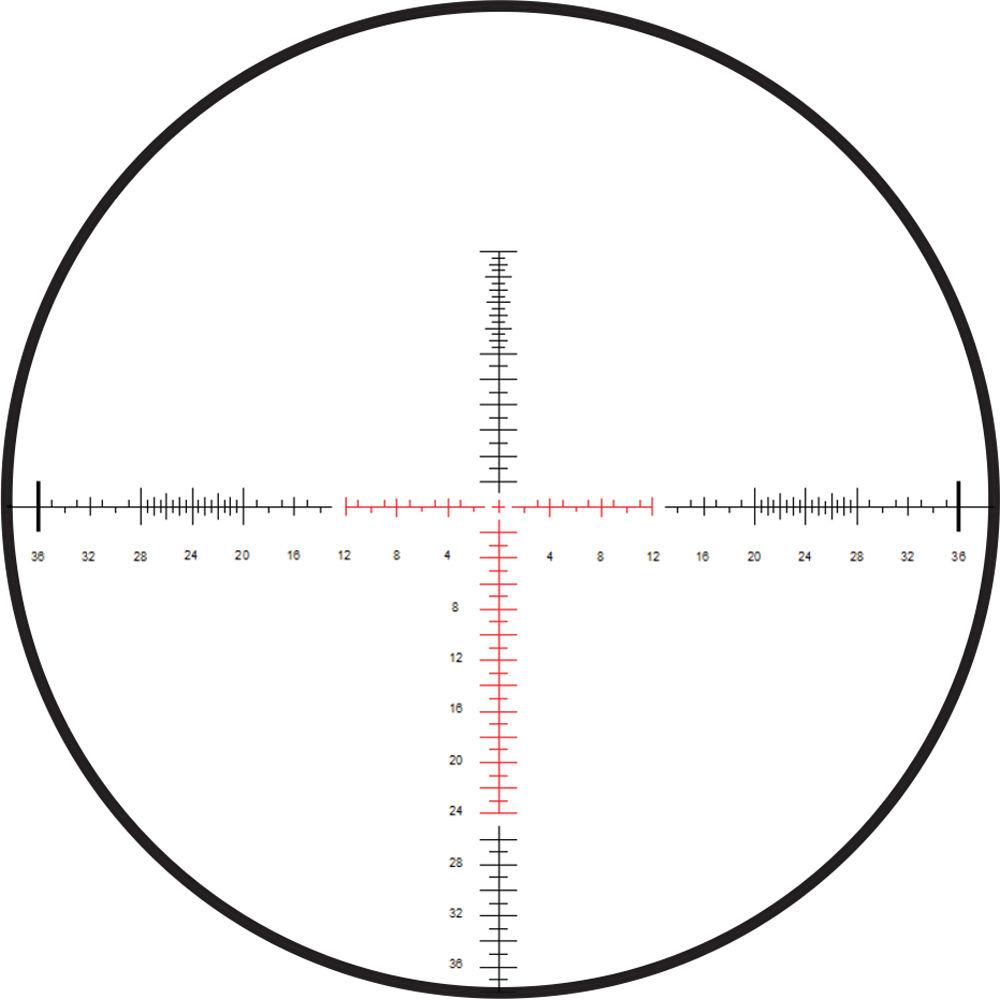

The SCR MOA Reticle, located in the first focal plane, is intended for long range special competitions and features an extended illuminated area. The crosshair will change in size as you change your zoom factor, but it will provide accurate trajectory compensations and wind hold-off references at any magnification. To provide you with an adequate visibility in a variety of lighting conditions, there are eleven brightness settings.
The waterproof and fogproof housing features a single-piece aluminum maintube with a hard anodized matte black finish. The eyepiece offers a quick zoom and focus, which allow for a fast target acquisition. The zoom ring and adjustment knobs have heavy knurling for slip-free tactile traction and fast adjustments. - Illuminated SCR MOA Reticle
-
- 1st focal plane
- Intended for long range competition
- Extended illumination center area
- 1 MOA holdover lines
- 1/2 MOA and 1 MOA windage hold-off lines for precision
- 1/4 MOA ranging brackets on the crosshair
- Parallax correction from 50 yd to infinity
- Optical Performance
-
- 42mm objective delivers bright images in most light conditions
- Index-matched Hi-Lume multiple anti-reflection coatings:
- Increase transmission
- Deliver bright and clear images
- Ensure low-light performance
- Linear field of view: 52 - 10.5' at 100 yd
- Eye relief: 3.5 - 4.25"
- Use and Handling
-
- 1/4 MOA impact point correction
- 90 MOA elevation adjustment range
- 55 MOA windage range
- Construction Details
-
- 34mm maintube
- Single-piece aluminum
- Capped, finger-operated turrets
- Side focus parallax correction knob
- Zero Click Stop adjustments
- Corrosion-resistant anodized finish
- Knurled zoom eyepiece for easy adjustments
- Nitrogen-purged, fogproof
- O-ring sealed, waterproof
- Double spring-tension system:
- Resists shock, recoil, and vibrations
UPC: 000381010223 In the Box Burris Optics 2-10x42 XTR II Riflescope (Illuminated SCR MOA Reticle) CR-2032 Battery 2 x Lens Covers Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 2-10x42 XTR II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 201022 Specs | | | Magnification | 2 to 10x | | Objective Lens Diameter | 42 mm | | Field of View | 2x: 52' @ 100 yd / 17.3 m @ 100 m
10x: 10.5' @ 100 yd / 3.5 m @ 100 m | | Exit Pupil Diameter | 2x: 12 mm
10x: 4.2 mm | | Eye Relief | 3.5 to 4.2" / 88.9 to 108 mm | | | | Reticle Type | SCR MOA Reticle (First Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 55 MOA | | Elevation Adjustment | 90 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.5" / 342.9 mm | | Weight | 22.7 oz / 644 g | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 19.4 x 4.8 x 4.1" |
