User Manual for Burris Optics 2-10x42 XTR II Riflescope Click to enlarge the picture
Contents of the user manual for the Burris Optics 2-10x42 XTR II Riflescope
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
 |
User manual for the Burris Optics 2-10x42 XTR II Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|

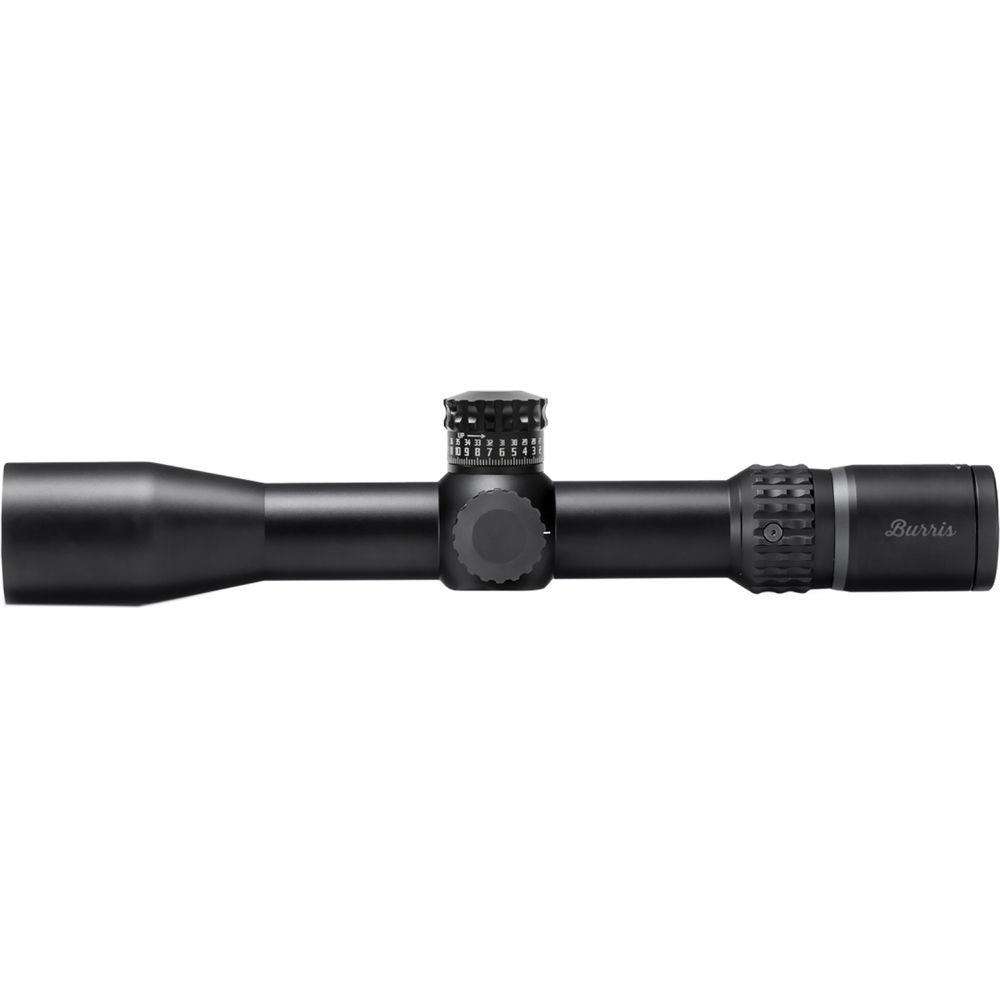

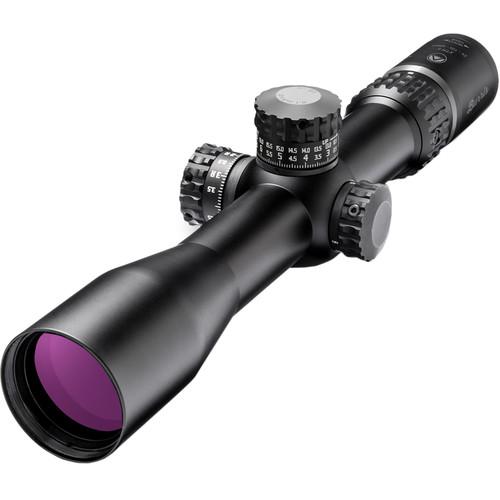

Product description The waterproof and fogproof 2-10x42 XTR II Riflescope from Burris Optics features a first focal plane G2B Mil-Dot Reticle, anti-reflection coated optics, a quick zoom eyepiece, and a shock-resistant maintube. The multiple Hi-Lume anti-reflection coatings deliver high transmission of light, reduce glare, and improve image brightness in low light. Among other optical performance highlights are the 2- 10x zoom and the 3.5-4.25" long eye relief. To allow you to counter setbacks from bullet drop and wind drift, the riflescope offers 16 mil windage and 26.2 mil elevation ranges with a 1/10 mil impact point correction.

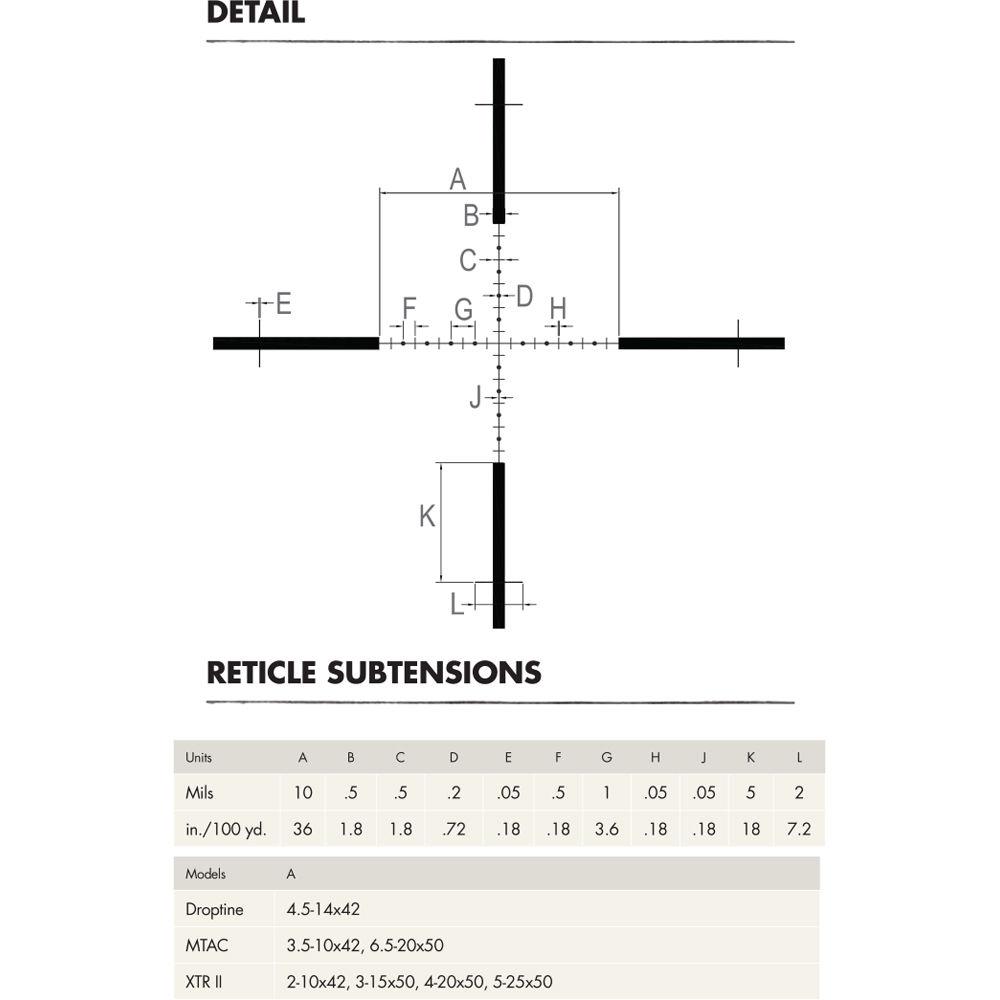

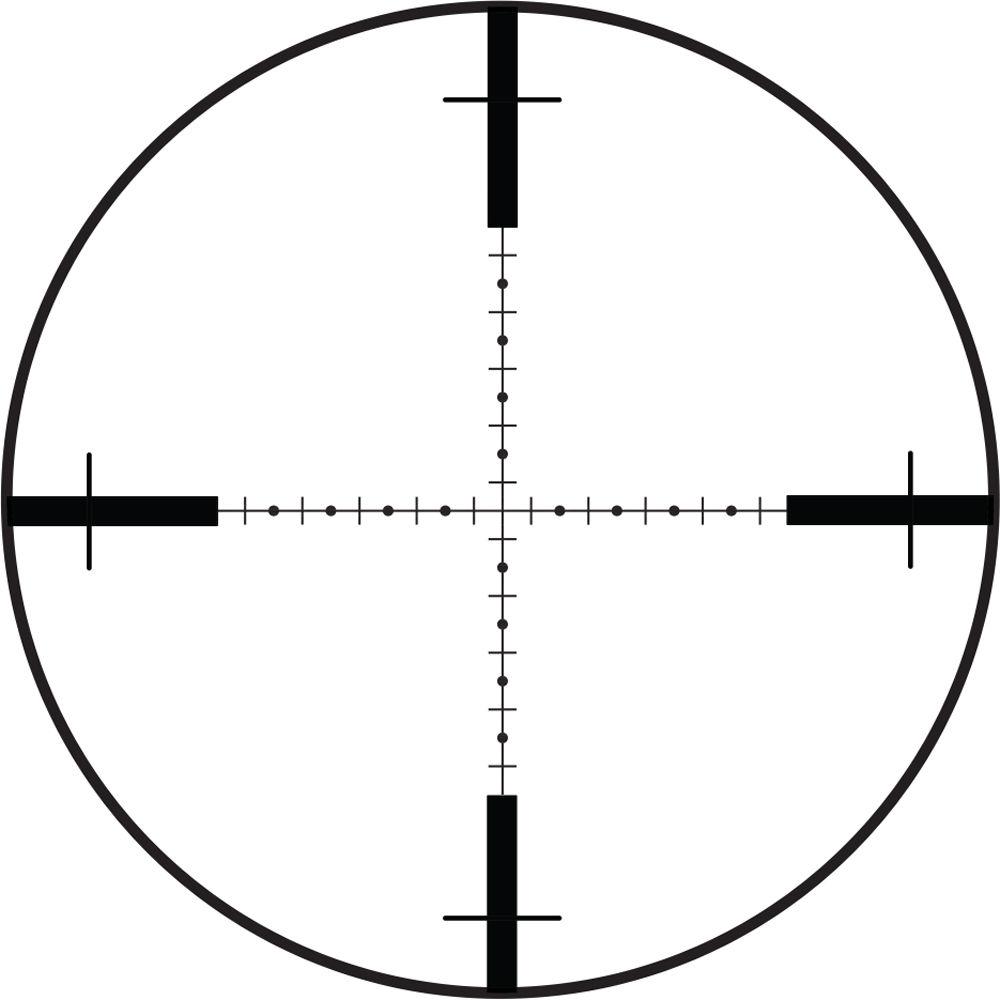

The G2B Mil-Dot reticle, located in the first focal plane, is ideal for mid-to-long-range tactical shooting. It offers mil-based measurements and features four bold posts, a thin crosshair, and a system of intermittent dot- and line-based markings. You can use its 1/2-mil hash marks between 1-mil dots for precise aiming, distance measurement, holdover, and windage hold-offs.
The waterproof and fogproof housing features a single-piece aluminum maintube with a hard anodized matte black finish. The eyepiece offers a quick zoom and focus, which allow for a fast target acquisition. The zoom ring and adjustment knobs have heavy knurling for slip-free tactile traction and fast adjustments. - G2B Mil-Dot Reticle
-
- 1st focal plane
- Mil-based measurements
- Four bold posts, thin crosshair, and intermittent dot- and line-based markings:
- 1/2-mil hash marks between 1-mil dots
- Precise aiming, ranging, holdover, and windage hold-offs
- Ideal for mid-to-long-range tactical shooting
- Parallax correction from 50 yd to infinity
- Optical Performance
-
- 42mm objective delivers bright images in most light conditions
- Index-matched Hi-Lume multiple anti-reflection coatings:
- Increase transmission
- Deliver bright and clear images
- Ensure low-light performance
- Linear field of view: 52 - 10.5' at 100 yd
- Eye relief: 3.5 - 4.25"
- Use and Handling
-
- 1/10 mil impact point correction
- 26.2 mil elevation adjustment range
- 16 mil windage range
- Construction Details
-
- 34mm maintube
- Single-piece aluminum
- Capped, finger-operated turrets
- Side focus parallax correction knob
- Zero Click Stop adjustments
- Corrosion-resistant anodized finish
- Knurled zoom eyepiece for easy adjustments
- Nitrogen-purged, fogproof
- O-ring sealed, waterproof
- Double spring-tension system:
- Resists shock, recoil, and vibrations
In the Box Burris Optics 2-10x42 XTR II Riflescope (G2B Mil-Dot Reticle) 2 x Lens Covers Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 2-10x42 XTR II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 201023 Specs | | | Magnification | 2 to 10x | | Objective Lens Diameter | 42 mm | | Field of View | 2x: 52' @ 100 yd / 17.3 m @ 100 m
10x: 10.5' @ 100 yd / 3.5 m @ 100 m | | Exit Pupil Diameter | 2x: 12 mm
10x: 4.2 mm | | Eye Relief | 3.5 to 4.2" / 88.9 to 108 mm | | | | Reticle Type | G2B MIL Dot Reticle (First Focal Plane) | | | | Impact Point Correction | 1/10 MIL per Click | | Windage Adjustment | 16 MIL | | Elevation Adjustment | 26.2 MIL | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.5" / 342.9 mm | | Weight | 22.7 oz / 644 g |
