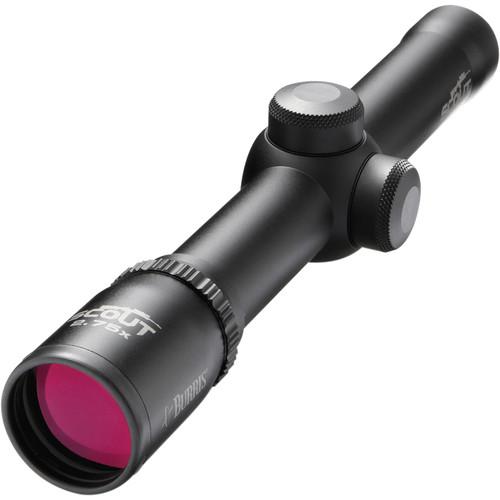

Product description The 2.75x20 Scout Riflescope from Burris Optics is designed with a low-profile form factor and a relatively low magnification for both stalking or stationary use at medium-range. Anti-reflection multicoated optics maximizes light transmission which helps produce brighter images with true color transmission.Its Heavy Plex duplex crosshair reticle features extra thick posts that are easy to see in low light. The posts taper to points that lead the eye to the thin center hairs. These provide a precise aiming point without obstructing the view of the target. Built for use in the field, the aluminum housing has a matte-black corrosion and scratch-resistant finish, and is nitrogen filled for water and fogproof performance. - Optical Performance
-
- 2.75x magnification
- 20mm objective lens
- Anti-reflection multicoated optics reduces light loss for increased brightness and contrast
- Heavy Plex Reticle
-
- Non-illuminated duplex crosshair
- Extra-thick posts are easily visible, even in low light
- Thin hairs provide precision aiming point without obstructing target
- Reticle placed on rear (second) focal plane
- Use and Handling
-
- 1/2 MOA per click impact point correction
- 140 MOA windage and elevation adjustment range
- Capped turrets are resettable to zero after initial sighting
- Fast focus eyepiece with 7.3" eye relief
- Construction Details
-
- Aluminum housing with 1" one-piece main-tube
- Scratch and corrosion-resistant matte-black anodized finish
- Nitrogen-filled for water and fogproof performance
UPC: 000381002693 In the Box Burris Optics 2.75x20 Scout Riflescope (Heavy Plex Reticle) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 2.75x20 Scout Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200269 Specs | | | Magnification | 2.75x | | Objective Lens Diameter | 20 mm | | Field of View | 15' @ 100 yd / 5 m @ 100 m | | Exit Pupil Diameter | 7.3 mm | | Eye Relief | 7.3" / 185 mm | | | | Reticle Type | Heavy Plex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 140 MOA | | Elevation Adjustment | 140 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 9.2" / 23.4 cm | | Weight | 7 oz / 198.5 g |
