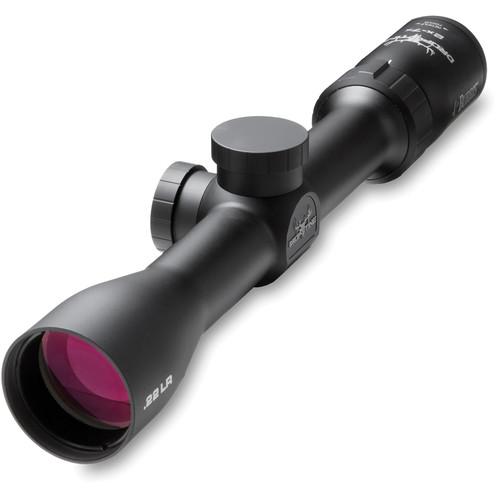

User Manual for Burris Optics 2-7x35 DropTine Riflescope Click to enlarge the picture
Contents of the user manual for the Burris Optics 2-7x35 DropTine Riflescope
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
|
User manual for the Burris Optics 2-7x35 DropTine Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|
Product description The 2-7x35 DropTine Riflescope from Burris Optics is a versatile, simple, and streamlined scope for close to medium-distance uses. The optics have Burris' Hi-Lume anti-reflection and glare-resistant multicoatings. These increase light transmission so views through the scope are clear and bright with true color representation and high contrast.To complement the scope's versatility is the Ballistic Plex 22LR reticle. It's a duplex crosshair-style that's optimized for the specific ballistic characteristics of .22 caliber long rifles. Stadia on the lower vertical hair aid in calculating ballistic drop to as much as 150 yards, depending on the load and zero distance. - Optical Performance
-
- 2-7x magnification
- 35mm objective lens
- Hi-Lume anti-reflection multicoated optics reduces glare and increases light transmission for clear and bright images
- 45-13' field of view at 100 yards
- Ballistic Plex 22LR Reticle
-
- Optimized for .22 caliber long rifles
- Duplex crosshair-style reticle with stadia on lower vertical axis for ballistic drop compensation at extended distances
- Reticle placed on rear (second) focal plane
- Use and Handling
-
- 1/2 MOA per click impact point correction
- 60 MOA windage and elevation adjustment
- Low-profile capped turrets are resettable to zero after initial sighting
- Parallax correction turret on left side
- Fast focus eyepiece with 4.3" eye relief
- Construction Details
-
- Aluminum housing with 1" one-piece main-tube
- Scratch and corrosion-resistant matte-black anodized finish
- Nitrogen-filled for water and fogproof performance
UPC: 000381000156 In the Box Burris Optics 2-7x35 DropTine Riflescope (Ballistic Plex 22LR Reticle) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 2-7x35 DropTine Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200015 Specs | | | Magnification | 2 to 7x | | Objective Lens Diameter | 35 mm | | Field of View | 2x: 45' @ 100 yd / 15 m @ 100 m
7x: 13' @ 100 yd / 4.3 m @ 100 m | | Exit Pupil Diameter | 2x: 17 mm
7x: 5 mm | | Eye Relief | 3.1 to 4.1" / 79 to 104 mm | | | | Reticle Type | Ballistic Plex 22LR Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 11.4" / 28.9 cm | | Weight | 12 oz / 340 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 12.0 x 3.2 x 2.8" |
