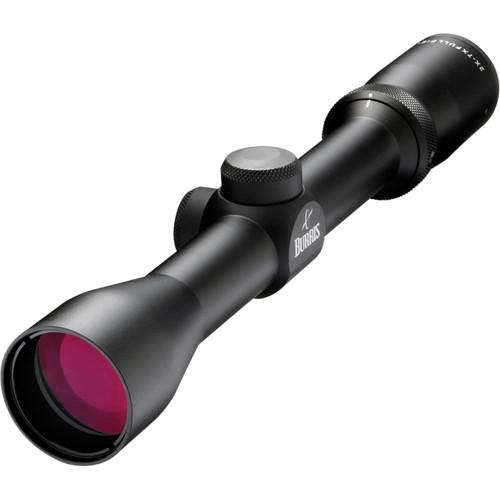

User Manual for Burris Optics 2-7x35 Fullfield II Riflescope Click to enlarge the picture
Contents of the user manual for the Burris Optics 2-7x35 Fullfield II Riflescope
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
|
User manual for the Burris Optics 2-7x35 Fullfield II Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|
Product description The matte-black 2-7x35 Fullfield II Riflescope from Burris Optical is designed for medium distance use in the field or at the range. Its optical system uses index-matched Hi-Lume multi-coated lenses with a functional 35mm objective lens to produce views that are bright and clear with high contrast and true color representation, even in low-light. The smaller objective also allows for a lower mounting height to limit the rifle's profile and reduce potential snags.Covered turrets keep rain, mud, and dirt off while eliminating the possibility of accidental adjustments while moving through heavy brush. The turrets are also finger-adjustable to quickly compensate for changing conditions in the field. To get you on-target, the turrets have 1/2 MOA per click adjustment and a total range of 60 MOA. A simple modified duplex reticle has BDC stadia on the lower hair for long-range drop compensation without the need or turret adjustment. - Optical Performance
-
- 2-7x zoom magnification
- 35mm objective lens
- Index-matched, Hi-Lume multi-coated lenses reduce glare while improving light transmission to produce high-contrast images with true color representation
- 45-13' field of view at 100 yards
- 3.1-4.1" eye relief
- 17-5mm exit pupil
- Reticle Details
-
- Modified duplex crosshair
- Long, thick outer posts are easily visible, even in low light
- Thin center hairs provide precision aiming point without obstructing target
- Extended lower crosshair with stadia to calculate ballistic drop
- Can be used with any ammunition and load
- Reticle placed on rear (second) focal plane
- At high magnification, long distance shooting center hairs remain thin so as to not obstruct target
- Use and Handling
-
- Slip-resistant textured and rubberized zoom collar
- 1/2 MOA per click impact point correction
- 60 MOA windage and elevation adjustment range
- Turrets
- Low-profile to limit snags
- Finger adjustable for fast adjustments in the field
- Capped keep dust, dirt and mud out while preventing accidental adjustment
- Re-settable to zero after initial sighting
- Parallax free to 100 yards
- Construction Details
-
- One-piece 1" main-tube
- Lightweight and durable aluminum alloy housing
- Scratch and corrosion-resistant matte black anodized finish
- Nitrogen-filled, water and fogproof
- Recoil-resistant to stand up to repeated shots
- Weight: 12 ounces
UPC: 000381001238 In the Box Burris Optics 2-7x35 Fullfield II Riflescope (Ballistic Plex Reticle, Matte Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 2-7x35 Fullfield II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200123 Specs | | | Magnification | 2 to 7x | | Objective Lens Diameter | 35 mm | | Field of View | 2x: 45' @ 100 yd / 15 m @ 100 m
7x: 13' @ 100 yd / 4.3 m @ 100 m | | Exit Pupil Diameter | 2x: 17 mm
7x: 5 mm | | Eye Relief | 3.1 to 4.1" / 79 to 104 mm | | | | Reticle Type | Ballistic Plex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 11.4" / 28.9 cm | | Weight | 12 oz / 340.2 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 12.0 x 3.1 x 2.8" |
