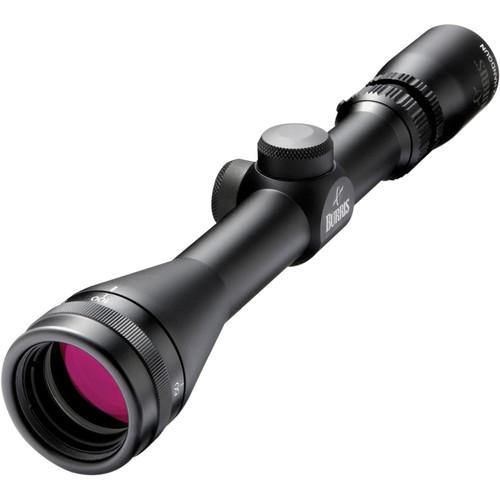

Product description The matte black 3-12x32 Handgun Scope from Burris Optical is specifically designed for handgun precision aiming in the field or at the range. Its optical system uses index-matched, multicoated lenses with a very functional 32mm objective lens to produces views that are bright and clear with high contrast and true color representation. The covered targeting turrets make accurate adjustments easy, and with the Zero Click Stop system, there is no need to count clicks to return to zero after making temporary adjustments. To get you on-target, the turrets have 1/8 MOA per click adjustment and a total range of 28 MOA. This scope also features a third turret for parallax adjustment to increase accuracy at longer ranges.Its Ballistic Plex duplex crosshair reticle features thick posts that are easy to see in low light. The posts taper to points that lead the eye to the thin center hairs marked with hashmarks for precision ranging. These provide a precise aiming point without obstructing the view of the target. Built for use in the field, the aluminum housing has a matte black corrosion and scratch-resistant finish, and is nitrogen filled for water and fogproof performance. - Optical Performance
-
- 3x - 12x magnification
- 32mm objective lens
- Index-matched, Hi-Lume multicoated lenses provide increased target resolution, contrast
- 14 - 4' @ 100 yd / 4.7 - 1.3 m @ 100 m field of view
- Ballistic Plex Reticle
-
- Non-illuminated crosshair
- Thick posts are easily visible, even in low light
- Thin hairs provide precision aiming point without obstructing target
- Reticle placed on rear (second) focal plane
- Use and Handling
-
- 1/8 MOA per click impact point correction
- 28 MOA windage and elevation adjustment
- Targeting turrets can be reset to zero after initial sighting
- Side parallax adjustment turret
- 19.0" maximum eye relief
- Construction Details
-
- Aluminum housing with 1" one-piece main-tube
- Scratch and corrosion-resistant matte black anodized finish
- Nitrogen-filled, water and fogproof
- All internal assemblies are triple-spring tensioned for shock-proof performance
- Knurled turret and focus knobs for easy adjustments in cold and wet weather
UPC: 000381003096 In the Box Burris Optics 3-12x32 Handgun Scope (Ballistic Plex Reticle - Matte Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 3-12x32 Handgun Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200309 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 32 mm | | Field of View | 3x: 14' @ 100 yd / 4.7 m @ 100 m
12x: 4' @ 100 yd / 1.3 m @ 100 m | | Exit Pupil Diameter | 3x: 11 mm
12x: 2.7 mm | | Eye Relief | 10 to 19" / 25.4 to 48.3 cm | | | | Reticle Type | Ballistic Plex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/8 MOA per Click | | Windage Adjustment | 28 MOA | | Elevation Adjustment | 28 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 10.8" / 27.4 cm | | Weight | 16 oz / 453.6 g |
