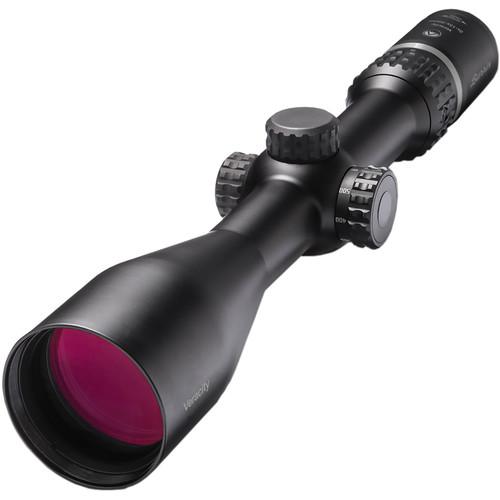

Product description Burris Optics combines state-of-the-art engineering with refinements for accuracy in the 3-15x50 Veracity Riflescope. This riflescope is optimized for hunting prairie predators, elk, or dangerous game. The optical system offers bright and clear images, with high contrast and true colors, thanks to the to the indexed-matched multi-coated optics. To compensate for wind and ballistics you have adjustable windage and elevation and a 1/4 MOA impact point correction.

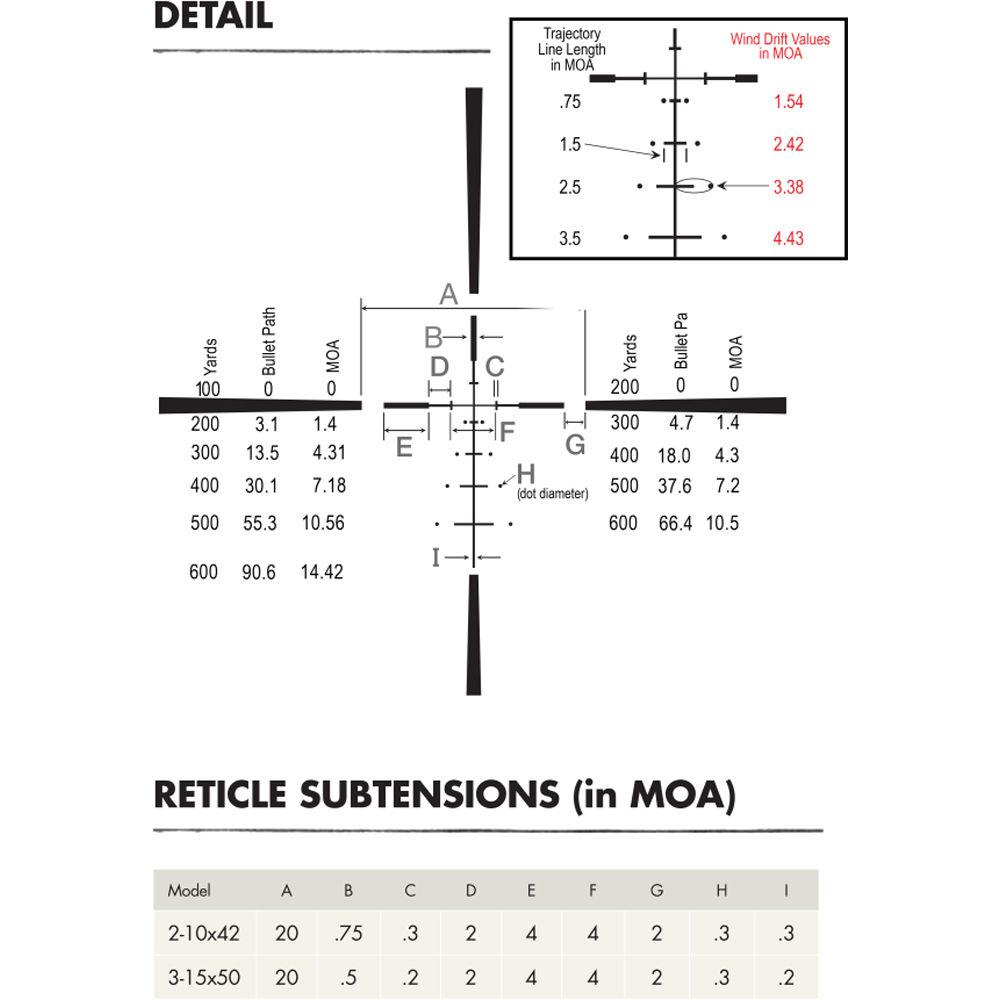

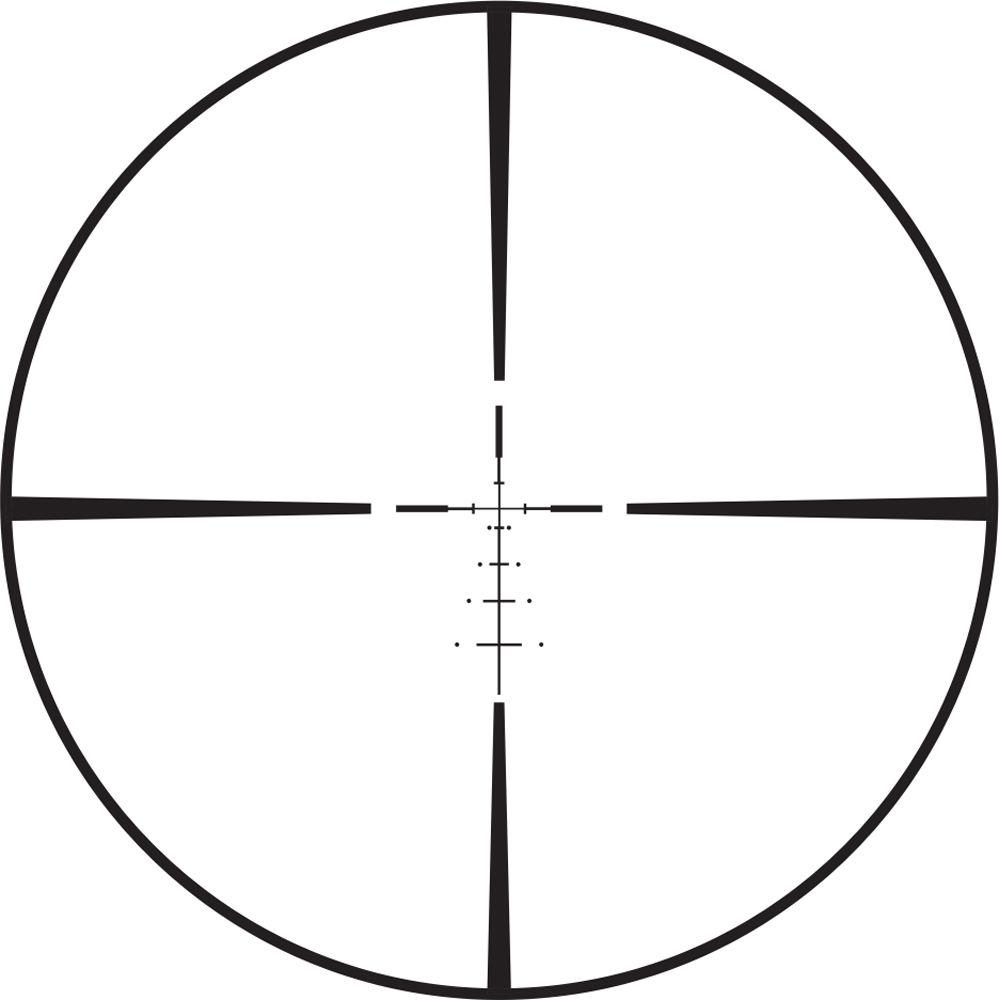

One of the central features of this optic is the Illuminated Ballistic E1 FFP Reticle. It is located in the first focal plane and allows you to estimate accurate ranges, ballistic drop, and windage at any magnification with its system of reference points. The reticle features the Progressively Thick Crosshair System (PTC), which has a crosshair with a fine center and gradually thickening lines and posts. This pattern is designed to provide you with ultra-fast aiming at any range and high visibility in low-light conditions.
A another definite highlight of this optic is the Modular Adjustment Dial (M.A.D.)
System that allows you to choose from competition-style exposed knobs, capped knobs, or custom knobs on both windage and elevation adjustments in order to match precisely the trajectory of your ammunition.

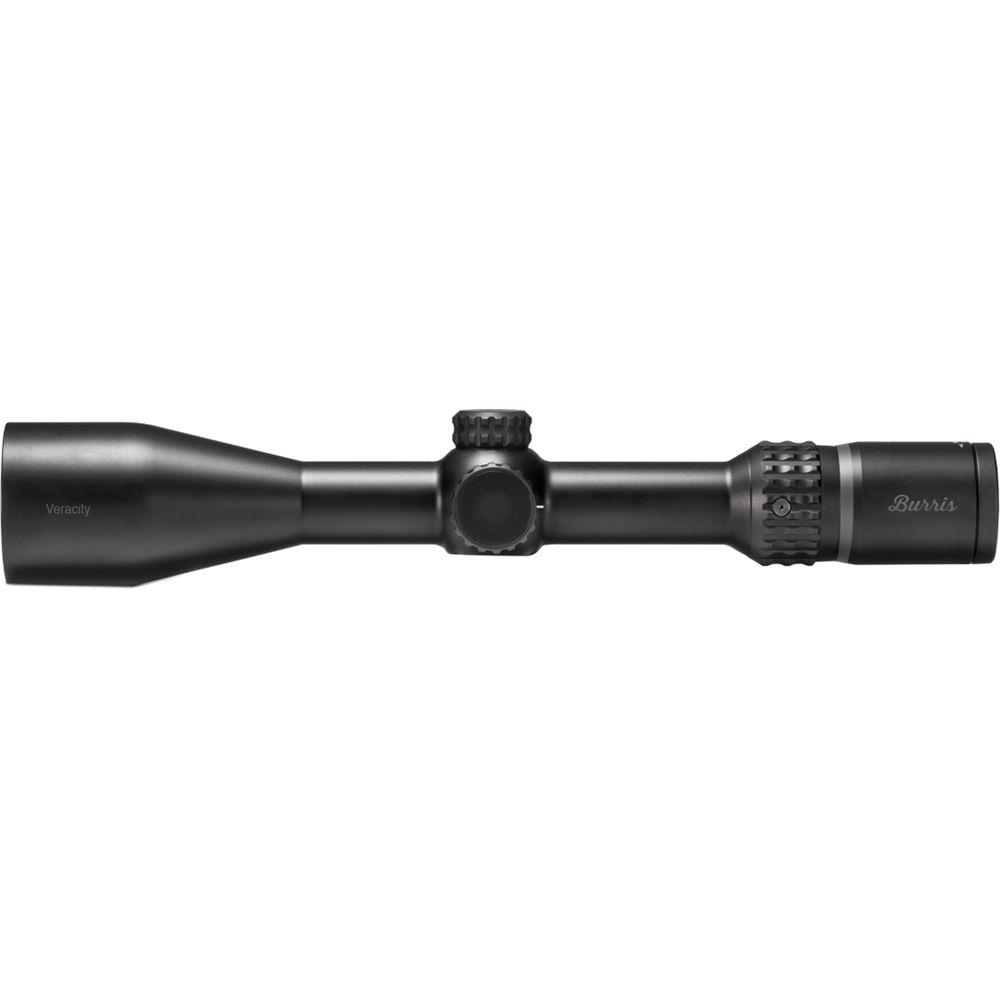

The housing is made of lightweight and durable aluminum with a corrosion-resistant anodized finish. It features a 30mm single-piece maintube for resistance to shock and recoil, a nitrogen filling for fog proofing, and O-rings for waterproof performance. The fast focus eyepiece's zoom ring and adjustment turrets and rings feature heavy knurling for improved tactile traction and non-slip operation in all weather conditions. - Optical Performance
-
- 3-15x magnification
- 50mm objective lens
- Index-matched Hi-Lume multiple anti-reflection coatings:
- Increase transmission
- Deliver bright and clear images
- Ensure low-light performance
- Linear field of view: 36-7.5' at 100 yd
- Ballistic E1 FFP Reticle
-
- Crosshair-style
- 1st focal plane
- Maintains ranging proportions with zoom
- Vertical hash-marks for ballistic drop out to 600 yd
- Progressively Thick Crosshair (PTC):
- Thick on the edges
- Tapers to ultra-thin hairs at the aiming point
- Windage dots are calibrated for 10 mph winds
- Use and Handling
-
- 1/4 MOA impact point correction
- 40 MOA windage range
- 70 MOA elevation range
- Construction Details
-
- Aluminum housing with 30mm one-piece maintube
- Corrosion-resistant matte-black anodized finish
- Side focus parallax correction turret
- Fast focus eyepiece with 4.3" eye relief
- Modular Adjustment Dial (M.A.D.)
System
- Re-engineered windage and elevation turret adjustment system
- Accepts competition-style exposed knobs or capped knobs
- Allows custom knobs to match the trajectory of your ammunition
- Zero Click Stop function
- Nitrogen-filled, fogproof
- Waterproof, sealed with O-rings
UPC: 000381006363 In the Box Burris Optics 3-15x50 Veracity Riflescope with M.A.D. Knob System (Ballistic E1 Reticle) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 3-15x50 Veracity Riflescope with M.A.D. Knob System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200636 Specs | | | Magnification | 3 to 15x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 36' @ 100 yd / 12 m @ 100 m
15x: 7.5' @ 100 yd / 2.5 m @ 100 m | | Exit Pupil Diameter | 3x: 16 mm
15x: 3.3 mm | | Eye Relief | 3.5 to 4.3" / 89 to 108 mm | | | | Reticle Type | Ballistic E1 Reticle (First Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 70 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 14.1" / 358 mm | | Weight | 25.1 oz / 711.6 g | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 17.4 x 4.7 x 4.2" |
