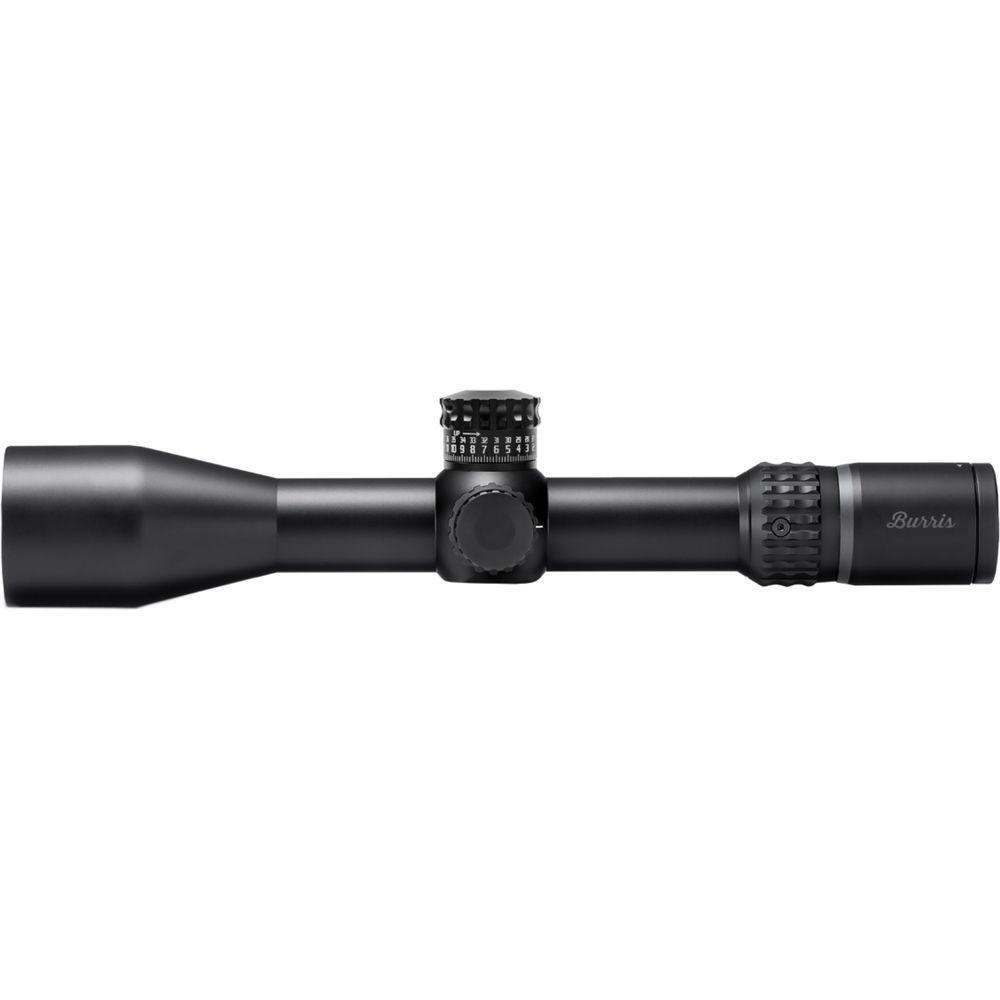

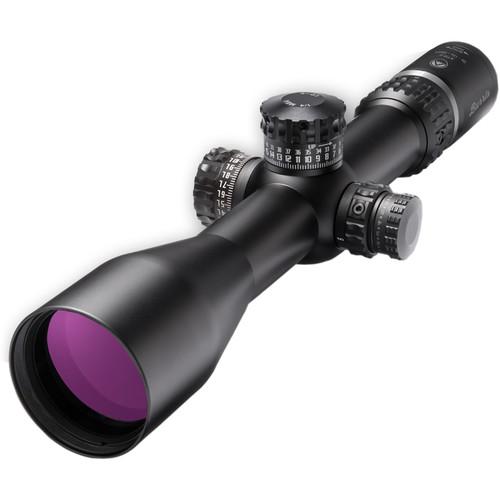

Product description Gain tactical advantage with Burris Optics' 3-15x50 XTR II Side Focus Riflescope. This riflescope is intended for tactical and competitive shooters and represents a robust and precise optic with a 5x optical system and a thicker maintube (25%) than the original XTR riflescope. The lenses feature index-matched fully multi-coated surfaces that deliver great clarity and visibility in most lighting or environmental conditions. In addition to excellent image quality, this optic provides a generous maximum eye relief of 4.25", windage and elevation adjustments, and an illuminated G2B Mil-Dot. This 1st focal plane optic features a MIL-based modified duplex-style reticle that offers four posts with brackets and an illuminated milling crosshair for ranging targets. It is intended for engaging targets at medium to long ranges in tactical situations.
Designed for a lifetime of service, the 6061-T6 aluminum housing (with a single-piece 34mm maintube) is waterproof, fogproof, and shock-resistant. Featuring Burris' triple internal spring-tension system, it will hold zeros through hard recoil and impact. Also noteworthy, are its graduated and finely knurled XT-100 windage and elevation turrets that allow 10 MIL per revolution and Zero Click Stop technology that allows a quick and easy return to zero. To improve aiming precision by removing ambiguity, the side focus parallax corrector offer a range from 50 yards to infinity. - Optical Performance
-
- 5x optical system, resulting in a 3 - 15x total zoom
- 50mm objective delivers bright images even in low light
- High-grade optical glass provides excellent brightness and clarity with lasting durability
- Index-matched, fully multi-coated optics increase transmission and reduce glare
- Linear field of view: 36.0 - 7.5' at 100 yd

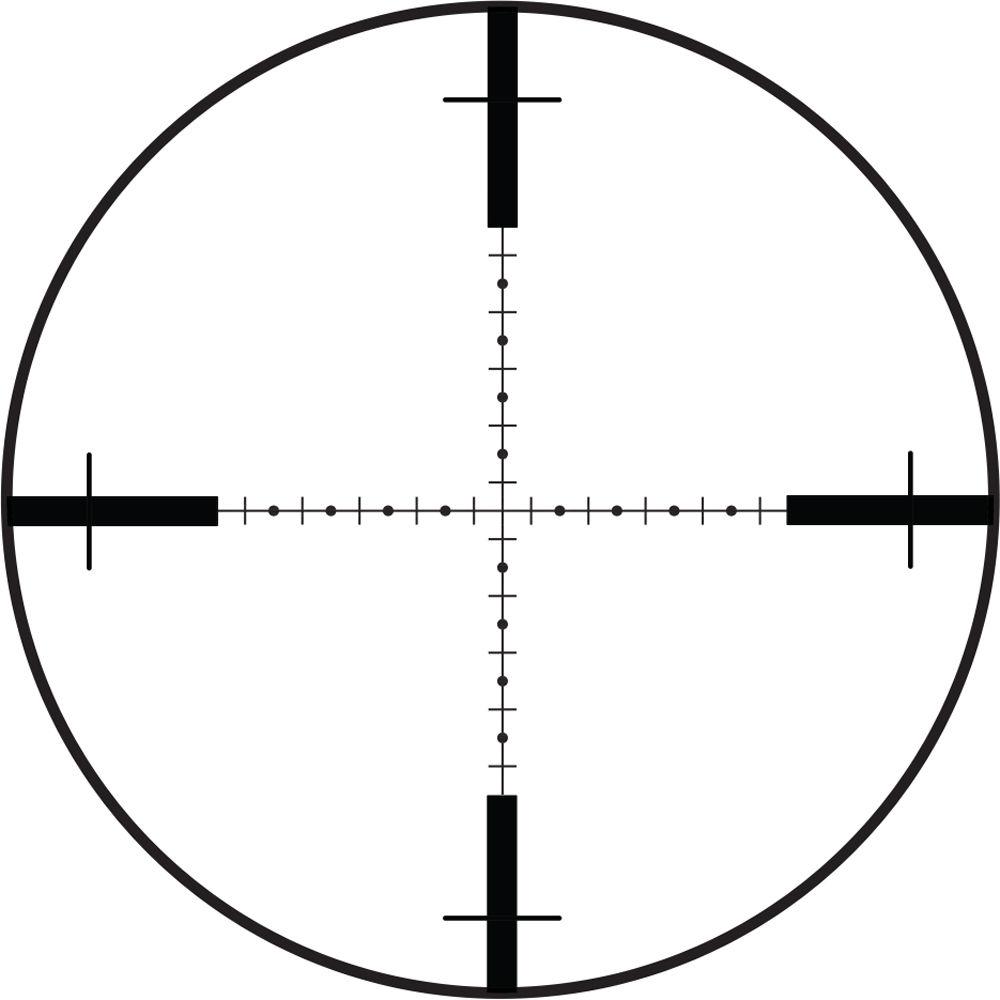

- Illuminated G2B Mil-Dot Reticle
-
- 1st focal plane
- Mil-based modified duplex style
- Four bold posts, milling crosshair with dots and hash marks
- Illumination center area
- Eleven brightness levels
- Ideal for mid-to-long-range tactical shooting
- Parallax correction from 50 yd to infinity
- Use and Handling
-
- 1/10 MIL impact point correction
- 110 MOA elevation adjustment range
- 55 MOA windage adjustment range
- Exit pupil: 11.0 - 3.3mm
- Eye relief: 3.5 - 4.25"
- Construction Details
-
- 6061-T6 aluminum
- 34mm single-piece maintube
- XT-100 graduated, finger-operated turrets allow 10 MIL per rotation
- Side focus parallax correction knob
- Zero Click Stop adjustments allow to revert to zero quickly and easily
- Burris' triple internal spring-tension system holds zeros through heavy recoil and impact
- Corrosion-resistant anodized finish
- Knurled zoom eyepiece for easy adjustments
- Nitrogen-filled, fogproof
- Waterproof, O-ring sealed
In the Box Burris Optics 3-15x50 XTR II Side Focus Riflescope (Illuminated G2B Mil-Dot Reticle, Matte Black) CR-2032 Battery 2 x Lens Covers Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 3-15x50 XTR II Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 201033 Specs | | | Magnification | 3 to 15x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 36' @ 100 yd / 12 m @ 100 m
15x: 7.5' @ 100 yd / 2.5 m @ 100 m | | Exit Pupil Diameter | 3x: 11 mm
15x: 3.3 mm | | Eye Relief | 3.5 to 4.2" / 88.9 to 108 mm | | | | Reticle Type | G2B MIL Dot Reticle (First Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/10 MIL per Click | | Windage Adjustment | 55 MOA | | Elevation Adjustment | 110 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.1" / 35.8 cm | | Weight | 30.9 oz / 876 g |
