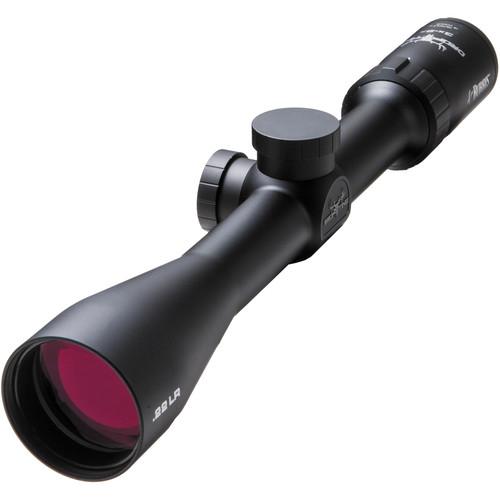

User Manual for Burris Optics 3-9x40 DropTine Riflescope Click to enlarge the picture
Contents of the user manual for the Burris Optics 3-9x40 DropTine Riflescope
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
|
User manual for the Burris Optics 3-9x40 DropTine Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|
Product description The 3-9x40 DropTine Riflescope from Burris Optics is a versatile, general-purpose scope for medium to long-range use. With anti-reflection Hi-Lume multicoated optics, views through it are bright and clear, even in low-light conditions, with high contrast and true color representation. Precise 1/4 MOA per click shot correction helps you get on-target faster, and its 50 MOA windage/elevation adjustment range will allow you to compensate for most conditions and terrain.The DropTine scope employs the Ballistic Plex 22LR reticle, placed on the second (rear) focal plane. This is a modified duplex crosshair-style reticle with medium-thick posts that sharply taper to thin center hairs. The lower vertical axis has a short post, and the long hair features dots for ballistic drop compensation for .22 caliber long rifles out to 500 yards - Optical Performance
-
- 3-9x zoom magnification
- 40mm diameter objective lens
- Anti-reflection Hi-Lume multicoated optics for reduces glare and increases light transmission for bright and clear images with high contrast and true color transmission
- 33-13' field of view at 100 yd
- Ballistic Plex 22LR Reticle
-
- Reticle placed on the rear (second) focal plane
- Modified duplex crosshair-style reticle
- Designed for use with .22 caliber long rifles
- Lower vertical axis has a short post, and extended hair with dots to mark the specific ballistic-drop of .22 rounds out to 500 yards
- Use and Handling
-
- 1/4 MOA per click impact point correction
- 50 MOA windage/elevation adjustment range
- Capped low-profile turrets can be re-zeroed after initial sighting
- Fast focus eyepiece with up to 3.8" eye relief
- Construction Details
-
- Aluminum housing, with 1" one-piece main-tube
- Scratch and corrosion-resistant matte-black anodized finish
- Nitrogen-filled for water and fogproof performance
- Double-spring tensioned for shock and recoil resistance
UPC: 000381000194 In the Box Burris Optics 3-9x40 DropTine Riflescope (Ballistic Plex 22LR Reticle) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 3-9x40 DropTine Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200019 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 33' @ 100 yd / 11 m @ 100 m
12x: 13' @ 100 yd / 4.3 m @ 100 m | | Exit Pupil Diameter | 3x: 13 mm
9x: 5 mm | | Eye Relief | 3.1 to 3.8" / 79 to 97 mm | | | | Reticle Type | Ballistic Plex 22LR Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 50 MOA | | Elevation Adjustment | 50 MOA | | Parallax Correction | No | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12.2" / 30.9 cm | | Weight | 13 oz / 368.5 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 13.3 x 3.5 x 2.4" |
