User Manual for Burris Optics 3-9x40 Fullfield II Riflescope Click to enlarge the picture
Contents of the user manual for the Burris Optics 3-9x40 Fullfield II Riflescope
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
|
User manual for the Burris Optics 3-9x40 Fullfield II Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|

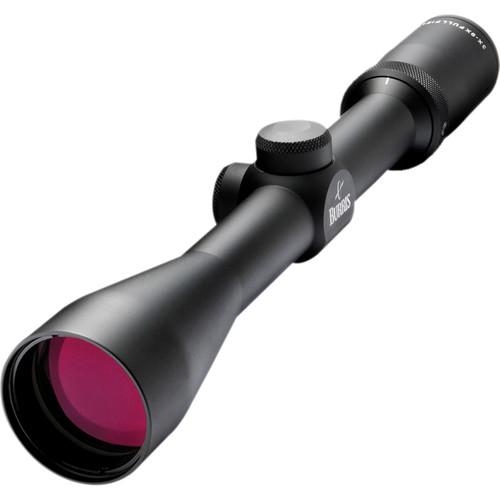

Product description The matte black 3-9x40 Fullfield II Riflescope from Burris Optical is designed for medium to long-distance use in the field or at the range. Its optical system uses index-matched Hi-Lume multicoated lenses with a very functional 40mm objective lens to produces views that are bright and clear with high contrast and true color representation, even in low-light. The covered targeting turrets make accurate adjustments easy, and with the Zero Click Stop system, there is no need to count clicks to return to zero after making temporary adjustments. To get you on-target, the turrets have 1/4 MOA per click adjustment and a total range of 50 MOA.Its Plex duplex crosshair reticle features thick posts that are easy to see in low light. The posts taper to points that lead the eye to the thin center hairs. These provide a precise aiming point without obstructing the view of the target. Built for use in the field, the aluminum housing has a matte black corrosion and scratch-resistant finish, and is nitrogen filled for water and fogproof performance. - Optical Performance
-
- 3x - 9x magnification
- 40mm objective lens
- Index-matched, Hi-Lume multicoated lenses provide increased target resolution, contrast, and low-light performance
- 33 - 13' @ 100 yd / 11 - 4.3 m @ 100 m field of view
- Plex Reticle
-
- Non-illuminated crosshair
- Thick posts are easily visible, even in low light
- Thin hairs provide precision aiming point without obstructing target
- Reticle placed on rear (second) focal plane
- Use and Handling
-
- 1/4 MOA per click impact point correction
- 50 MOA windage and elevation adjustment
- Capped adjustment turrets can be reset to zero after initial sighting
- Parallax free under 100 yards
- 3.8" maximum eye relief
- Construction Details
-
- Aluminum housing with 1" one-piece main-tube
- Scratch and corrosion-resistant matte black anodized finish
- Nitrogen-filled, water and fogproof
- All internal assemblies are triple-spring tensioned for shock-proof performance
- Knurled turret and focus knobs for easy adjustments in cold and wet weather
UPC: 000381001610 In the Box Burris Optics 3-9x40 Fullfield II Riflescope (Plex Reticle - Matte Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 3-9x40 Fullfield II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200161 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 1.5x: 33' @ 100 yd / 11 m @ 100 m
6x: 13' @ 100 yd / 4.3 m @ 100 m | | Exit Pupil Diameter | 3x: 13 mm
9x: 5 mm | | Eye Relief | 3.1 to 3.8" / 79 to 97 mm | | | | Reticle Type | Plex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 50 MOA | | Elevation Adjustment | 50 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12.2" / 31 cm | | Weight | 13 oz / 368.5 g |
