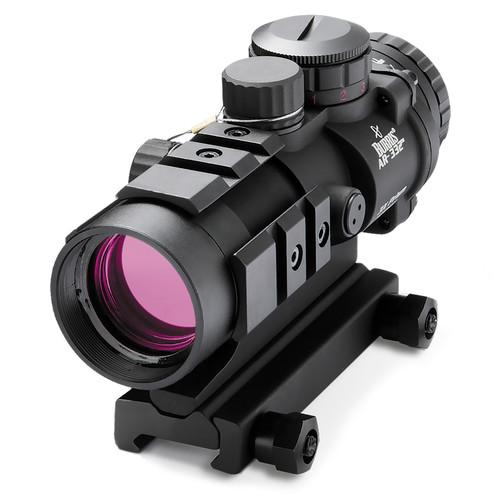

User Manual for Burris Optics 3x32 AR-332 Red Dot Sight Click to enlarge the picture
Contents of the user manual for the Burris Optics 3x32 AR-332 Red Dot
- Product category: Red Dot/Holographic Sights Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Red Dot/Holographic Sights
|
User manual for the Burris Optics 3x32 AR-332 Red Dot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|
Product description The 3x32 AR-332 Red Dot Sight from Burris Optics is designed as a 3x magnification optical sight with a Ballistic CQ 5.56 black reticle that features red and green illumination with 5 brightness settings for each color. The reticle dots correspond to bullet drop from 5.56 or 7.62 rounds. The optics are anti-reflective and fully multicoated and the reticle is etched directly onto the prism. The illuminated sight is powered by a CR 2032 battery and comes ready to be mounted on a Picatinny rail system. - Optical Performance
-
- 3x magnification
- Anti-reflective fully multicoated optics minimizes light loss, and maximizes contrast and color transmission
- Ballistic CQ 5.56 Reticle
-
- Close quarters (CQ) reticle is optimized for 5.56/7.62 rounds
- Outer donut for fast close quarter target acquisition and tracking
- Horizontal and upper vertical posts with a center dot
- Ballistic-drop compensation dots on lower vertical axis for elevation adjustments out to 600 yd
- Use and Handling
-
- Red/Green illuminated reticle with 5 brightness settings
- 1/2 MOA per click impact point correction
- 60 MOA windage and elevation adjustment range
- Picatinny rail mount
- Construction Details
-
- Single-piece aluminum housing
- Nitrogen-filled, waterproof
- Low-glare, scratch and corrosion-resistant matte-black anodized finish
- 1.6" height above rail to optic centerline
- Comes with 2.5" sunshade and flip-up lens covers
UPC: 000381302083 In the Box Burris Optics 3x32 AR-332 Red Dot Sight (Ballistic CQ 5.56 Reticle) CR2032 Battery 2.5" Sunshade Flip-up Lens Covers Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 3x32 AR-332 Red Dot Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics AR-332 Specs | | | Reticle | Ballistic CQ | | Eye Relief | 64 mm | | Power Source | 1 x CR2032 | | Runtime | 500 Hours | | | | Magnification | 3 x | | Field of View | 32' @ 100 yd / 10.6 m @ 100 m | | Minimum Focus Distance | 9' / 2.7 m | | | | Impact Point Correction | 1/2 MOA | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | Dimensions | L: 5.3" / L: 13.5 cm | | Weight | 14.2 oz / 402.6 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 8.6 x 4.3 x 2.8" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 00 owners. Add your rating and experience with the product.
