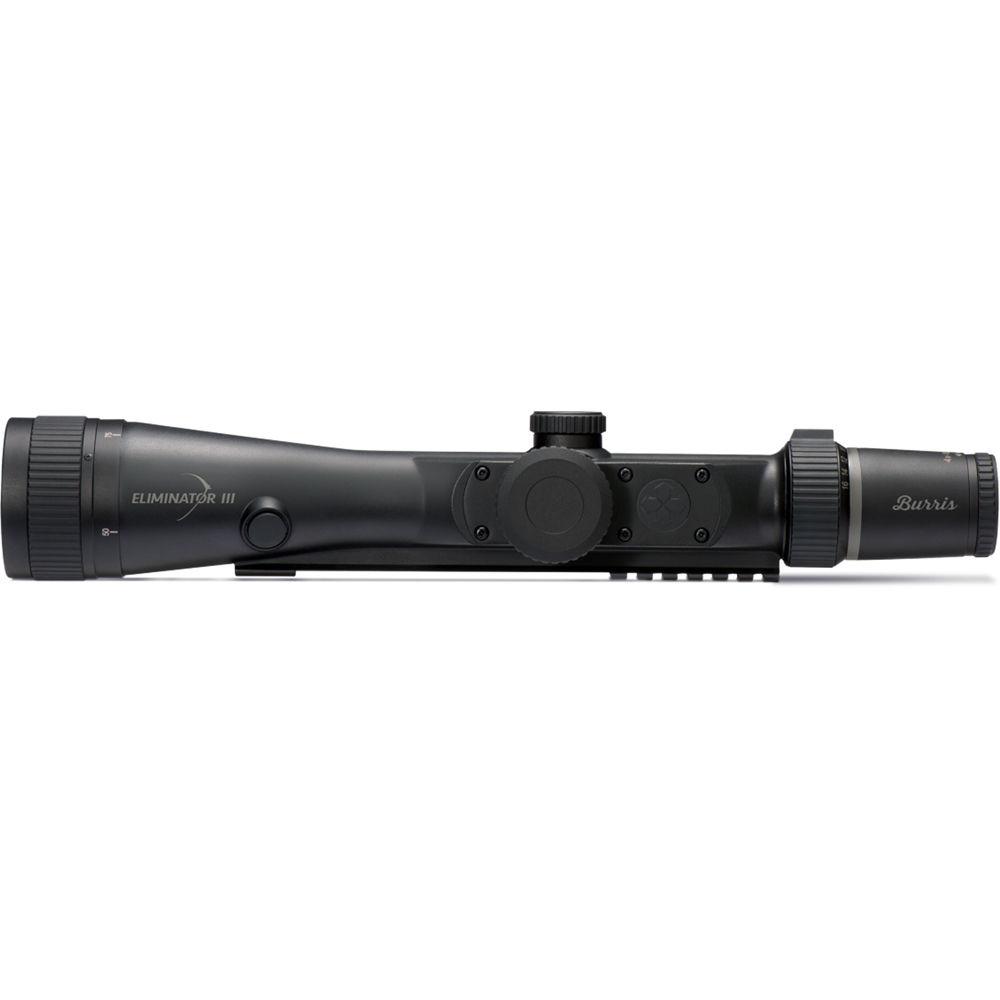

Product description When every second counts the Burris Optics 4-16x50 Eliminator III Laser Rangefinder Riflescope eliminates the need to waste time switching between your rangefinder and rifle - just tap, adjust your aim, and pull the trigger. Optically, it is outfitted with a wide and versatile zoom range and an objective that has excellent low-light capabilities for accurate target identification at dawn and dusk, or under a heavy canopy. Index matched, multi-coated optics further boost the low-light abilities while also improving color rendition and contrast.The laser rangefinder accurately ranges targets from 50 to 1200 yards, and is complemented with a built-in inclinometer that measures the upward or downward angle relative to the target. A bullet drop compensation system that uses the measured range, angle, and the user-inputted information on the cartridge in use, to activate and illuminate a adjusted aim point on the reticle. The scope can be programmed for hundreds of commercial loads or, if shooting custom rounds, users may choose a commercial load with specs most closely matching the custom rounds.Designed to withstand the rigors of the wild, the housing is made of durable and lightweight 6061 T6 aluminum with a scratch and corrosion-resistant matte-black anodized finish. Its one-piece main-tube is nitrogen-filled and O-ring sealed to give it waterproof and fogproof performance. For a solid connection, the scope mounts on standard Picatinny/Weaver rail systems. This version of the Eliminator replaces the fixed switch previously located on the housing behind the objective bell with a remote pressure pad switch and coiled cable to eliminate the need to move the support hand off the rifle to activate the rangefinder. - Optical Performance
-
- 4-16x zoom magnification
- 50mm objective lens
- Index-matched, Hi-Lume multi-coated optics
- Increases light transmission
- Improves color rendition and contrast
- Reduces glare
- 26-7' field of view at 100 yards
- 3.5-4" eye relief
- 12.5-3.1mm exit pupil
- Rangefinder
-
- Class 1 eye-safe IR laser
- Effective range:
- Deer: 50-750 yards
- Reflective target: 50-1,200 yards
- Ranging accuracy:
- <100 yd: ±1 yd
- 100-550 yd: ±2 yd
- 550+ yd: ±3 yd
- Measures distance in yards or meter
- Runs on one included CR123A battery
- X96 Reticle
-
- Partially-illuminated
- Five selectable brightness settings
- Crosshairs with dots for windage and BDC adjustments
- Illuminated dots automatically illuminated to show proper aiming point
- Non-illuminated Windage offset dots further improves accuracy
- Reticle placed on the rear (second) focal plane
- Parallax-free out to 50 yards
- Technologies
-
- Built-in inclinometer
- Measures upward or downward angle relative to target
- Measures angles up to ±45°, relative
- Ballistic compensation algorithm:
- Uses range, angle and ammo to provide an adjusted range
- Illuminates the appropriate BDC aiming point on reticle
- Program ammo load for improved ballistic drop compensation calculation
- Designed for use with centerfire rifles only
- Programming saves in memory and is retained when changing batteries
- Adjusts aiming point for magnification scope is set to
- Displays an error if the range measured is further than the ammunition's maximum effective distance
- Use and Handling
-
- Turrets
- Capped to prevent dirt and mud from entering mechanism
- Caps also prevent accidental adjustments when moving through dense brush
- Resettable to zero after initial sighting
- 1/8 MOA per click shot compensation
- ±20 MOA windage/elevation adjustment range
- Adjustable objective parallax correction
- In-view LED display shows adjusted aiming point, range, battery status, and windage hold-off
- Activation

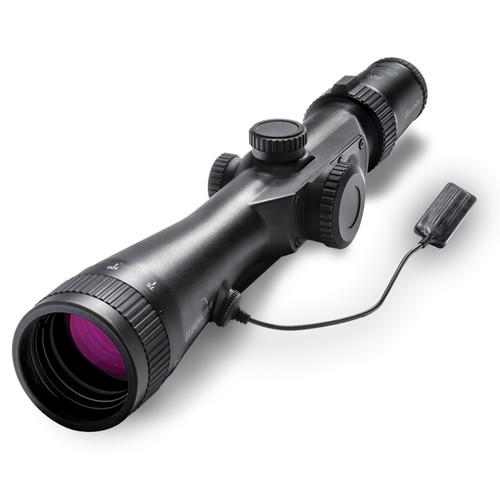

- Remote pressure switch with coiled connector cable
- Enables activation without moving support hand from rifle
- Reticle brightness and set-up buttons discreetly placed out of the way
- Construction Details
-
- Mount
- Integrated 8.5" Picatinny/Weaver rail
- No rings required
- 6061 T-6 aluminum housing
- One-piece main-tube
- Scratch and corrosion-resistant matte-black anodized finish
- Nitrogen-filled, water and fogproof
- Double, internal-spring tension system holds zero through shock, recoil, and vibrations
- Weight: 30.4 ounces, including mount and battery
UPC: 000381001191 In the Box Burris Optics 4-16x50 Eliminator III Laser Rangefinder/Riflescope (X96 Reticle, Remote Switch) CR123A Battery 3 x Front Mounting Plates Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 4-16x50 Eliminator III Laser Rangefinder Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200119 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 50 mm | | Field of View | 4x: 26' @ 100 yd / 8.6 m @ 100 m
16x: 7' @ 100 yd / 2.3 m @ 100 m | | Exit Pupil Diameter | 4x: 12.5 mm
16x: 3.1 mm | | Eye Relief | 3.5 to 4" / 88.9 to 101.6 mm | | | | Reticle Type | X96 Duplex Ranging Reticle (Second Focal Plane) | | | | Laser Type | Class 1 Eye Safe | | Metering Range | 50 to 1200 yd / 46 to 1100 m | | Accuracy | <100 yd / 91 m:
