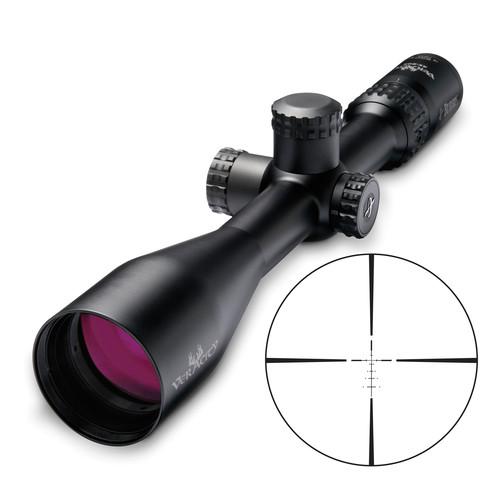

User Manual for Burris Optics 4-20x50 Veracity Riflescope Click to enlarge the picture
Contents of the user manual for the Burris Optics 4-20x50 Veracity Riflescope
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
|
User manual for the Burris Optics 4-20x50 Veracity Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|
Product description Burris Optics combines state-of-the-art engineering with refinements for accuracy in the 4-20x50 Veracity Riflescope. This riflescope is optimized for hunting prairie predators, elk, or dangerous game. The optical system offers bright and clear images, with high contrast and true colors, thanks to the indexed-matched multi-coated optics. To compensate for wind and ballistics you have adjustable windage and elevation and a 1/4 MOA impact point correction.
One of the central features of this optic is the Ballistic Plex E1 FFP Varmint Reticle. It is located in the first focal plane and allows you to estimate accurate ranges, ballistic drop, and windage at any magnification with its system of reference points. The reticle features four medium posts, thin crosshair, and cascading dots for quick windage compensation. This pattern is designed to provide you with ultra-fast aiming at any range and high visibility in low-light conditions.
The housing is made of lightweight and durable aluminum with a corrosion-resistant anodized finish. It features a 30mm single-piece maintube for resistance to shock and recoil, nitrogen filling for fog proofing, and O-rings for waterproof performance. The fast focus eyepiece's zoom ring and adjustment turrets and rings feature heavy knurling for improved tactile traction and non-slip operation in all weather conditions. - Ballistic Plex E1 FFP Varmint Reticle
-
- Crosshair-style
- 1st focal plane
- Maintains ranging proportions with zoom
- Vertical hash-marks for ballistic drop out to 700 yd
- Windage cascading dots are calibrated for 10 mph winds
- Optical Performance
-
- 4-20x magnification
- 50mm objective lens
- Index-matched Hi-Lume multiple anti-reflection coatings:
- Increase transmission
- Deliver bright and clear images
- Ensure low-light performance
- Linear field of view: 26-5.5' at 100 yd
- Use and Handling
-
- 1/4 MOA impact point correction
- 40 MOA windage range
- 70 MOA elevation range
- Construction Details
-
- 30mm single-piece maintube
- Lightweight aluminum housing
- Corrosion-resistant anodized finish
- Side focus parallax correction turret
- Fast focus eyepiece with 4.3" eye relief
- Tall capped knurled windage and elevation turrets
- Zero Click Stop function
- Nitrogen-filled, fogproof
- Waterproof, sealed with O-rings
UPC: 000381006400 Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 4-20x50 Veracity Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 200640 Specs | | | Magnification | 4 to 20x | | Objective Lens Diameter | 50 mm | | Field of View | 4x: 26' @ 100 yd / 8.7 m @ 100 m
20x: 5.5' @ 100 yd / 1.8 m @ 100 m | | Exit Pupil Diameter | 4x: 12 mm
20x: 2.5 mm | | Eye Relief | 3.5 to 4.3" / 89 to 108 mm | | | | Reticle Type | Ballistic E1 Varmint Reticle (First Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 70 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 15" / 36.1 cm | | Weight | 27.2 oz / 771.1 g |
