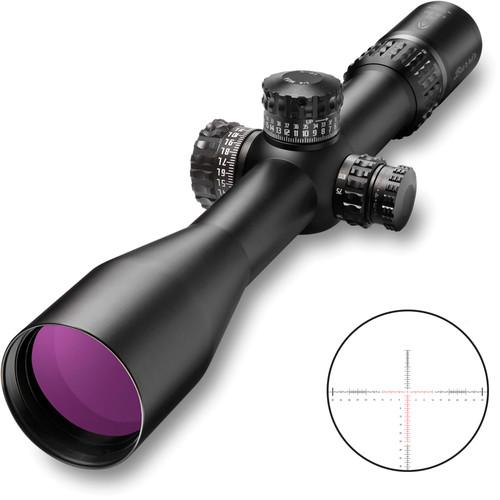

User Manual for Burris Optics 4-20x50 XTR II Riflescope Click to enlarge the picture
Contents of the user manual for the Burris Optics 4-20x50 XTR II Riflescope
- Product category: Riflescopes Burris Optics
- Brand: Burris Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Burris Optics Riflescopes
|
User manual for the Burris Optics 4-20x50 XTR II Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Burris Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Burris Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Burris Optics product will considerably shorten its lifespan!
|
Product description Gain a tactical advantage with Burris Optics' 4-20x50 XTR II Side Focus Riflescope. This riflescope is intended for tactical and competitive long-range shooters and represents a robust, precise optic with a 5x optical system and a thicker maintube (25%) than the original XTR riflescope. The lenses feature index-matched fully multi-coated surfaces that deliver great clarity and visibility in most lighting or environmental conditions. In addition to excellent image quality, this optic provides a generous maximum eye relief of 4.25", windage and elevation ranges, and an illuminated SCR MOA reticle. This 1st focal plane reticle features a MOA-based modified German 4 style. It has a full field milling crosshair with an illuminated T-shaped central portion. It is intended for engaging targets at long distances and in low-light conditions.
Designed for a lifetime of service, the 6061-T6 aluminum housing (with a single-piece 34mm maintube) is waterproof, fogproof, and shock-resistant. Featuring Burris' triple internal spring-tension system, it will hold zeros through hard recoil and impact. Also, noteworthy, are its graduated and finely knurled XT-100 windage and elevation turrets that allow 25 MOA per revolution and Zero Click Stop technology that allows a quick and easy return to zero. To improve aiming precision by removing ambiguity, the side focus parallax corrector offer a range from 50 yd to infinity. - Optical Performance
-
- 5x optical system, resulting in a 4 - 20x total zoom
- 50mm objective delivers bright images even in low light
- High-grade optical glass provides excellent brightness and clarity with lasting durability
- Index-matched, fully multi-coated optics increase transmission and reduce glare
- Linear field of view: 25.8 - 5.4' at 100 yd
- Illuminated SCR MOA Reticle
-
- 1st focal plane
- Intended for long-range competitions
- Full-field MOA-based milling crosshair
- Illuminated T-shaped center area
- Eleven brightness levels
- Parallax correction from 50 yards to infinity
- Use and Handling
-
- 55 MOA windage range
- 90 MOA elevation range
- 1/4 MOA impact point correction
- Eye relief: 3.5 - 4.2"
- Exit pupil: 11.0 - 2.5 mm
- Construction Details
-
- 6061-T6 aluminum
- 34mm single-piece maintube
- XT-100 graduated, finger-operated turrets allow 25 MOA per rotation
- Side focus parallax correction knob also contains a reticle brightness adjuster
- Zero Click Stop adjustments allow to revert to zero quickly and easily
- Burris triple internal spring-tension system holds zeros through heavy recoil and impact
- Corrosion-resistant anodized finish
- Knurled zoom eyepiece for easy adjustments
- Nitrogen-filled, fogproof
UPC: 000381010438 In the Box Burris Optics 4-20x50 XTR II Riflescope (Illuminated SCR MOA Reticle, Matte Black) - CR-2032 Battery
- 2 x Protective Lens Covers
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Burris Optics 4-20x50 XTR II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBurris Optics 201043 Specs | | | Magnification | 4 to 20x | | Objective Lens Diameter | 50 mm | | Field of View | 4x: 25.8' @ 100 yd / 8.6 m @ 100 m
20x: 5.4' @ 100 yd / 1.8 m @ 100 m | | Exit Pupil Diameter | 4x: 11 mm
20x: 2.5 mm | | Eye Relief | 3.5 to 4.2" / 88.9 to 108 mm | | | | Reticle Type | SCR MOA Reticle (First Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 55 MOA | | Elevation Adjustment | 90 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.9" / 37.8 cm | | Weight | 30.9 oz / 876 g | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 17.4 x 4.8 x 4.1" |
